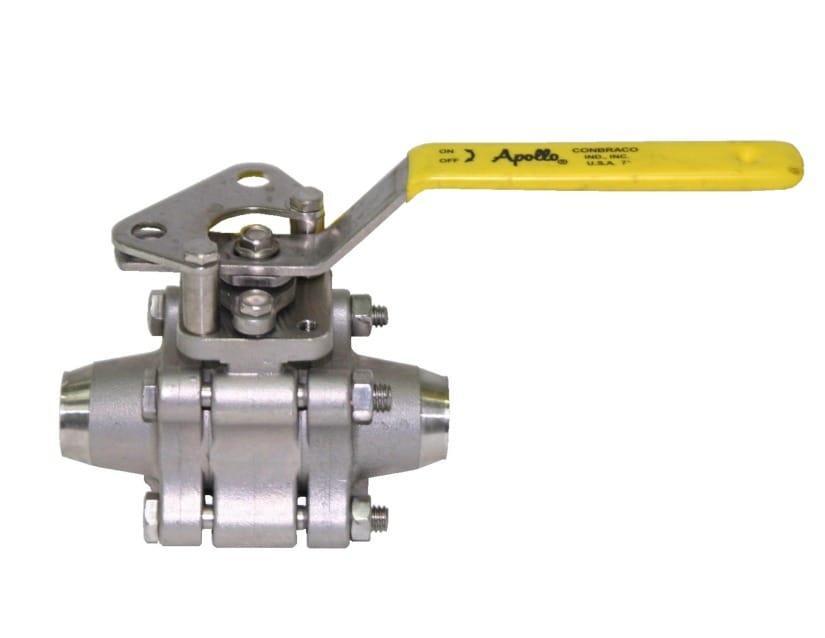

Apollo™ 86B-503-01 86B-500 3-Piece Ball Valve With Enclosed Fasteners, 1/2 in Nominal, Butt Weld End Style, 600 lb, Stainless Steel Body, Full Port, PTFE Softgoods, Domestic
CBPN: 194447
UPC:670750089251
MPN:86B-503-01
Price:
$428.14 / EA
Prop 65:
DESCRIPTION
Apollo™ 86B50301, Ball Valve, 3-Piece, Series: 86B-500, 1/2 in Nominal, Butt Welded End Style, 1500 psi CWP Pressure, 600 lb Pressure Class, Full Port, 1/2 in Orifice, Lever Operated Actuator, Stainless Steel Ball, 3.8 in Inlet to Outlet Length, 3.02 in Top to Inlet Center, 316 Stainless Steel Trim, PTFE Softgoods, Domestic
Apollo™ 86B-503-01 86B-500 3-Piece Ball Valve With Enclosed Fasteners, 1/2 in Nominal, Butt Weld End Style, 600 lb, Stainless Steel Body, Full Port, PTFE Softgoods, Domestic
CBPN: 194447
MPN:86B-503-01
UPC:670750089251
Price:
$428.14 / EA
Prop 65:
DESCRIPTION
Apollo™ 86B50301, Ball Valve, 3-Piece, Series: 86B-500, 1/2 in Nominal, Butt Welded End Style, 1500 psi CWP Pressure, 600 lb Pressure Class, Full Port, 1/2 in Orifice, Lever Operated Actuator, Stainless Steel Ball, 3.8 in Inlet to Outlet Length, 3.02 in Top to Inlet Center, 316 Stainless Steel Trim, PTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 2.3 lbs
Nominal Size: 1/2 in
End Style: Butt Weld
Pressure Class: 600 lb
Pressure Rating: 1500 psi CWP
Body Material: Stainless Steel
Port Type: Full
Softgoods Material: PTFE
Actuator Type: Lever Operated
Ball Material: Stainless Steel
Inlet to Outlet Length: 3.8 in
Manufacturer Name: Apollo Conbraco
Orifice Size: 1/2 in
Series: 86B-500
Top to Inlet Center: 3.02 in
Trim Material: 316 Stainless Steel
Type: 3-Piece
Includes: Enclosed Fastener
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: API 608 | ASME B16.25/B16.34 | ASTM A351 CF8M Body | ASTM A276 Ball/Stem | CE Marked | NACE MR0175/MR0103 | PROP65: Cancer and Reproductive Harm
Item Features
- Stainless steel trim and hardware
- Swing out center section
- Pressure balanced solid ball
- Compression controlled spiral wound gaskets
- Anti-blowout one piece bottom entry stem
- Statically grounded ball, stem and body
- Two-position locking device
- Adjustable multi-piece PTFE V style packing
- Cast bosses on the center-section and end caps for bleed and drain ports
- Vacuum service to 29 in Hg
- 250 psig saturated steam pressure
- SCH 40/XH butt weld
