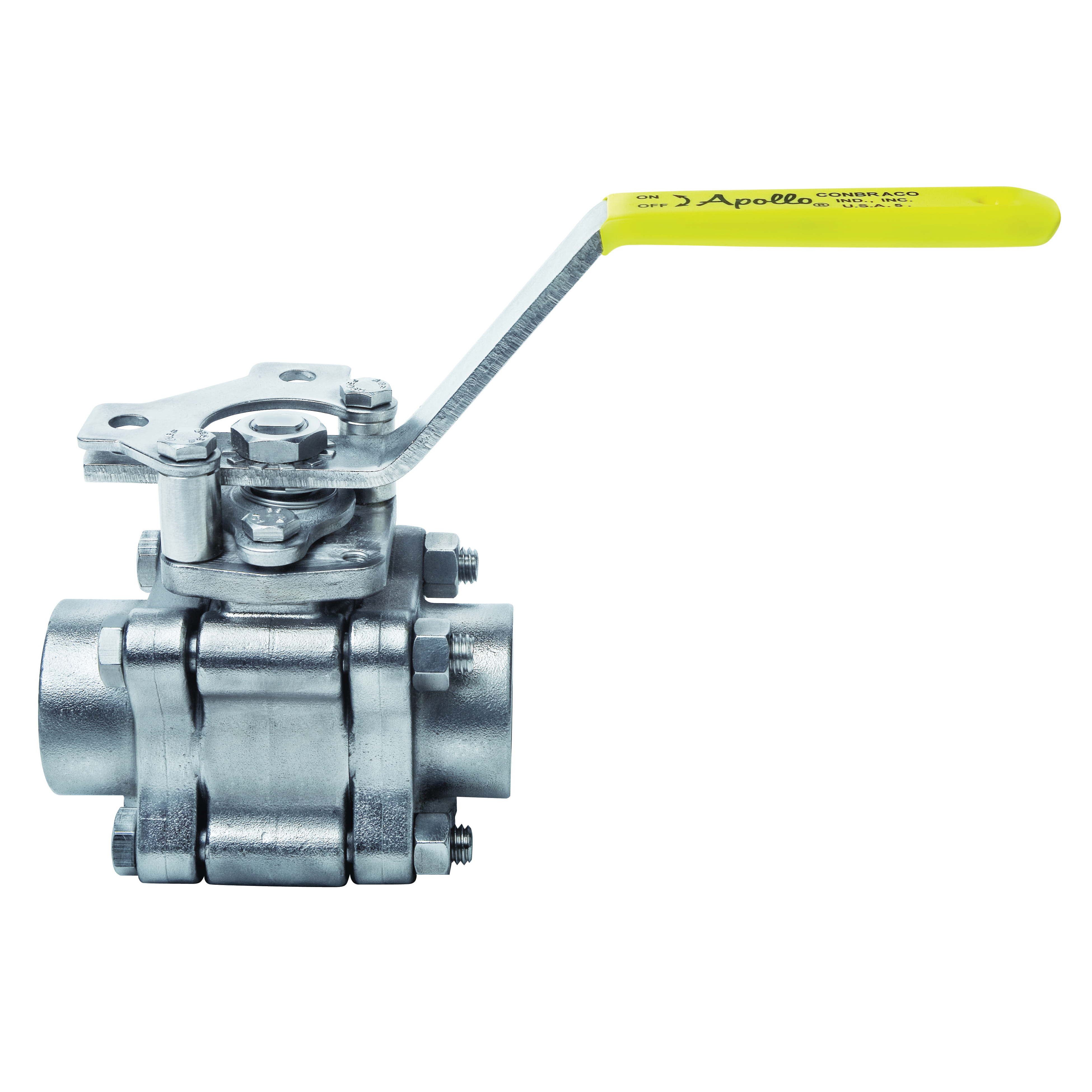

Apollo™ 86B-203-01 86B-200 3-Piece Ball Valve With Enclosed Fasteners, 1/2 in Nominal, Socket Weld End Style, 600 lb, Stainless Steel Body, Full Port, PTFE Softgoods, Domestic
CBPN: 114210
UPC:670750060557
MPN:86B-203-01
Price:
$380.24 / EA
Prop 65:
DESCRIPTION
Apollo™ 86B20301, Ball Valve, 3-Piece, Series: 86B-200, 1/2 in Nominal, Socket Weld End Style, 600 lb Pressure Class, Full Port, Media: Gas/Water, 1/2 in Orifice, Lever Operated Actuator, Stainless Steel Ball, 2.8 in Inlet to Outlet Length, 3.02 in Top to Inlet Center, 316 Stainless Steel Trim, PTFE Softgoods, Domestic
Apollo™ 86B-203-01 86B-200 3-Piece Ball Valve With Enclosed Fasteners, 1/2 in Nominal, Socket Weld End Style, 600 lb, Stainless Steel Body, Full Port, PTFE Softgoods, Domestic
CBPN: 114210
MPN:86B-203-01
UPC:670750060557
Price:
$380.24 / EA
Prop 65:
DESCRIPTION
Apollo™ 86B20301, Ball Valve, 3-Piece, Series: 86B-200, 1/2 in Nominal, Socket Weld End Style, 600 lb Pressure Class, Full Port, Media: Gas/Water, 1/2 in Orifice, Lever Operated Actuator, Stainless Steel Ball, 2.8 in Inlet to Outlet Length, 3.02 in Top to Inlet Center, 316 Stainless Steel Trim, PTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 2.3 lbs
Nominal Size: 1/2 in
End Style: Socket Weld
Pressure Class: 600 lb
Body Material: Stainless Steel
Port Type: Full
Softgoods Material: PTFE
Actuator Type: Lever Operated
Ball Material: Stainless Steel
Inlet to Outlet Length: 2.8 in
Manufacturer Name: Apollo Conbraco
Media: Gas/Water
Orifice Size: 1/2 in
Series: 86B-200
Top to Inlet Center: 3.02 in
Trim Material: 316 Stainless Steel
Type: 3-Piece
Includes: Enclosed Fastener
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: API 608 | ASME B16.11/B16.34 | ASTM A351 CF8M Body | ASTM A276 Ball/Stem | CE Marked | CGA 3.16-M88 | NACE MR0175/MR0103 | PROP65: Cancer and Reproductive Harm
Item Features
- Swing out center section
- Pressure balanced solid ball
- Compression controlled spiral wound gaskets
- Anti-blowout one piece bottom entry stem
- Statically grounded ball, stem and body
- Two-position locking device
- Adjustable multi-piece PTFE V style packing
- Cast bosses on the center-section and end caps for bleed and drain ports
- Vacuum service to 29 in Hg
- CE mark, 1-1/4 in and larger
- 250 psig saturated steam pressure/spiral wound gasket
