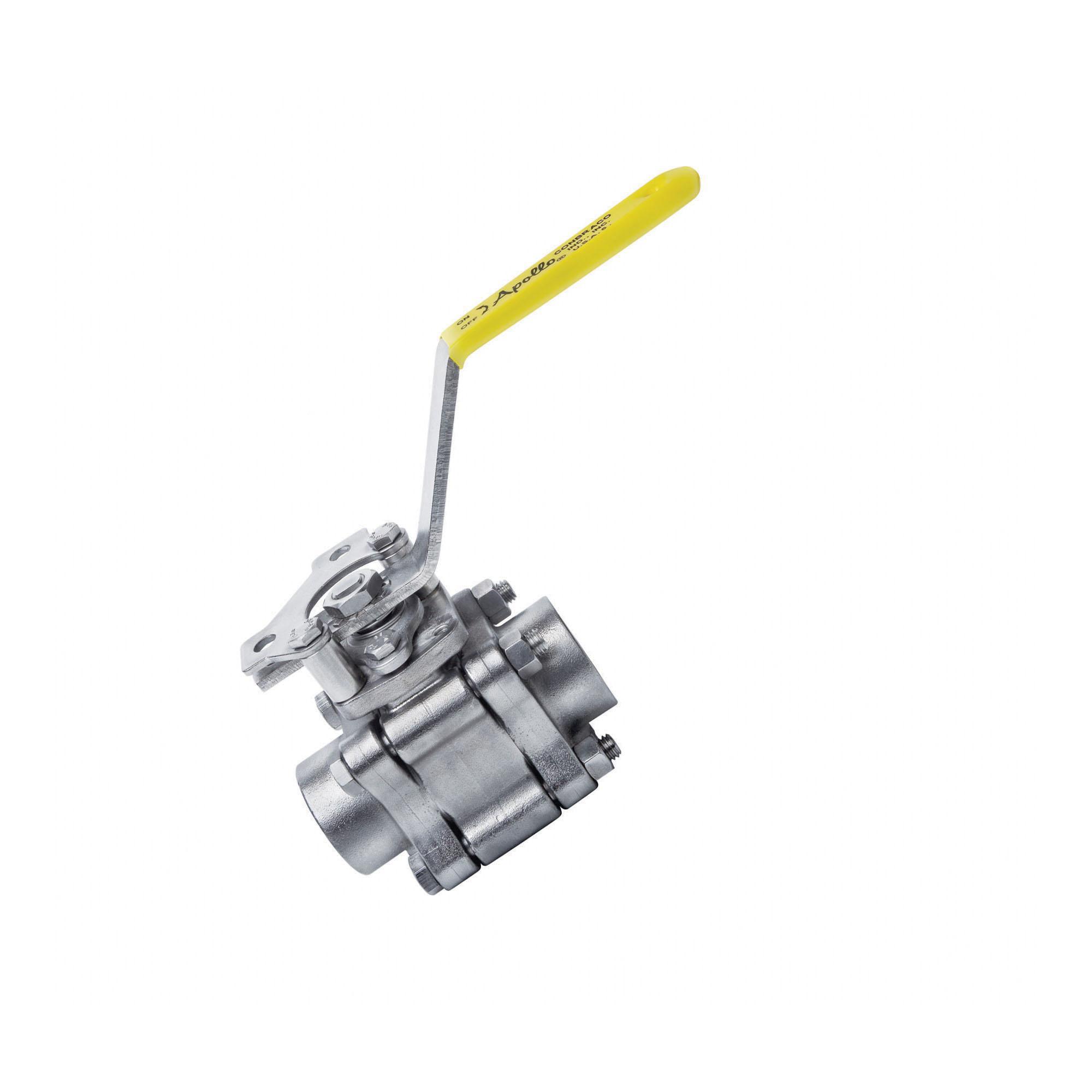

Apollo™ 86B10201 86B-100 3-Piece Ball Valve, 3/8 in Nominal, FNPT End Style, 600 lb, Full Port, PTFE Softgoods, Domestic
CBPN: 224212
UPC:670750089008
MPN:86B-102-01
Price:
$358.13 / EA
Prop 65:
DESCRIPTION
Apollo™ 86B10201, Ball Valve, 3-Piece, Series: 86B-100, 3/8 in Nominal, NPT End Style, 250 psi SWP Pressure, 600 lb Pressure Class, Full Port, Lever Operated Actuator, Stainless Steel Ball, 2.8 in Inlet to Outlet Length, 3.02 in Top to Inlet Center, 316 Stainless Steel Trim, PTFE Softgoods, Domestic
Apollo™ 86B10201 86B-100 3-Piece Ball Valve, 3/8 in Nominal, FNPT End Style, 600 lb, Full Port, PTFE Softgoods, Domestic
CBPN: 224212
MPN:86B-102-01
UPC:670750089008
Price:
$358.13 / EA
Prop 65:
DESCRIPTION
Apollo™ 86B10201, Ball Valve, 3-Piece, Series: 86B-100, 3/8 in Nominal, NPT End Style, 250 psi SWP Pressure, 600 lb Pressure Class, Full Port, Lever Operated Actuator, Stainless Steel Ball, 2.8 in Inlet to Outlet Length, 3.02 in Top to Inlet Center, 316 Stainless Steel Trim, PTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 2.3 lbs
Nominal Size: 3/8 in
End Style: FNPT
Pressure Class: 600 lb
Pressure Rating: 250 psi SWP
Body Material: Stainless Steel
Port Type: Full
Softgoods Material: PTFE
Actuator Type: Lever Operated
Ball Material: Stainless Steel
Inlet to Outlet Length: 2.8 in
Manufacturer Name: Apollo Conbraco
Series: 86B-100
Top to Inlet Center: 3.02 in
Trim Material: 316 Stainless Steel
Type: 3-Piece
Includes: Enclosed Fastener
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASME B1.20.1/B16.34 | ASTM A351 CF8M Body | ASTM A276 Ball/Stem | CE Marked | NACE MR0175/MR0103 | PROP65: Cancer and Reproductive Harm
Item Features
- 01 - Standard Configuration
- Stainless steel trim and hardware
- Swing out center section
- Pressure balanced solid ball
- Compression controlled spiral wound gaskets
- Anti-blowout one piece bottom entry stem
- Statically grounded ball, stem and body
- Two-position locking device
- Adjustable multi-piece PTFE V style packing
- Cast bosses on the center-section and end caps for bleed and drain ports
- Vacuum service to 29 in Hg
- 1-1/4 in and larger
- 250 psig saturated steam pressure/spiral wound gasket
Apollo 86B-102-01 Spare Parts
CBPN:
201962
MPN:
83B00301
Check Availability
Price:
$144.33 / EA
