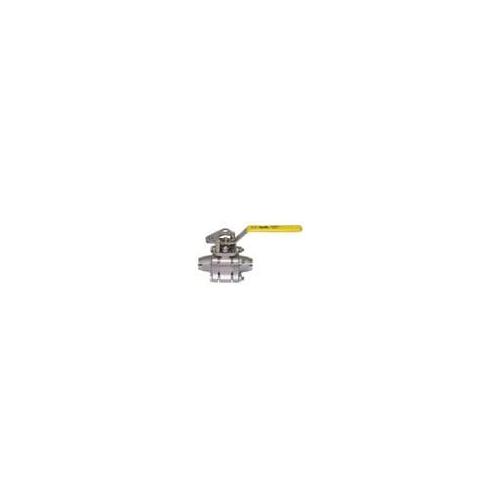

Apollo™ 86A-508-01 86A-500 3-Piece Ball Valve With Enclosed Fasteners, 2 in Nominal, Butt Weld End Style, Stainless Steel Body, Full Port, RPTFE/PTFE Softgoods, Domestic
CBPN: 127527
UPC:670750190056
MPN:86A-508-01
Price:
$1361.62 / EA
Prop 65:
DESCRIPTION
Apollo™ 86A50801, Ball Valve, 3-Piece, Series: 86A-500, 2 in Nominal, Butt Welded End Style, 1500 psi CWP Pressure, Full Port, Media: Gas/Water, 2 in Orifice, Lever Operated Actuator, Stainless Steel Ball, 6.84 in Inlet to Outlet Length, 5.47 in Top to Inlet Center, 316 Stainless Steel Trim, PTFE/RPTFE Softgoods, Domestic
Apollo™ 86A-508-01 86A-500 3-Piece Ball Valve With Enclosed Fasteners, 2 in Nominal, Butt Weld End Style, Stainless Steel Body, Full Port, RPTFE/PTFE Softgoods, Domestic
CBPN: 127527
MPN:86A-508-01
UPC:670750190056
Price:
$1361.62 / EA
Prop 65:
DESCRIPTION
Apollo™ 86A50801, Ball Valve, 3-Piece, Series: 86A-500, 2 in Nominal, Butt Welded End Style, 1500 psi CWP Pressure, Full Port, Media: Gas/Water, 2 in Orifice, Lever Operated Actuator, Stainless Steel Ball, 6.84 in Inlet to Outlet Length, 5.47 in Top to Inlet Center, 316 Stainless Steel Trim, PTFE/RPTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 27.6 lbs
Nominal Size: 2 in
End Style: Butt Weld
Pressure Rating: 1500 psi CWP
Body Material: Stainless Steel
Port Type: Full
Softgoods Material: PTFE/RPTFE
Actuator Type: Lever Operated
Ball Material: Stainless Steel
Inlet to Outlet Length: 6.84 in
Manufacturer Name: Apollo Conbraco
Media: Gas/Water
Orifice Size: 2 in
Series: 86A-500
Top to Inlet Center: 5.47 in
Trim Material: 316 Stainless Steel
Type: 3-Piece
Includes: Enclosed Fastener
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASME B16.25 | ASTM A351 CF8M Body | ASTM A276 Ball/Stem | MSS SP-25/SP-110 | NACE MR0175/MR0103 | PROP65: Cancer and Reproductive Harm
Item Features
- Stainless steel trim and hardware
- Swing out center section
- Pressure balanced solid ball
- Compression controlled RPTFE gaskets
- Anti-blowout one piece bottom entry stem
- Two-position locking device
- Adjustable multi-piece PTFE V style packing
- Cast bosses on the center-section and end caps for bleed and drain ports
- Vacuum service to 29 in Hg
- 150 psig saturated steam
- SCH 40/XH butt weld
Apollo 86A-508-01 Spare Parts
CBPN:
130411
MPN:
83A00801
Check Availability
Price:
$189.28 / EA
