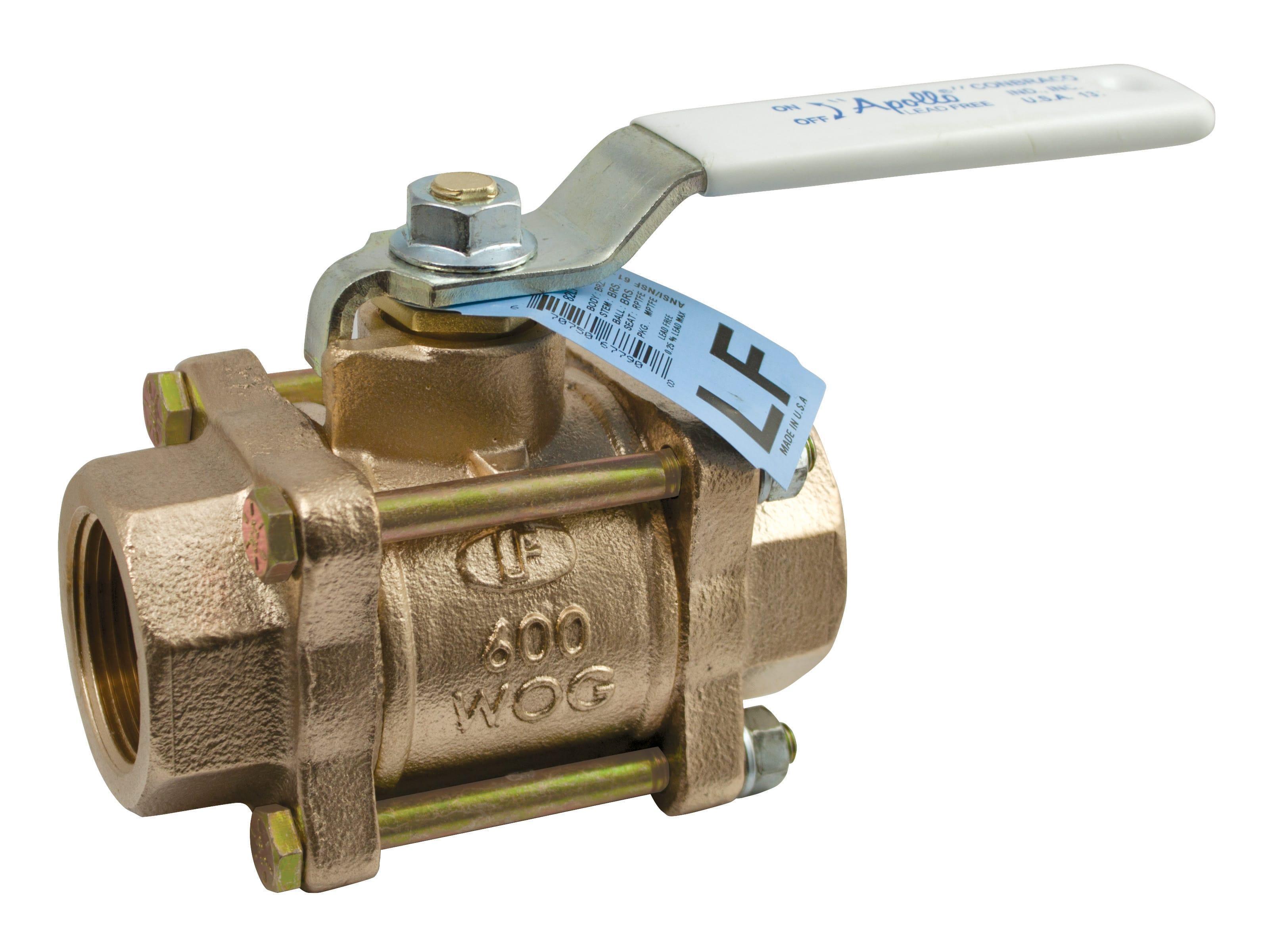

Apollo™ 82LF10601 82LF-100 3-Piece Ball Valve, 1-1/4 in Nominal, FNPT End Style, Lead Free Bronze Body, Full Port, MPTFE/RPTFE Softgoods, Domestic
CBPN: 174953
UPC:670750677908
MPN:82LF-106-01
DESCRIPTION
Apollo™ 82LF10601, Ball Valve, 3-Piece, Series: 82LF-100, 1-1/4 in Nominal, FNPT End Style, 600 psi CWP Pressure, 400 deg F, Full Port, Lever Operated Actuator, 4-3/4 in Inlet to Outlet Length, 2.87 in Top to Inlet Center, Bronze Body, Brass Stem and MPTFE Seat Trim, Domestic
The Apollo™ 82LF100 Series offers the same rugged features as the standard 82 Series with the added advantage of Lead Free materials. Designed to provide long service life and ease of in-line maintenance. SAE grade body bolts are standard. These valves are cast and machined in Apollo™'s South Carolina manufacturing plants.
Apollo™ 82LF10601 82LF-100 3-Piece Ball Valve, 1-1/4 in Nominal, FNPT End Style, Lead Free Bronze Body, Full Port, MPTFE/RPTFE Softgoods, Domestic
CBPN: 174953
MPN:82LF-106-01
UPC:670750677908
DESCRIPTION
Apollo™ 82LF10601, Ball Valve, 3-Piece, Series: 82LF-100, 1-1/4 in Nominal, FNPT End Style, 600 psi CWP Pressure, 400 deg F, Full Port, Lever Operated Actuator, 4-3/4 in Inlet to Outlet Length, 2.87 in Top to Inlet Center, Bronze Body, Brass Stem and MPTFE Seat Trim, Domestic
The Apollo™ 82LF100 Series offers the same rugged features as the standard 82 Series with the added advantage of Lead Free materials. Designed to provide long service life and ease of in-line maintenance. SAE grade body bolts are standard. These valves are cast and machined in Apollo™'s South Carolina manufacturing plants.
Specifications
Item Features
- Easily identifiable white handle grip and blue Lead free hang tag
- Full port ball configuration in all size
- Vacuum service to 29 in Hg
- Steel, zinc plated with vinyl lever and Grip
- UNS C27451 Lead free chrome plated brass ball
- (2) UNS C89836 Lead free bronze end caps
- UNS C27451 Lead free brass stem
- Zinc plated steel lever nut/body bolt/hex nut
- 150 psi steam working pressure
- MPTFE stem packing and RPTFE stem bearing
Resources
Apollo 82LF-106-01 Spare Parts
CBPN:
25538
MPN:
8200601
