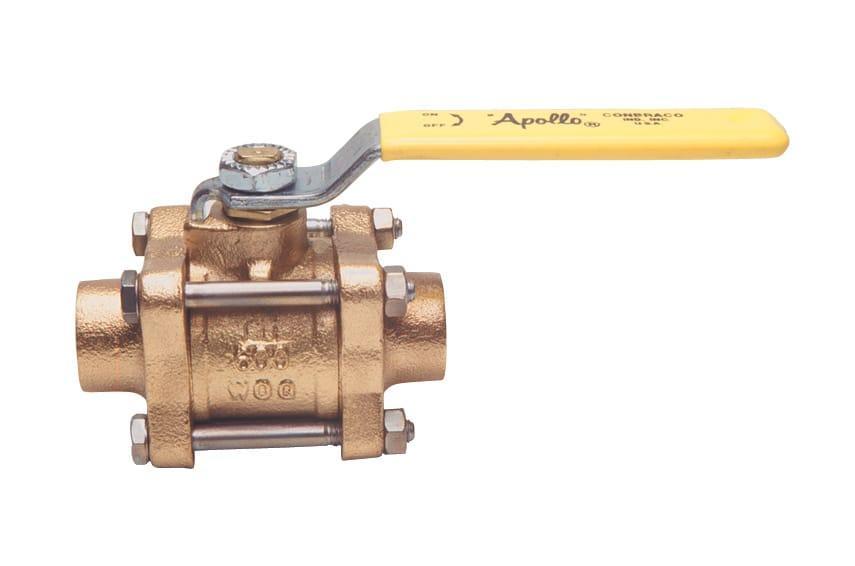

Apollo™ 8220901 82-200 3-Piece Ball Valve, 2-1/2 in Nominal, Solder End Style, Bronze Body, Full Port, Domestic
CBPN: 44560
UPC:670750729188
MPN:82-209-01
Price:
$1375.46 / EA
Prop 65:
DESCRIPTION
Apollo™ 8220901, Ball Valve, 3-Piece, Series: 82-200, 2-1/2 in Nominal, Solder End Style, 600 psi CWP Pressure, 350 deg F, Full Port, Media: Gas/Water, 2-1/2 in Orifice, Standard Lever Actuator, 7-1/4 in Inlet to Outlet Length, 5.14 in Top to Inlet Center, Bronze Body, Chrome Plated Brass Stem and RPTFE Seat Trim, Domestic
The Apollo™ 82-200 and 82A240 Series is an in-line serviceable valve designed for soft soldering or brazed installations. SAE Grade Body Bolts and RPTFE seals are standard.
Apollo™ 8220901 82-200 3-Piece Ball Valve, 2-1/2 in Nominal, Solder End Style, Bronze Body, Full Port, Domestic
CBPN: 44560
MPN:82-209-01
UPC:670750729188
Price:
$1375.46 / EA
Prop 65:
DESCRIPTION
Apollo™ 8220901, Ball Valve, 3-Piece, Series: 82-200, 2-1/2 in Nominal, Solder End Style, 600 psi CWP Pressure, 350 deg F, Full Port, Media: Gas/Water, 2-1/2 in Orifice, Standard Lever Actuator, 7-1/4 in Inlet to Outlet Length, 5.14 in Top to Inlet Center, Bronze Body, Chrome Plated Brass Stem and RPTFE Seat Trim, Domestic
The Apollo™ 82-200 and 82A240 Series is an in-line serviceable valve designed for soft soldering or brazed installations. SAE Grade Body Bolts and RPTFE seals are standard.
Specifications
Brand: Apollo™
Weight: 26.61 lbs
Nominal Size: 2-1/2 in
End Style: Solder
Pressure Rating: 600 psi CWP
Body Material: Bronze
Port Type: Full
Softgoods Material: RPTFE
Actuator Type: Standard Lever
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 7-1/4 in
Manufacturer Name: Apollo Conbraco
Media: Gas/Water
Orifice Size: 2-1/2 in
Series: 82-200
Temperature Rating: 350 deg F
Top to Inlet Center: 5.14 in
Trim Material: Chrome Plated Brass Stem and RPTFE Seat
Type: 3-Piece
Includes: Adjustable Packing Gland
Application: Soft Soldering or Brazed Installations
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B584-C84400 Body | ASTM B283 Ball | ASTM B16 Stem | CSA B51 | CRN OC10908.5C | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- Blow-out proof stem
- Premium RPTFE seats and seal
- Vacuum service to 29 in Hg
- 150 psi working steam pressure
