APOLLOPRESS 77WLF Series Ball Valve

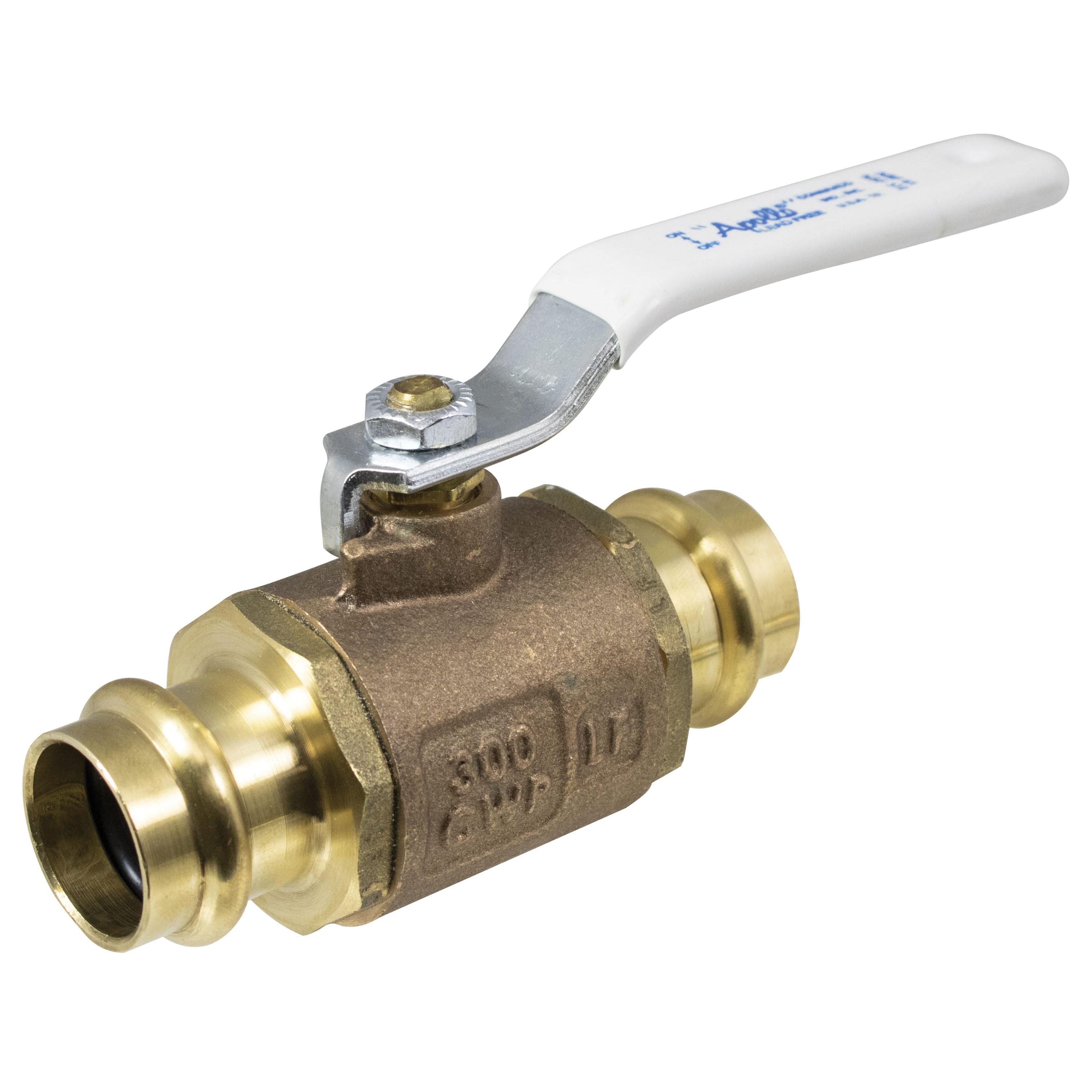

Apollo™ APOLLOPRESS® 77WLF-103-01A 77WLF-A Series Ball Valve, 1/2 in Nominal, Press End Style, Bronze Body, Full Port, EPDM/RPTFE Softgoods, Domestic

CBPN:172716

UPC:670750898617

MPN:77WLF-103-01A

Price:
$42.95 / EA
Prop 65:

DESCRIPTION

Apollo™ APOLLOPRESS® Ball Valve, Series: 77WLF-A, 1/2 in Nominal, Press End Style, 300 psig Pressure, 0 to 250 deg F, Full Port, Media: Water, 1/2 in Orifice, Lever Handle Actuator, DZR Brass Ball, 3.01 in Inlet to Outlet Length, 1.71 in Top to Inlet Center, Bronze Body, DZR Brass Stem/RPTFE Seat Trim, EPDM/RPTFE Softgoods, Domestic

The lead-free APOLLOPRESS® 77WLF-A Series Ball Valve is ideal for installation in potable water systems requiring NSF 61 or lead-free approval. Now with Leak Before Press® feature and 300 psig maximum working pressure.

Apollo™ APOLLOPRESS® 77WLF-103-01A 77WLF-A Series Ball Valve, 1/2 in Nominal, Press End Style, Bronze Body, Full Port, EPDM/RPTFE Softgoods, Domestic

CBPN:172716

MPN:77WLF-103-01A

UPC:670750898617

Price:
$42.95 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ APOLLOPRESS® Ball Valve, Series: 77WLF-A, 1/2 in Nominal, Press End Style, 300 psig Pressure, 0 to 250 deg F, Full Port, Media: Water, 1/2 in Orifice, Lever Handle Actuator, DZR Brass Ball, 3.01 in Inlet to Outlet Length, 1.71 in Top to Inlet Center, Bronze Body, DZR Brass Stem/RPTFE Seat Trim, EPDM/RPTFE Softgoods, Domestic

The lead-free APOLLOPRESS® 77WLF-A Series Ball Valve is ideal for installation in potable water systems requiring NSF 61 or lead-free approval. Now with Leak Before Press® feature and 300 psig maximum working pressure.

Specifications

BrandApollo™
Series77WLF-A Series
Body MaterialBronze
Domestic/ImportDomestic
End StylePress
Nominal Size1/2 in
Pressure Rating300 psig
Temperature Rating0 to 250 deg F
Actuator TypeLever Handle
MediaWater
Orifice Size1/2 in
Port TypeFull
Softgoods MaterialEPDM/RPTFE
Trim MaterialDZR Brass Stem/RPTFE Seat
Ball MaterialDZR Brass
Inlet to Outlet Length3.01 in
Top to Inlet Center1.71 in
Weight0.61 lbs
Standards ApprovalsASTM B16/B584,IAPMO/ANSI Z1157,Lead-Free Compliant,MSS SP-110,NSF/ANSI 372,NSF/ANSI/CAN 61,UNS C27451/C36000/C89836

Item Features

  • Lead-free brass and bronze materials easily identifiable blue "lead-free" hang tag
  • Adjustable stem packing
  • Fast, reliable, economical press installation
  • Leak Before Press® technology
  • Corrosion-resistant materials
  • 100% factory tested
  • Ridgid® XL press tool compatible
  • Made in the USA
  • EPDM O-ring/RPTFE stem packing
  • 100% factory tested, made in the USA
