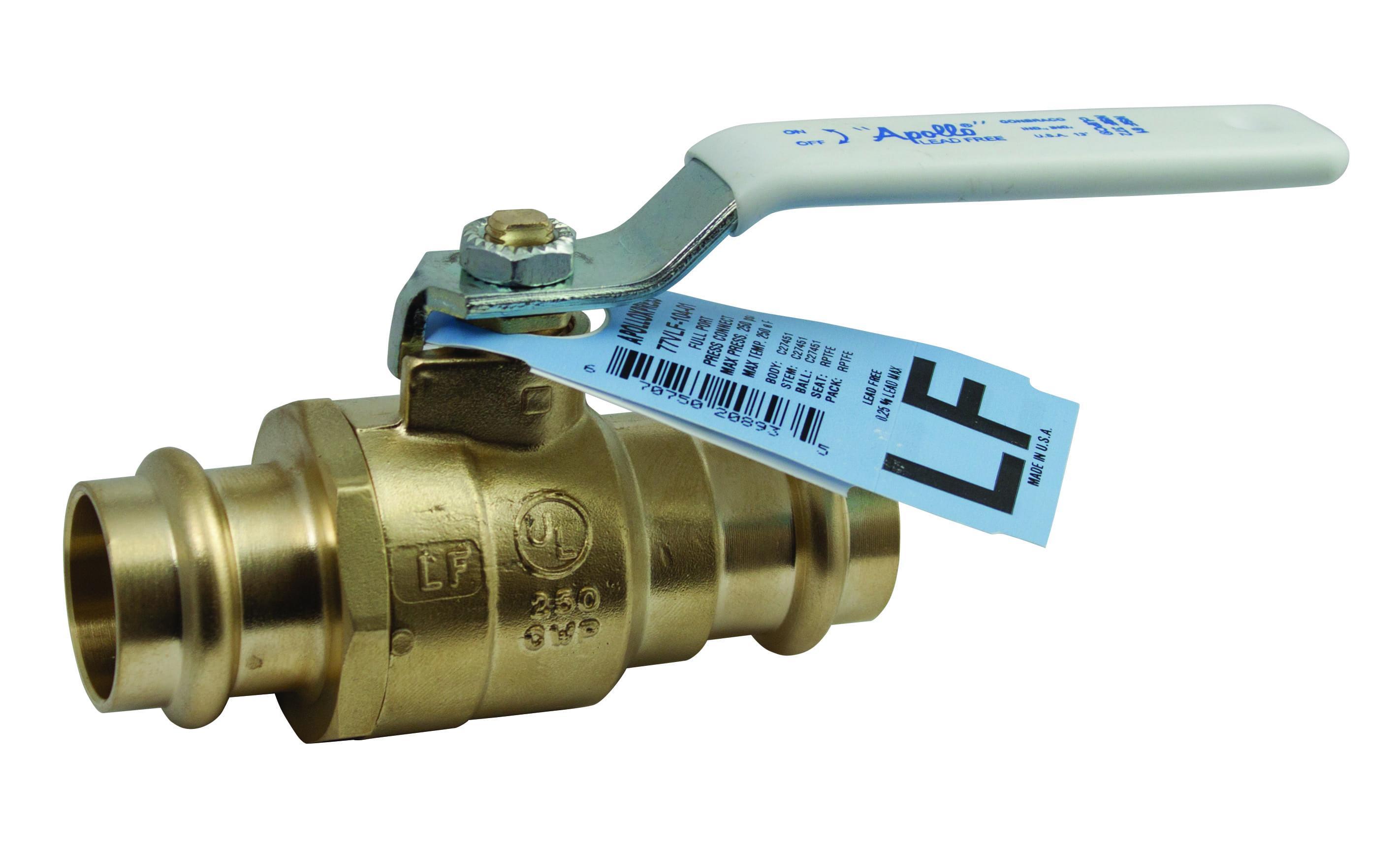

Apollo™ APOLLOPRESS® 77VLF10327 2-Piece Ball Valve, 1/2 in Nominal, Press End Style, Lead Free Brass Body, Full Port, RPTFE/EPDM Softgoods, Domestic
CBPN:175176
UPC:670750998652
MPN:77VLF10327
Price:
$48.55 / EA
Prop 65:
DESCRIPTION
Apollo™ 77VLF10327, Ball Valve, 2-Piece, Series: 77VLF, 1/2 in Nominal, Press End Style, 300 psi Pressure, 0 to 250 deg F, Full Port, Media: Water, Locking Handle Actuator, Chrome Plated Brass Ball, 2.89 in Inlet to Outlet Length, 1.66 in Top to Inlet Center, RPTFE/EPDM Softgoods, Domestic
The APOLLOPRESS® 77VLF Series lead free two-piece press ball valve is ideal for installation in most plumbing and heating systems, including potable water. Now with Leak Before Press® feature and 300 psig maximum working pressure. Proudly Made in the USA.
Apollo™ APOLLOPRESS® 77VLF10327 2-Piece Ball Valve, 1/2 in Nominal, Press End Style, Lead Free Brass Body, Full Port, RPTFE/EPDM Softgoods, Domestic
CBPN:175176
MPN:77VLF10327
UPC:670750998652
Price:
$48.55 / EA
Prop 65:
DESCRIPTION
Apollo™ 77VLF10327, Ball Valve, 2-Piece, Series: 77VLF, 1/2 in Nominal, Press End Style, 300 psi Pressure, 0 to 250 deg F, Full Port, Media: Water, Locking Handle Actuator, Chrome Plated Brass Ball, 2.89 in Inlet to Outlet Length, 1.66 in Top to Inlet Center, RPTFE/EPDM Softgoods, Domestic
The APOLLOPRESS® 77VLF Series lead free two-piece press ball valve is ideal for installation in most plumbing and heating systems, including potable water. Now with Leak Before Press® feature and 300 psig maximum working pressure. Proudly Made in the USA.
Specifications
Brand: Apollo™
Weight: 0.43 lbs
Nominal Size: 1/2 in
End Style: Press
Pressure Rating: 300 psi
Body Material: Lead Free Brass
Port Type: Full
Softgoods Material: RPTFE/EPDM
Actuator Type: Locking Handle
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 2.89 in
Manufacturer Name: Apollo Conbraco
Media: Water
Series: 77VLF
Temperature Rating: 0 to 250 deg F
Top to Inlet Center: 1.66 in
Trim Material: Brass/RPTFE
Type: 2-Piece
Application: Plumbing, Heating System and Potable Water
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ARRA Compliant | ASTM B88 | C27451 Body/Ball/Stem | Directive 2002/65/CE Certified to RoHS Compliant | Federal Public Law 111-380 | IAPMO/ANSI Z1157 | MSS SP-110 | NSF/ANSI 61/372 | UPC Listed | PROP65: Cancer and Reproductive Harm
Item Features
- 2 piece, heavy pattern forged design
- Adjustable stem packing
- Fast, reliable, economical press installation
- Ridgid XL press tool compatible
- Leak before Press technology
- Corrosion resistant materials
- Silicone free assembly
- Brass stem/RPTFE seat
- RPTFE stem packing/EPDM O-ring seal
- The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
- Stainless steel locking handle
