APOLLOPRESS 77VLF Series Ball Valve

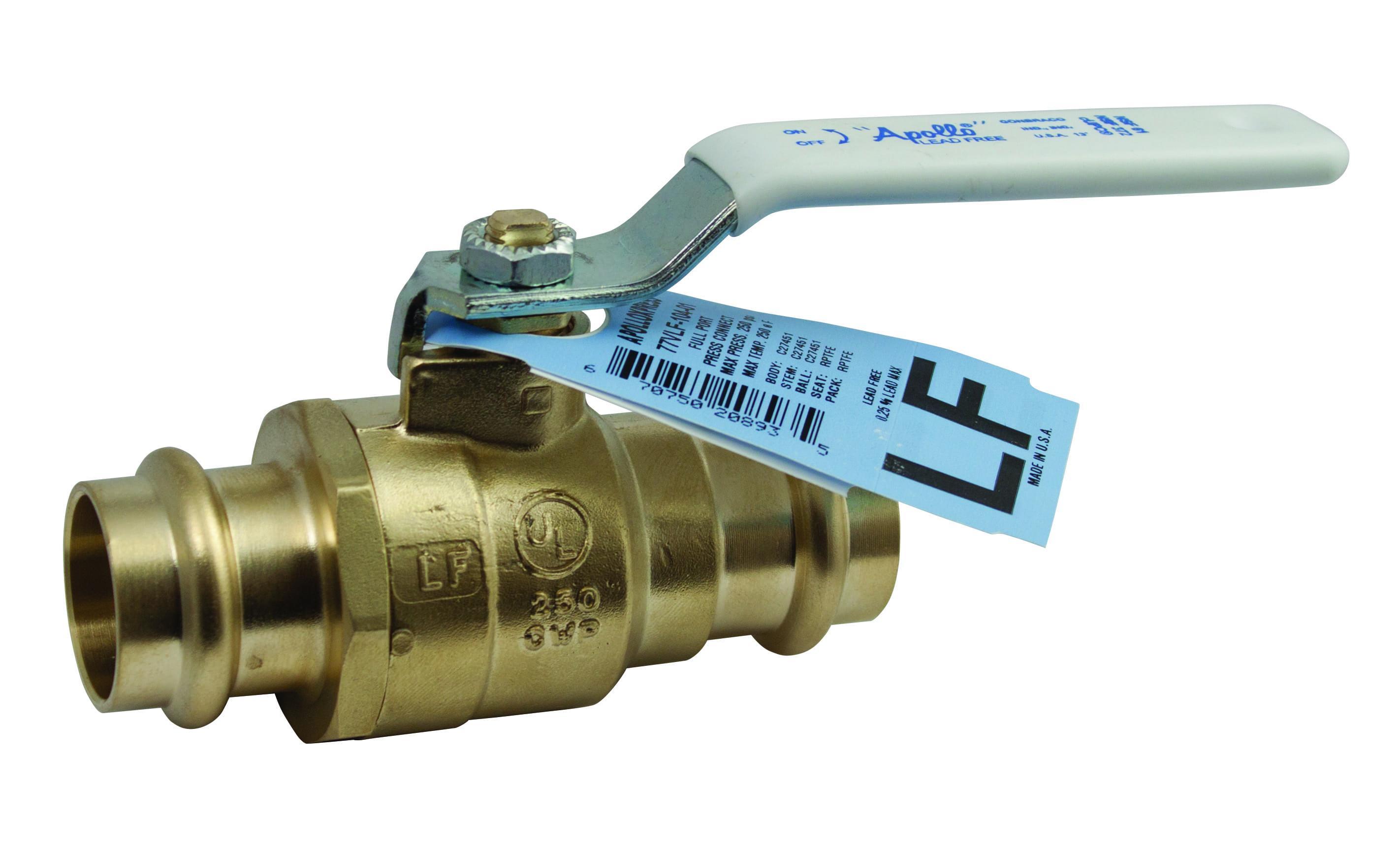

Apollo™ APOLLOPRESS® 77VLF14801 77VLF-140 2-Piece Ball Valve, 2 in Nominal, Press End Style, Lead Free Brass Body, Full Port, RPTFE/EPDM Softgoods, Domestic

CBPN:189458

UPC:670750929625

MPN:77VLF-148-01

Price:
$361.81 / EA
Prop 65:

DESCRIPTION

Apollo™ APOLLOPRESS® Ball Valve, 2-Piece, Series: 77VLF-140, 2 in Nominal, Press, 250 psi, 0 to 250 deg F, Full Port, Media: Water, Lever Operated Actuator, Stainless Steel Ball, 6.57 in Inlet to Outlet Length, 3.69 in Top to Inlet Center, Brass Body, Stainless Steel Stem and RPTFE Seat Trim, RPTFE/EPDM, Domestic

The APOLLOPRESS® 77VLF140 Series Lead Free 2-Piece press ball valve is ideal for installation in most plumbing and heating systems, including potable water. Now with Leak Before Press™ feature and 250 psig maximum working pressure.

Apollo™ APOLLOPRESS® 77VLF14801 77VLF-140 2-Piece Ball Valve, 2 in Nominal, Press End Style, Lead Free Brass Body, Full Port, RPTFE/EPDM Softgoods, Domestic

CBPN:189458

MPN:77VLF-148-01

UPC:670750929625

Price:
$361.81 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ APOLLOPRESS® Ball Valve, 2-Piece, Series: 77VLF-140, 2 in Nominal, Press, 250 psi, 0 to 250 deg F, Full Port, Media: Water, Lever Operated Actuator, Stainless Steel Ball, 6.57 in Inlet to Outlet Length, 3.69 in Top to Inlet Center, Brass Body, Stainless Steel Stem and RPTFE Seat Trim, RPTFE/EPDM, Domestic

The APOLLOPRESS® 77VLF140 Series Lead Free 2-Piece press ball valve is ideal for installation in most plumbing and heating systems, including potable water. Now with Leak Before Press™ feature and 250 psig maximum working pressure.

Specifications

BrandApollo™
Actuator TypeLever Operated
Body MaterialLead Free Brass
End StylePress
Nominal Size2 in
Series77VLF-140
Temperature Rating0 to 250 deg F
Type2-Piece
Domestic/ImportDomestic
Pressure Rating250 psi
MediaWater
Port TypeFull
Softgoods MaterialRPTFE/EPDM
Trim MaterialStainless Steel Stem and RPTFE Seat
Ball MaterialStainless Steel
Inlet to Outlet Length6.57 in
Top to Inlet Center3.69 in
Weight5.86 lbs
Standards ApprovalsARRA Compliant,Directive 2011/65/CE Listed,IAPMO IGC-157,RoHS Compliant,UNS C37700 Valve Body/Retainer

Item Features

  • Adjustable stem packing nut
  • Ridgid® XLC press tool compatible
  • Leak before Press® technology
  • Blow-out proof stem
  • Corrosion resistant materials
  • Silicone free
  • 100% factory tested
  • UNS C27451 Lead free brass retainer
  • Complies with Federal Public Law 111-380, ANSI 3Rd Party approved and Listed
  • RPTFE stem packing and EPDM O-ring
