APOLLOPRESS 77VLF Series Ball Valve

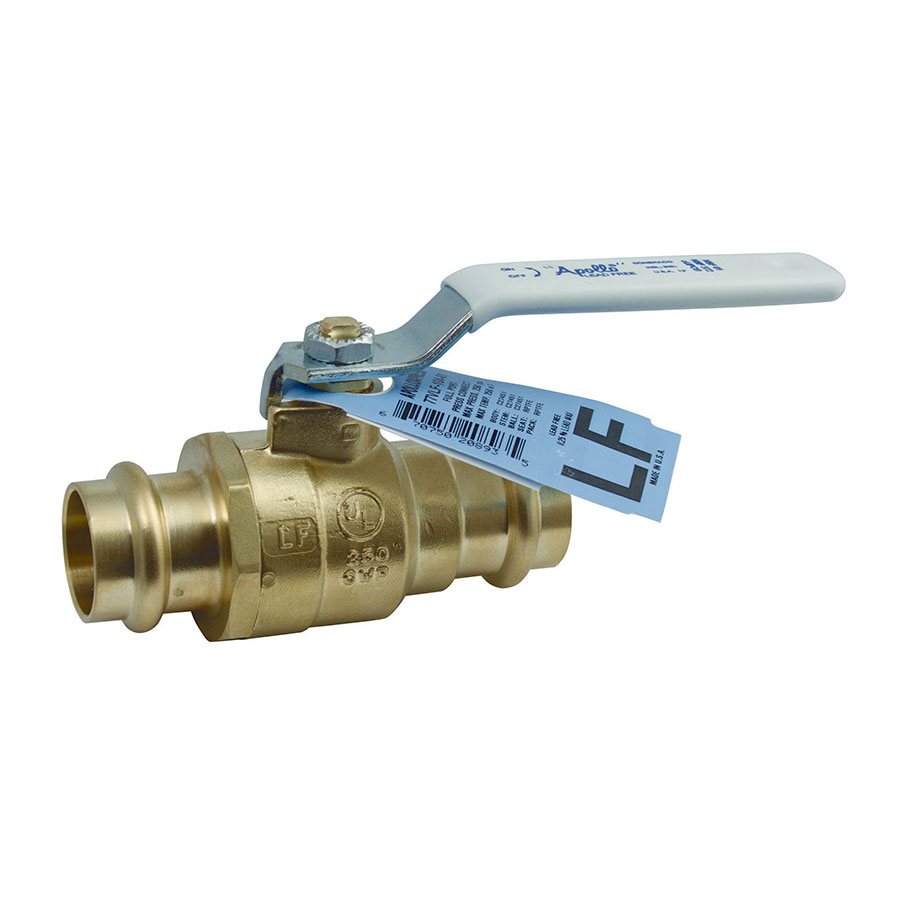

Apollo™ APOLLOXPRESS® 77VLF14301 77VLF-140 2-Piece Ball Valve, 1/2 in Nominal, Press End Style, Lead Free Brass Body, Full Port, RPTFE/EPDM Softgoods, Domestic

CBPN:174143

UPC:670750928994

MPN:77VLF-143-01

Price:
$50.86 / EA
Prop 65:

DESCRIPTION

Apollo™, 77VLF14301, Ball Valve, 2-Piece, Series: 77VLF-140, 1/2 in Nominal, Press End Style, 300 psi Pressure, 0 to 250 deg F, Full Port, Media: Water, Lever Handle Actuator, 316 Stainless Steel Ball, 2.89 in Inlet to Outlet Length, 1.66 in Top to Inlet Center, Brass Body, Stainless Steel/RPTFE Trim, RPTFE/EPDM Softgoods, Domestic

The APOLLOPRESS® 77VLF140 Series Lead Free 2-Piece press ball valve is ideal for installation in most plumbing and heating systems, including potable water. Now with Leak Before Press™ feature and 250 psig maximum working pressure.

Apollo™ APOLLOXPRESS® 77VLF14301 77VLF-140 2-Piece Ball Valve, 1/2 in Nominal, Press End Style, Lead Free Brass Body, Full Port, RPTFE/EPDM Softgoods, Domestic

CBPN:174143

MPN:77VLF-143-01

UPC:670750928994

Price:
$50.86 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™, 77VLF14301, Ball Valve, 2-Piece, Series: 77VLF-140, 1/2 in Nominal, Press End Style, 300 psi Pressure, 0 to 250 deg F, Full Port, Media: Water, Lever Handle Actuator, 316 Stainless Steel Ball, 2.89 in Inlet to Outlet Length, 1.66 in Top to Inlet Center, Brass Body, Stainless Steel/RPTFE Trim, RPTFE/EPDM Softgoods, Domestic

The APOLLOPRESS® 77VLF140 Series Lead Free 2-Piece press ball valve is ideal for installation in most plumbing and heating systems, including potable water. Now with Leak Before Press™ feature and 250 psig maximum working pressure.

Specifications

BrandApollo™
Weight0.43lbs
Actuator TypeLever Handle
Body MaterialLead Free Brass
End StylePress
Nominal Size1/2 in
Series77VLF-140
Temperature Rating0 to 250 deg F
Type2-Piece
Pressure Rating300 psi
MediaWater
Port TypeFull
Softgoods MaterialRPTFE/EPDM
Trim MaterialStainless Steel/RPTFE
Ball Material316 Stainless Steel
Inlet to Outlet Length2.89 in
Manufacturer NameApollo Conbraco
Top to Inlet Center1.66 in
ApplicationIdeal for installation in most plumbing and heating systems, including potable water
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsARRA Compliant,Directive 2011/65/CE Listed,IAPMO IGC-157,RoHS Compliant,UNS C37700 Valve Body/Retainer

Item Features

  • Adjustable stem packing nut
  • Ridgid XLC press tool compatible
  • Leak before Press technology
  • Blow-out proof stem
  • Corrosion resistant materials
  • Silicone free
  • 100% factory tested
