Apollo 77FLF-100 Series Ball Valve

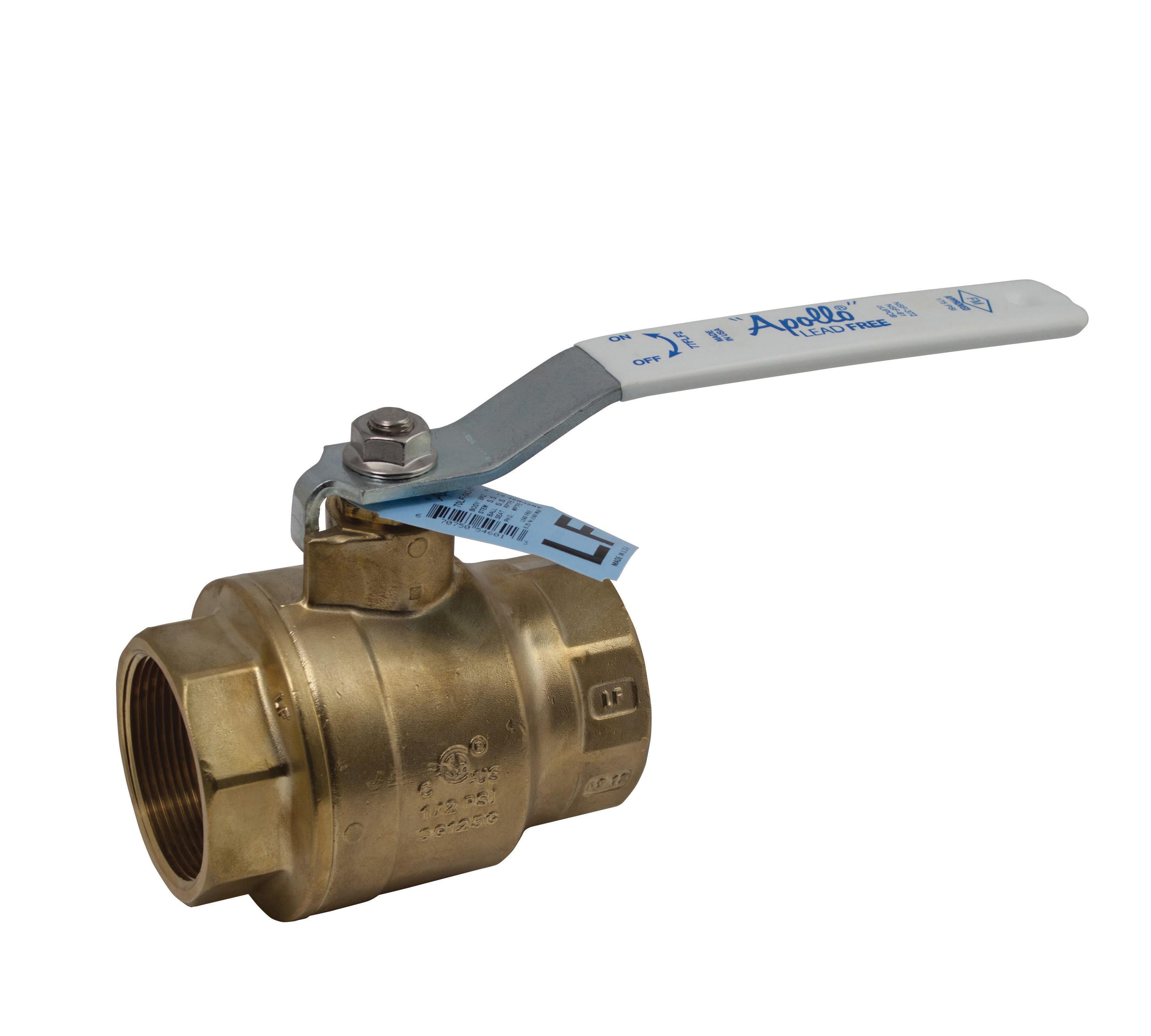

Apollo™ 77FLF-145-27 77FLF-140 77FLF-140 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Forged Lead Free Brass Body, Full Port

CBPN:247555

UPC:670750448782

MPN:77FLF14527

Price:
$93.21 / EA
Prop 65:

DESCRIPTION

Apollo™, 77FLF14527, Ball Valve, 2-Piece, Series: 77FLF-140, 1 in Nominal, NPT End Style, 600 psi CWP Pressure, 400 deg F, Full Port, Media: Water, Locking Handle Actuator, 316 Stainless Steel Ball, 3.2 in Inlet to Outlet Length, 2.11 in Top to Inlet Center, Forged Brass Body, RPTFE/Stainless Steel Trim, Domestic

Apollo™ 77FLF-145-27 77FLF-140 77FLF-140 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Forged Lead Free Brass Body, Full Port

CBPN:247555

MPN:77FLF14527

UPC:670750448782

Price:
$93.21 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™, 77FLF14527, Ball Valve, 2-Piece, Series: 77FLF-140, 1 in Nominal, NPT End Style, 600 psi CWP Pressure, 400 deg F, Full Port, Media: Water, Locking Handle Actuator, 316 Stainless Steel Ball, 3.2 in Inlet to Outlet Length, 2.11 in Top to Inlet Center, Forged Brass Body, RPTFE/Stainless Steel Trim, Domestic

Specifications

BrandApollo™
Weight1.291lbs
Nominal Size1 in
End StyleNPT
Pressure Rating600 psi CWP
Body MaterialLead Free Brass
Port TypeFull
Softgoods MaterialRPTFE
Actuator TypeLocking Handle
Ball Material316 Stainless Steel
Inlet to Outlet Length3.2 in
Manufacturer NameApollo Conbraco
MediaWater
Series77FLF-140
Temperature Rating400 deg F
Top to Inlet Center2.11 in
Trim MaterialRPTFE/Stainless Steel
Type2-Piece
IncludesStainless Steel Latch-Lock Lever, Nut
ApplicationPlumbing, Heating System and Potable Water Applications
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASME B16.33/B16.44 | ANSI Z21.15, CGA 9.1 | C27451 Body | CGA 3.16/CR91-002 | cCSAus Certified | FM 1140 | Federal Public Law 111 380 | IAPMO/ANSI Z1157-2014e1 | MSS-SP-110 | NSF/ANSI 61/372 | UL YSDT/MHKZ/YQNZ/YRBX/YRPV/VQGU | UPC Listed | PROP65: Cancer and Reproductive Harm

Item Features

  • Heavy pattern forged design
  • Adjustable stem packing
  • Blow-out proof stem design
  • Dezincification-resistant materials
  • 100% factory tested
  • Silicone-free assembly
  • Vacuum service to 29 in Hg
  • The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
  • Stainless steel locking handle
