Apollo 77FLF-200 Series Ball Valve

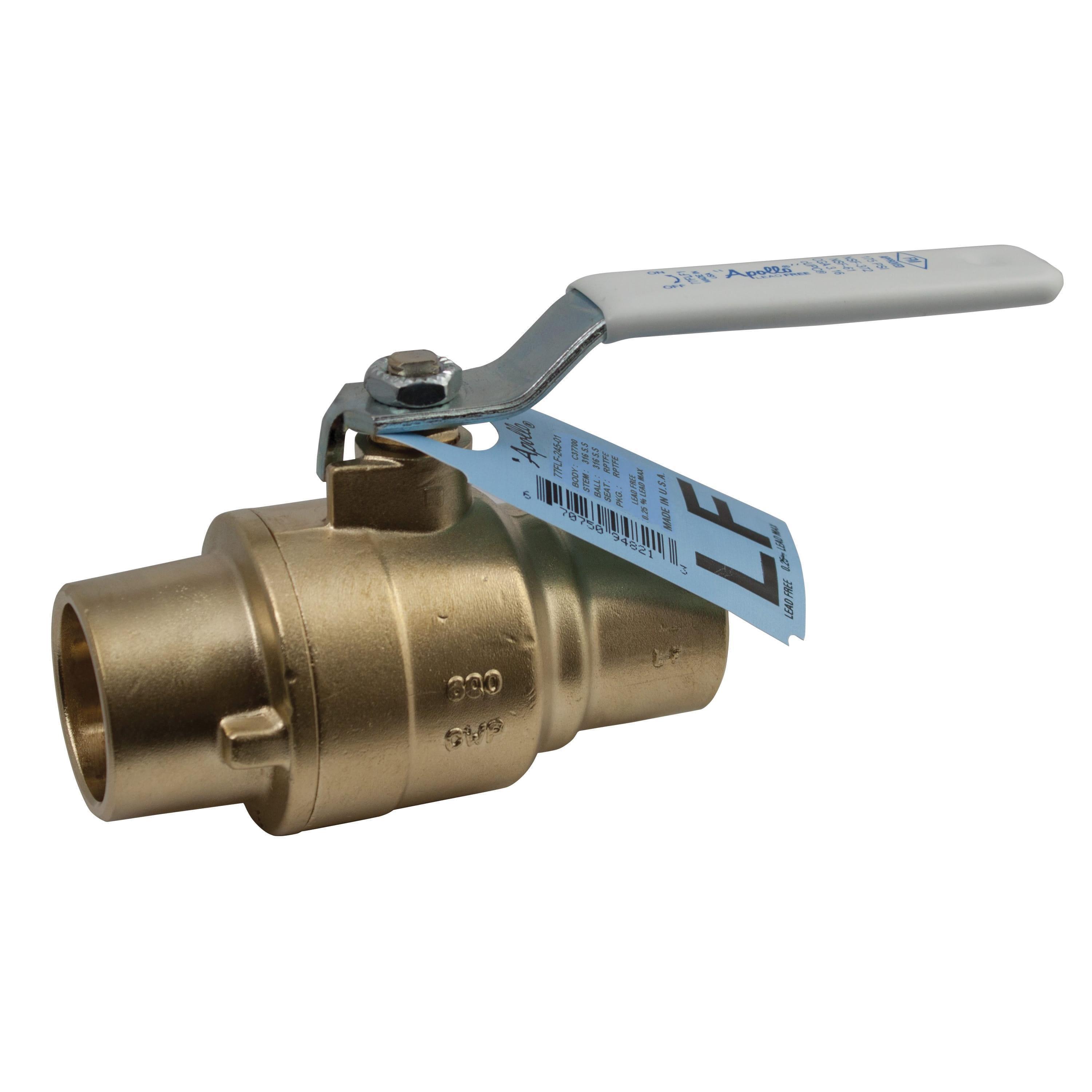

Apollo™ 77FLF20801 77FLF-200 2-Piece Ball Valve, 2 in Nominal, Solder End Style, Forged Lead Free Brass Body, Full Port, RPTFE Softgoods, Domestic

CBPN:174950

UPC:670750372261

MPN:77FLF-208-01

Price:
$194.35 / EA
Prop 65:

DESCRIPTION

Apollo™, 77FLF20801, Ball Valve, 2-Piece, Series: 77FLF-200, 2 in Nominal, Solder End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Lever Operated Actuator, 5.82 in Inlet to Outlet Length, 3.69 in Top to Inlet Center, Brass Stem and RPTFE Seat Trim, Domestic

The Apollo™ 77FLF-200 series is a Lead Free full port forged brass ball valve ideal for a wide range of plumbing and heating applications, including potable water. These two piece style solder connection valves carry multi-agency approvals and are deigned to provide reliable operation at a competitive price. The 77FLF-200 series valve is intended to be soft soldered into lines without disassembly. Proudly Made in the USA.

Apollo™ 77FLF20801 77FLF-200 2-Piece Ball Valve, 2 in Nominal, Solder End Style, Forged Lead Free Brass Body, Full Port, RPTFE Softgoods, Domestic

CBPN:174950

MPN:77FLF-208-01

UPC:670750372261

Price:
$194.35 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™, 77FLF20801, Ball Valve, 2-Piece, Series: 77FLF-200, 2 in Nominal, Solder End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Lever Operated Actuator, 5.82 in Inlet to Outlet Length, 3.69 in Top to Inlet Center, Brass Stem and RPTFE Seat Trim, Domestic

The Apollo™ 77FLF-200 series is a Lead Free full port forged brass ball valve ideal for a wide range of plumbing and heating applications, including potable water. These two piece style solder connection valves carry multi-agency approvals and are deigned to provide reliable operation at a competitive price. The 77FLF-200 series valve is intended to be soft soldered into lines without disassembly. Proudly Made in the USA.

Specifications

BrandApollo™
Weight5.97lbs
Nominal Size2 in
End StyleSolder
Pressure Rating600 psi CWP
Body MaterialLead Free Brass
Port TypeFull
Softgoods MaterialRPTFE
Actuator TypeLever Operated
Ball MaterialChrome Plated Brass
Inlet to Outlet Length5.82 in
Manufacturer NameApollo Conbraco
Series77FLF-200
Temperature Rating0 to 400 deg F
Top to Inlet Center3.69 in
Trim MaterialBrass Stem and RPTFE Seat
Type2-Piece
ApplicationIdeal for a wide range of plumbing and heating applications, including potable water
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsARRA Compliant | Annex G | MSSP-SP-110 | IAPMO IGC-157 Ball Valves | FM 1140 | NSF/ANSI 61-8 | NSF/ANSI 372 | PROP65: Cancer and Reproductive Harm

Item Features

  • Heavy pattern forged design
  • Superior RPTFE seats and packing
  • Adjustable stem packing
  • Blow-out proof stem
  • Corrosion resistant materials
  • Silicone free assembly
  • 100% factory tested
  • Vacuum service to 29 in Hg
  • Corrosion resistant plated steel nut
  • Plated steel/insulated polyvinyl handle
