Apollo 77FLF-200 Series Ball Valve

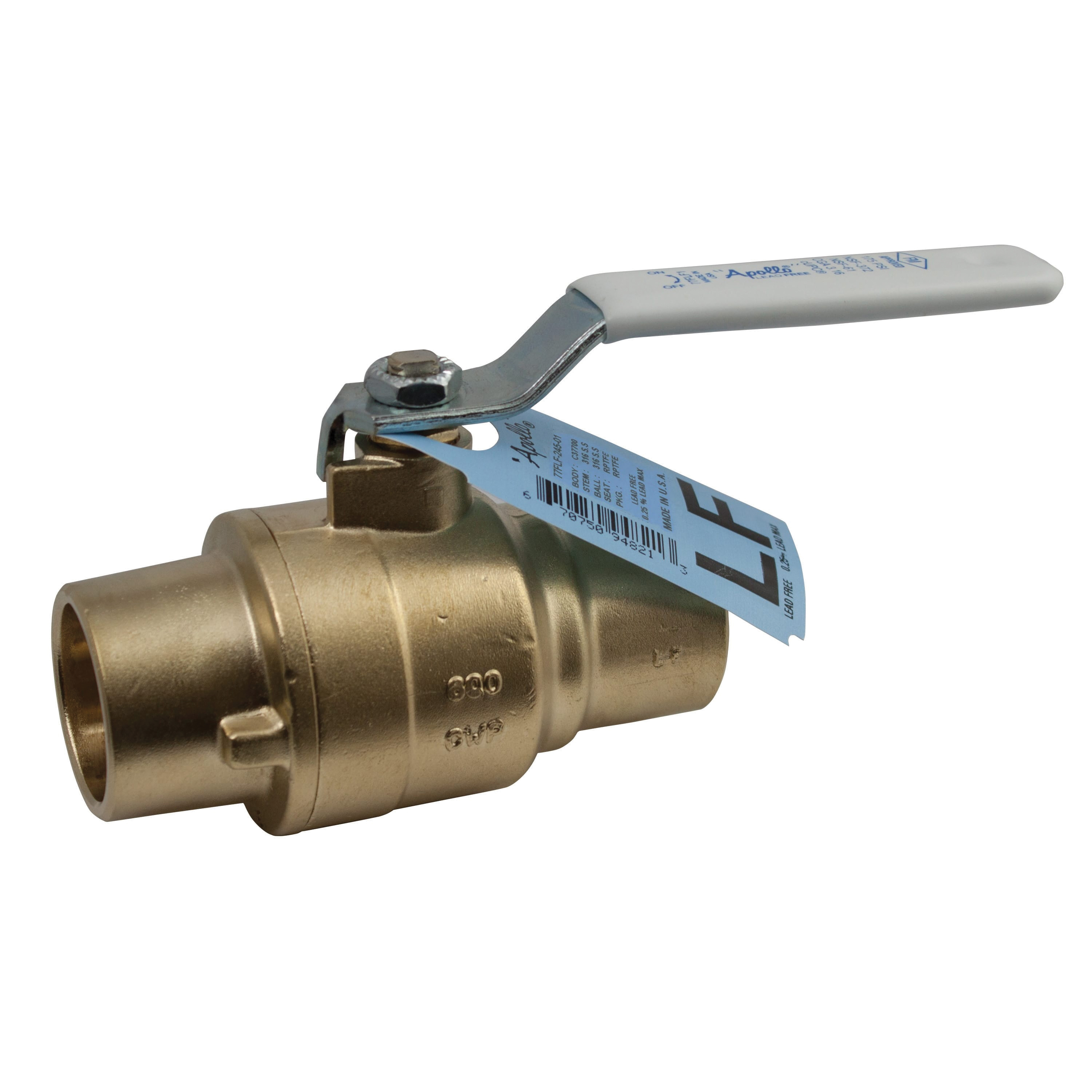

Apollo™ 77FLF20401 77FLF-200 2-Piece Ball Valve, 3/4 in Nominal, Solder End Style, Forged Lead Free Brass Body, Full Port, RPTFE Softgoods, Domestic

CBPN:172714

UPC:670750372179

MPN:77FLF-204-01

Price:
$32.89 / EA
Prop 65:

DESCRIPTION

Apollo™ Ball Valve, 2-Piece, Series: 77FLF-200, 3/4 in Nominal, Solder, 600 psi CWP, 0 to 400 deg F, Full Port, Lever Operated Actuator, Chrome Plated Brass Ball, 3.13 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, Forged Brass Body, Brass Stem and RPTFE Seat Trim, RPTFE, Domestic

The Apollo™ 77FLF-200 series is a Lead Free full port forged brass ball valve ideal for a wide range of plumbing and heating applications, including potable water. These two piece style solder connection valves carry multi-agency approvals and are deigned to provide reliable operation at a competitive price. The 77FLF-200 series valve is intended to be soft soldered into lines without disassembly. Proudly Made in the USA.

Apollo™ 77FLF20401 77FLF-200 2-Piece Ball Valve, 3/4 in Nominal, Solder End Style, Forged Lead Free Brass Body, Full Port, RPTFE Softgoods, Domestic

CBPN:172714

MPN:77FLF-204-01

UPC:670750372179

Price:
$32.89 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ Ball Valve, 2-Piece, Series: 77FLF-200, 3/4 in Nominal, Solder, 600 psi CWP, 0 to 400 deg F, Full Port, Lever Operated Actuator, Chrome Plated Brass Ball, 3.13 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, Forged Brass Body, Brass Stem and RPTFE Seat Trim, RPTFE, Domestic

The Apollo™ 77FLF-200 series is a Lead Free full port forged brass ball valve ideal for a wide range of plumbing and heating applications, including potable water. These two piece style solder connection valves carry multi-agency approvals and are deigned to provide reliable operation at a competitive price. The 77FLF-200 series valve is intended to be soft soldered into lines without disassembly. Proudly Made in the USA.

Specifications

BrandApollo™
Series77FLF-200
Type2-Piece
Body MaterialLead Free Brass
Domestic/ImportDomestic
End StyleSolder
Nominal Size3/4 in
Pressure Rating600 psi CWP
Temperature Rating0 to 400 deg F
Actuator TypeLever Operated
Port TypeFull
Softgoods MaterialRPTFE
Trim MaterialBrass Stem and RPTFE Seat
Ball MaterialChrome Plated Brass
Inlet to Outlet Length3.13 in
Top to Inlet Center1.91 in
Weight0.79 lbs
Standards ApprovalsARRA Compliant,Annex G,MSSP-SP-110,IAPMO IGC-157 Ball Valves,FM 1140,NSF/ANSI 61-8,NSF/ANSI 372

Item Features

  • Heavy pattern forged design
  • Superior RPTFE seats and packing
  • Adjustable stem packing
  • Blow-out proof stem
  • Corrosion resistant materials
  • Silicone free assembly
  • 100% factory tested
  • Vacuum service to 29 in Hg
  • Corrosion resistant plated steel nut
  • UNS C27451 Lead free brass retainer
  • Plated steel/insulated polyvinyl handle
  • ASTM B16-C36000 brass gland
  • Complies with Federal Public law 111-380, ANSI 3Rd Party approved and listed
  • RPTFE stem packing
