Apollo 77F-100 Series Ball Valve

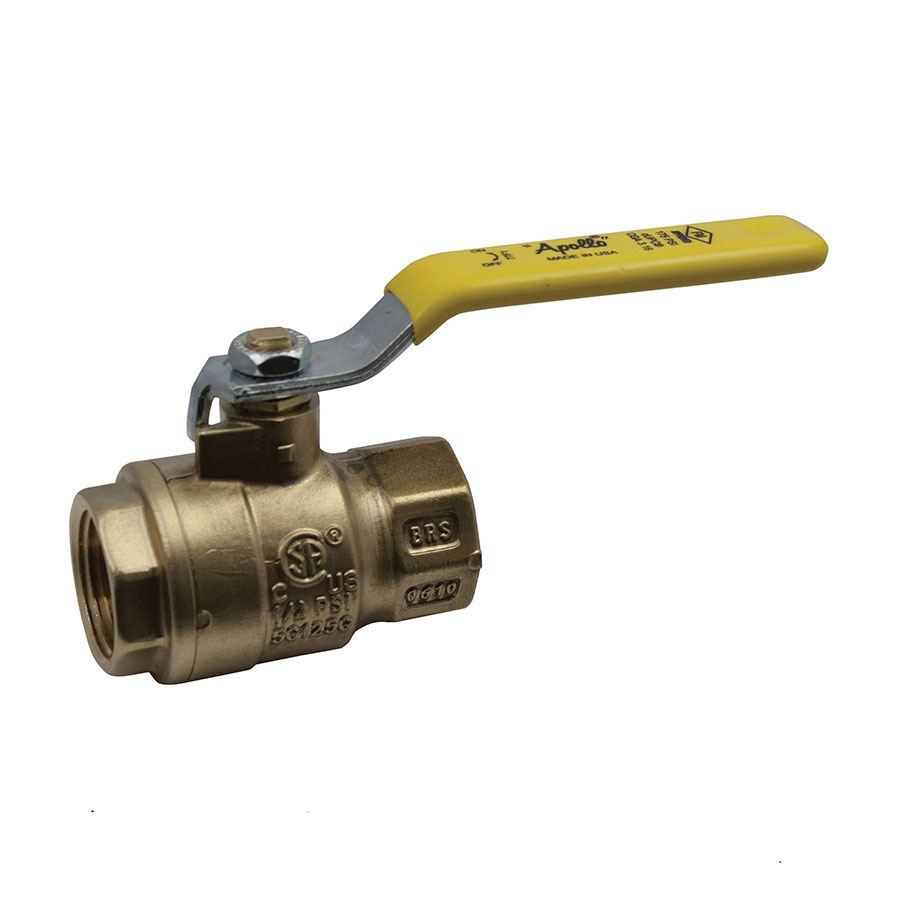

Apollo™ 77F-143-27 77F-140 77F-140 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Forged Brass Body, Full Port

CBPN:201918

UPC:670750047954

MPN:77F14327

Price:
$35.15 / EA
Prop 65:

DESCRIPTION

Apollo™ Ball Valve, 2-Piece, Series: 77F-140, 1/2 in Nominal, FNPT End Style, 600 psi CWP/150 psi SWP Pressure, 0 to 400 deg F, Full Port, Handle Actuator, Stainless Steel Ball, 2-1/4 in Inlet to Outlet Length, 1.66 in Top to Inlet Center, Forged Brass Body, RPTFE/Stainless Steel Trim, RPTFE Softgoods, Domestic

Apollo™ 77F-143-27 77F-140 77F-140 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Forged Brass Body, Full Port

CBPN:201918

MPN:77F14327

UPC:670750047954

Price:
$35.15 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ Ball Valve, 2-Piece, Series: 77F-140, 1/2 in Nominal, FNPT End Style, 600 psi CWP/150 psi SWP Pressure, 0 to 400 deg F, Full Port, Handle Actuator, Stainless Steel Ball, 2-1/4 in Inlet to Outlet Length, 1.66 in Top to Inlet Center, Forged Brass Body, RPTFE/Stainless Steel Trim, RPTFE Softgoods, Domestic

Specifications

BrandApollo™
Series77F-140
Type2-Piece
Body MaterialBrass
Domestic/ImportDomestic
End StyleFNPT
Nominal Size1/2 in
Pressure Rating600 psi CWP/150 psi SWP
Temperature Rating0 to 400 deg F
Actuator TypeHandle
Port TypeFull
Softgoods MaterialRPTFE
Trim MaterialRPTFE/Stainless Steel
Ball MaterialStainless Steel
Inlet to Outlet Length2-1/4 in
Top to Inlet Center1.66 in
Weight0.47 lbs
IncludesStainless Steel Latch-Lock Lever and Nut
Standards ApprovalsASTM B283-C37700 Body,ASTM B16-C36000 Stem,ANSI Z21.15, CGA 9.1,ASME B16.44/B16.33,cCSAus Certified,CGA 3.16/CR91-002,FM 1140,IAPMO/ANSI Z1157-2014e1,MSS-SP-110,UL YSDT/MHKZ/YQNZ/YRBX/YRPV/VQGU,UPC Listed

Item Features

  • Heavy pattern forged design
  • Corrosion-resistant materials
  • Premium RPTFE seats and packing
  • Adjustable stem packing
  • Blow-out proof stem design
  • Silicone-free assembly
  • 100% factory tested
  • Vacuum service to 29 in Hg
  • Stainless steel stem and RPTFE seat
  • RPTFE stem packing
  • Stainless steel locking handle
