Apollo 77F-140 Series Ball Valve

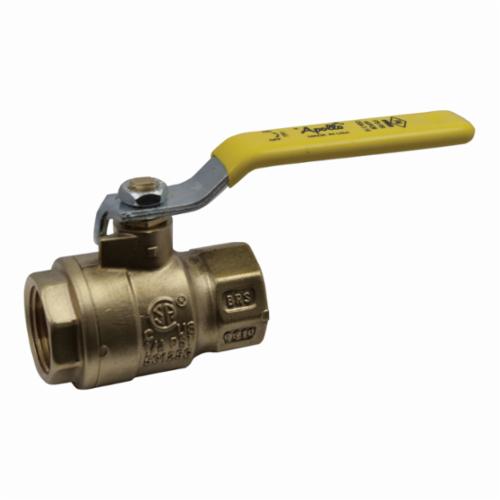

Apollo™ 77F14401 77F-140 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Forged Brass Body, Full Port, RPTFE Softgoods, Domestic

CBPN:195701

UPC:670750951572

MPN:77F-144-01

Price:
$42.20 / EA
Prop 65:

DESCRIPTION

Apollo™, 77F14401, Ball Valve, 2-Piece, Series: 77F-140, 3/4 in Nominal, FNPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Lever Operated Actuator, 316 Stainless Steel Ball, 2.51 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, Forged Brass Body, 316 Stainless Steel Stem and RPTFE Seat Trim, RPTFE Softgoods, Domestic

The Apollo™ 77F-100 Series is a full port forged brass ball valve suitable for a wide range of flow control applications including HVAC, fuel gas, fire protection, irrigation etc. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly Made in the USA.

Apollo™ 77F14401 77F-140 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Forged Brass Body, Full Port, RPTFE Softgoods, Domestic

CBPN:195701

MPN:77F-144-01

UPC:670750951572

Price:
$42.20 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™, 77F14401, Ball Valve, 2-Piece, Series: 77F-140, 3/4 in Nominal, FNPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Lever Operated Actuator, 316 Stainless Steel Ball, 2.51 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, Forged Brass Body, 316 Stainless Steel Stem and RPTFE Seat Trim, RPTFE Softgoods, Domestic

The Apollo™ 77F-100 Series is a full port forged brass ball valve suitable for a wide range of flow control applications including HVAC, fuel gas, fire protection, irrigation etc. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly Made in the USA.

Specifications

BrandApollo™
Weight0.76lbs
Nominal Size3/4 in
End StyleFNPT
Pressure Rating600 psi CWP
Body MaterialBrass
Port TypeFull
Softgoods MaterialRPTFE
Actuator TypeLever Operated
Ball Material316 Stainless Steel
Inlet to Outlet Length2.51 in
Manufacturer NameApollo Conbraco
Series77F-140
Temperature Rating0 to 400 deg F
Top to Inlet Center1.91 in
Trim Material316 Stainless Steel Stem and RPTFE Seat
Type2-Piece
ApplicationSuitable For A Wide Range Of Flow Control Applications Including Hvac, Fuel Gas, Fire Protection, Irrigation Etc
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM B283 Alloy C37700 | ARRA Compliant | MSS-SP-110 | IAPMO IGC-157 Ball Valves | CGA 3.16 | CGA CR91-002 (5 PSI) | ANSI Z21.15, CGA 9.1 (1/2 PSI) | ASME B16.44 | ASME B16.33 | FM 1140 | UL YSDT/MHKZ/YQNZ/YRBX/YRPVc | UL VQGU | PROP65: Cancer and Reproductive Harm

Item Features

  • Heavy pattern forged design
  • Corrosion resistant materials Premium RPTFE seats and packing
  • Adjustable stem packing
  • Blow-out proof stem
  • Silicone free assembly
  • 100% factory tested
  • Vacuum service to 29 in Hg
  • Corrosion resistant plated steel nut
  • ASTM B283-C37700 retainer
  • ASTM B16-C36000 brass gland
  • 150 psi steam working pressure
