Apollo 77F-100 Series Ball Valve

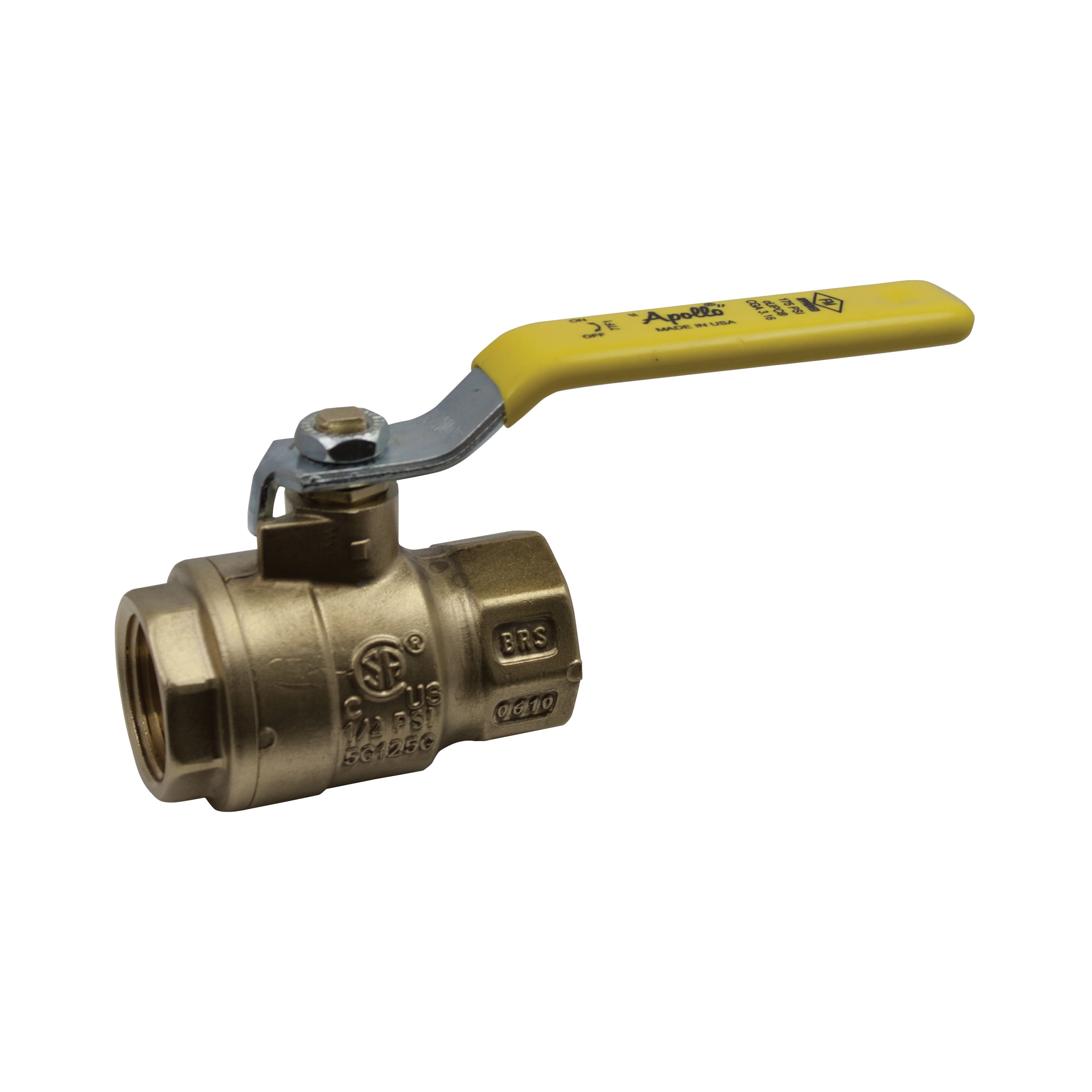

Apollo™ 77F14301 77F-140 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Forged Brass Body, Full Port, Domestic

CBPN:195689

UPC:670750951411

MPN:77F-143-01

Price:
$27.85 / EA
Prop 65:

DESCRIPTION

Apollo™, 77F14301, Ball Valve, 2-Piece, Series: 77F-140, 1/2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Standard Lever Actuator, 316 Stainless Steel Ball, 2-1/4 in Inlet to Outlet Length, 1.66 in Top to Inlet Center, Forged Brass Body, Stainless Steel Stem and RPTFE Seat Trim, Domestic

The Apollo™ 77F-100 series is a full port forged brass ball valve suitable for a wide range of flow control applications including HVAC, fuel gas, fire protection, irrigation etc. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly Made in the USA.

Apollo™ 77F14301 77F-140 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Forged Brass Body, Full Port, Domestic

CBPN:195689

MPN:77F-143-01

UPC:670750951411

Price:
$27.85 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™, 77F14301, Ball Valve, 2-Piece, Series: 77F-140, 1/2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Standard Lever Actuator, 316 Stainless Steel Ball, 2-1/4 in Inlet to Outlet Length, 1.66 in Top to Inlet Center, Forged Brass Body, Stainless Steel Stem and RPTFE Seat Trim, Domestic

The Apollo™ 77F-100 series is a full port forged brass ball valve suitable for a wide range of flow control applications including HVAC, fuel gas, fire protection, irrigation etc. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly Made in the USA.

Specifications

BrandApollo™
Weight0.47lbs
Nominal Size1/2 in
End StyleFNPT
Pressure Rating600 psi CWP
Body MaterialBrass
Port TypeFull
Softgoods MaterialRPTFE
Actuator TypeStandard Lever
Ball Material316 Stainless Steel
Inlet to Outlet Length2-1/4 in
Manufacturer NameApollo Conbraco
Series77F-140
Temperature Rating0 to 400 deg F
Top to Inlet Center1.66 in
Trim MaterialStainless Steel Stem and RPTFE Seat
Type2-Piece
ApplicationFlow Control Applications Including HVAC, Fuel Gas, Fire Protection and Irrigation
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM B283-C37700 Body | ASTM B16-C36000 Ball/Stem | ARRA Compliant | FM 1140 | IAPMO IGC-157 | UL YSDT/MHKZ/YQNZ/YRBX/YRPV/VQGU | PROP65: Cancer and Reproductive Harm

Item Features

  • Heavy pattern forged design
  • Corrosion resistant materials
  • Adjustable stem packing
  • Blow-out proof stem
  • Silicone free assembly
  • 100% factory tested
  • 150 psi working steam pressure
  • Vacuum service to 29 in Hg
