Apollo 77F-100 Series Ball Valve

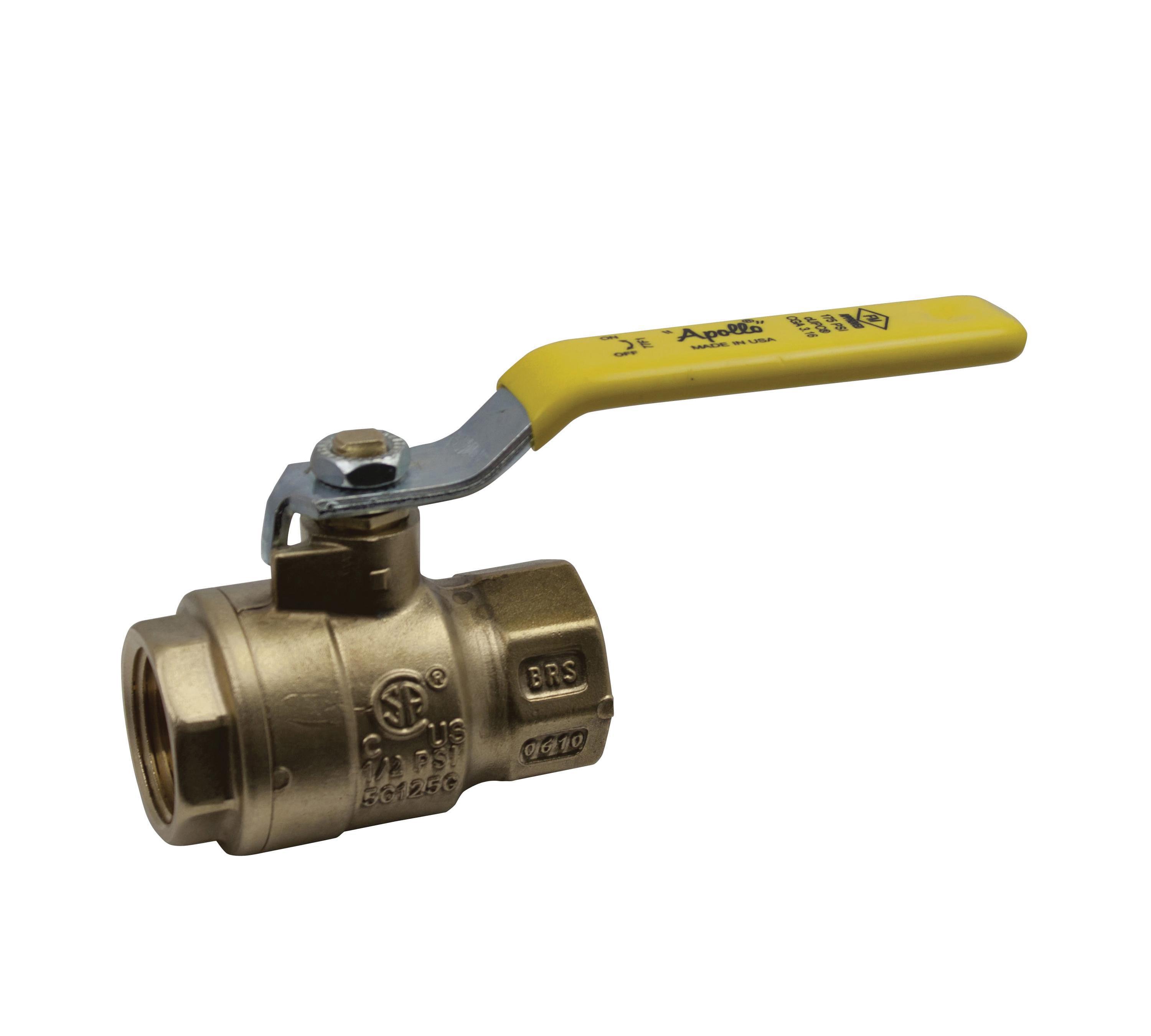

Apollo™ 77F10801 77F-100 2-Piece Ball Valve, 2 in Nominal, FNPT End Style, Full Port, RPTFE Softgoods, Domestic

CBPN:12003

UPC:670750707131

MPN:77F-108-01

Price:
$135.92 / EA
Prop 65:

DESCRIPTION

Apollo™, 77F10801, Ball Valve, 2-Piece, Series: 77F-100, 2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Standard Lever Actuator, Chrome Plated Brass Ball, 4.47 in Inlet to Outlet Length, 3.69 in Top to Inlet Center, RPTFE Softgoods, Domestic

The Apollo™ 77F-100 series is a full port forged brass ball valve suitable for a wide range of flow control applications including HVAC, fuel gas, fire protection, irrigation etc. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly Made in the USA.

Apollo™ 77F10801 77F-100 2-Piece Ball Valve, 2 in Nominal, FNPT End Style, Full Port, RPTFE Softgoods, Domestic

CBPN:12003

MPN:77F-108-01

UPC:670750707131

Price:
$135.92 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™, 77F10801, Ball Valve, 2-Piece, Series: 77F-100, 2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Standard Lever Actuator, Chrome Plated Brass Ball, 4.47 in Inlet to Outlet Length, 3.69 in Top to Inlet Center, RPTFE Softgoods, Domestic

The Apollo™ 77F-100 series is a full port forged brass ball valve suitable for a wide range of flow control applications including HVAC, fuel gas, fire protection, irrigation etc. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly Made in the USA.

Specifications

BrandApollo™
Weight5.86lbs
Nominal Size2 in
End StyleFNPT
Pressure Rating600 psi CWP
Body MaterialBrass
Port TypeFull
Softgoods MaterialRPTFE
Actuator TypeStandard Lever
Ball MaterialChrome Plated Brass
Inlet to Outlet Length4.47 in
Manufacturer NameApollo Conbraco
Series77F-100
Temperature Rating0 to 400 deg F
Top to Inlet Center3.69 in
Trim MaterialBrass/RPTFE
Type2-Piece
ApplicationFlow Control Applications Including HVAC, Fuel Gas, Fire Protection and Irrigation
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM B283-C37700 Body | ASTM B16-C36000 Ball/Stem | ARRA Compliant | FM 1140 | IAPMO IGC-157 | UL YSDT/MHKZ/YQNZ/YRBX/YRPV/VQGU | PROP65: Cancer and Reproductive Harm

Item Features

  • Heavy pattern forged design
  • Corrosion resistant materials
  • Adjustable stem packing
  • Blow-out proof stem
  • Silicone free assembly
  • 100% factory tested
  • 150 psi working steam pressure
  • Vacuum service to 29 in Hg
