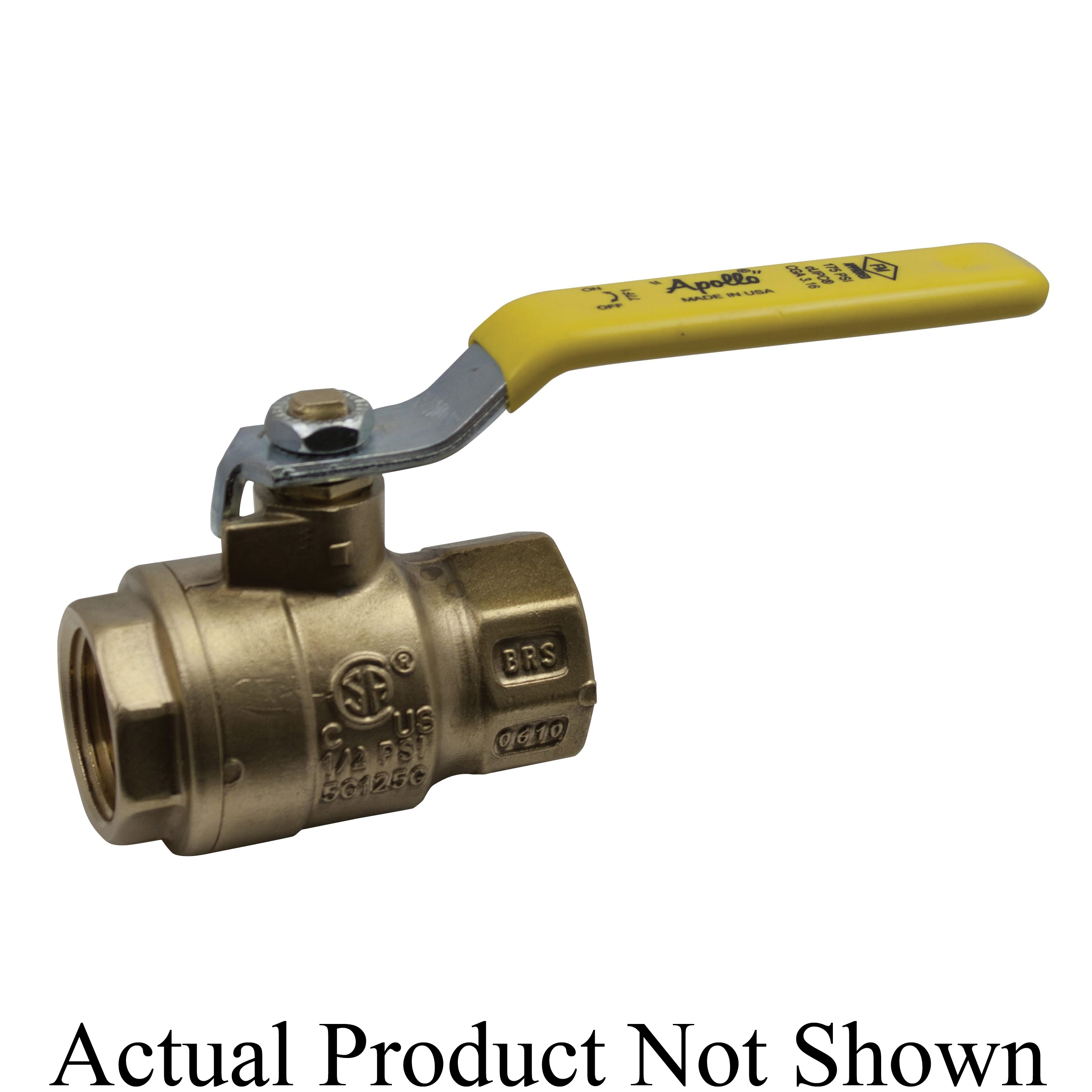

Apollo™ 77F10401 77F-100 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Full Port, RPTFE Softgoods, Domestic
CBPN:12008
UPC:670750674631
MPN:77F-104-01
Price:
$26.19 / EA
Prop 65:
DESCRIPTION
Apollo™, 77F10401, Ball Valve, 2-Piece, Series: 77F-100, 3/4 in Nominal, FNPT End Style, 400 psi CWP Pressure, 0 to 400 deg F, Full Port, Standard Lever Actuator, Chrome Plated Brass Ball, 2.51 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, RPTFE Softgoods, Domestic
The Apollo™ 77F-100 series is a full port forged brass ball valve suitable for a wide range of flow control applications including HVAC, fuel gas, fire protection, irrigation etc. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly Made in the USA.
Apollo™ 77F10401 77F-100 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Full Port, RPTFE Softgoods, Domestic
CBPN:12008
MPN:77F-104-01
UPC:670750674631
Price:
$26.19 / EA
Prop 65:
DESCRIPTION
Apollo™, 77F10401, Ball Valve, 2-Piece, Series: 77F-100, 3/4 in Nominal, FNPT End Style, 400 psi CWP Pressure, 0 to 400 deg F, Full Port, Standard Lever Actuator, Chrome Plated Brass Ball, 2.51 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, RPTFE Softgoods, Domestic
The Apollo™ 77F-100 series is a full port forged brass ball valve suitable for a wide range of flow control applications including HVAC, fuel gas, fire protection, irrigation etc. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly Made in the USA.
Specifications
Brand: Apollo™
Weight: 0.76lbs
Actuator Type: Standard Lever
Body Material: Brass
End Style: FNPT
Nominal Size: 3/4 in
Series: 77F-100
Temperature Rating: 0 to 400 deg F
Type: 2-Piece
Pressure Rating: 400 psi CWP
Port Type: Full
Softgoods Material: RPTFE
Trim Material: Brass/RPTFE
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 2.51 in
Manufacturer Name: Apollo Conbraco
Top to Inlet Center: 1.91 in
Application: Flow Control Applications Including HVAC, Fuel Gas, Fire Protection and Irrigation
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B283-C37700 Body,ASTM B16-C36000 Ball/Stem,ARRA Compliant,IAPMO IGC-157,UL YSDT/MHKZ/YQNZ/YRBX/YRPV
Item Features
- Heavy pattern forged design
- Corrosion resistant materials
- Adjustable stem packing
- Blow-out proof stem
- Silicone free assembly
- 100% factory tested
- 150 psi working steam pressure
- Vacuum service to 29 in Hg
