Apollo 77F-100 Series Ball Valve

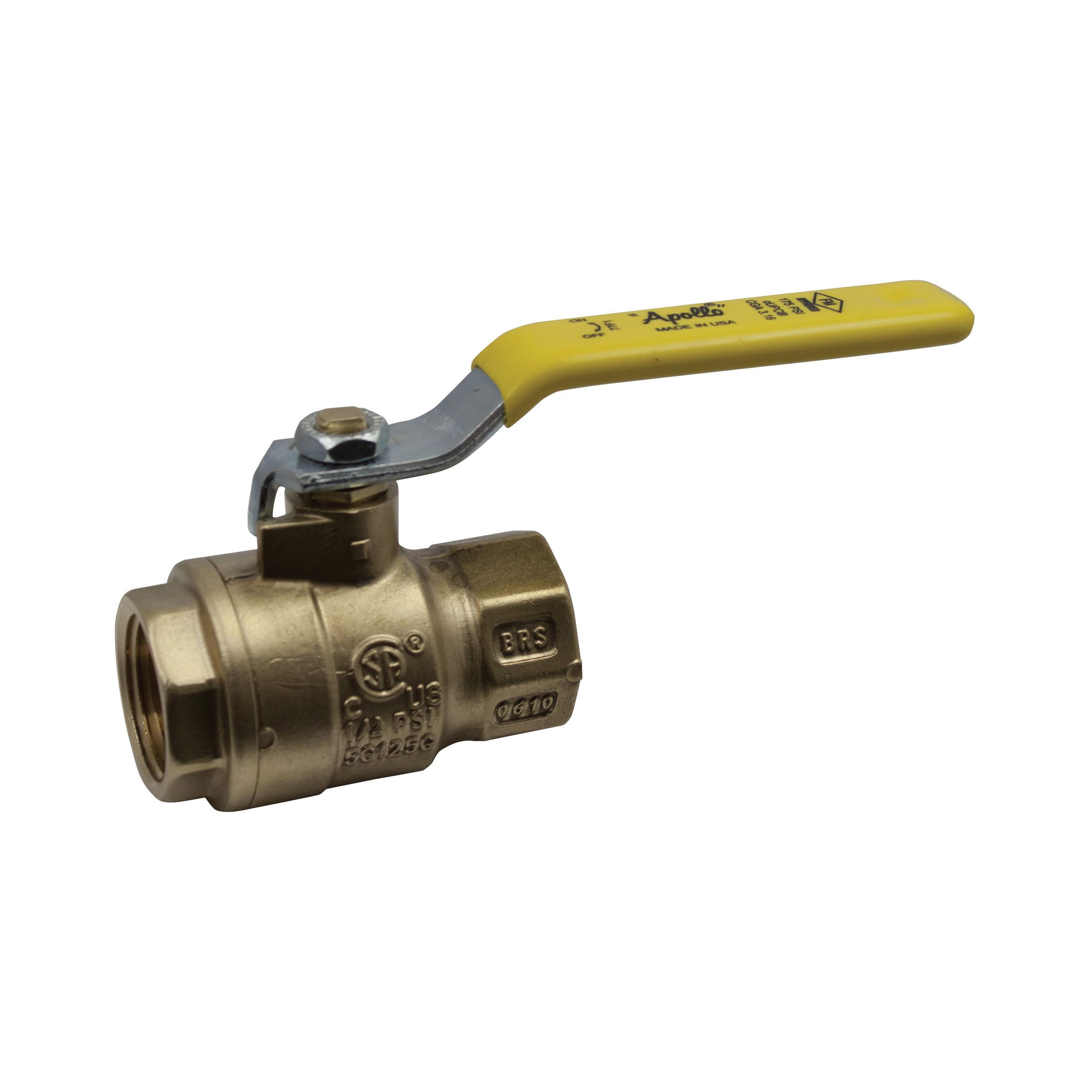

Apollo™ 77F10301 77F-100 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Full Port, RPTFE Softgoods, Domestic

CBPN:166751

UPC:670750707018

MPN:77F-103-01

Price:
$19.90 / EA
Prop 65:

DESCRIPTION

Apollo™, 77F10301, Ball Valve, 2-Piece, Series: 77F-100, 1/2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Standard Lever Actuator, Chrome Plated Brass Ball, 2-1/4 in Inlet to Outlet Length, 1.66 in Top to Inlet Center, RPTFE Softgoods, Domestic

The Apollo™ 77F-100 series is a full port forged brass ball valve suitable for a wide range of flow control applications including HVAC, fuel gas, fire protection, irrigation etc. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly Made in the USA.

Apollo™ 77F10301 77F-100 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Full Port, RPTFE Softgoods, Domestic

CBPN:166751

MPN:77F-103-01

UPC:670750707018

Price:
$19.90 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™, 77F10301, Ball Valve, 2-Piece, Series: 77F-100, 1/2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Standard Lever Actuator, Chrome Plated Brass Ball, 2-1/4 in Inlet to Outlet Length, 1.66 in Top to Inlet Center, RPTFE Softgoods, Domestic

The Apollo™ 77F-100 series is a full port forged brass ball valve suitable for a wide range of flow control applications including HVAC, fuel gas, fire protection, irrigation etc. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly Made in the USA.

Specifications

BrandApollo™
Weight0.47lbs
Actuator TypeStandard Lever
Body MaterialBrass
End StyleFNPT
Nominal Size1/2 in
Series77F-100
Temperature Rating0 to 400 deg F
Type2-Piece
Pressure Rating600 psi CWP
Port TypeFull
Softgoods MaterialRPTFE
Trim MaterialBrass/RPTFE
Ball MaterialChrome Plated Brass
Inlet to Outlet Length2-1/4 in
Manufacturer NameApollo Conbraco
Top to Inlet Center1.66 in
ApplicationFlow Control Applications Including HVAC, Fuel Gas, Fire Protection and Irrigation
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM B283-C37700 Body,ASTM B16-C36000 Ball/Stem,ARRA Compliant,FM 1140,IAPMO IGC-157,UL YSDT/MHKZ/YQNZ/YRBX/YRPV/VQGU

Item Features

  • Heavy pattern forged design
  • Corrosion resistant materials
  • Adjustable stem packing
  • Blow-out proof stem
  • Silicone free assembly
  • 100% factory tested
  • 150 psi working steam pressure
  • Vacuum service to 29 in Hg
