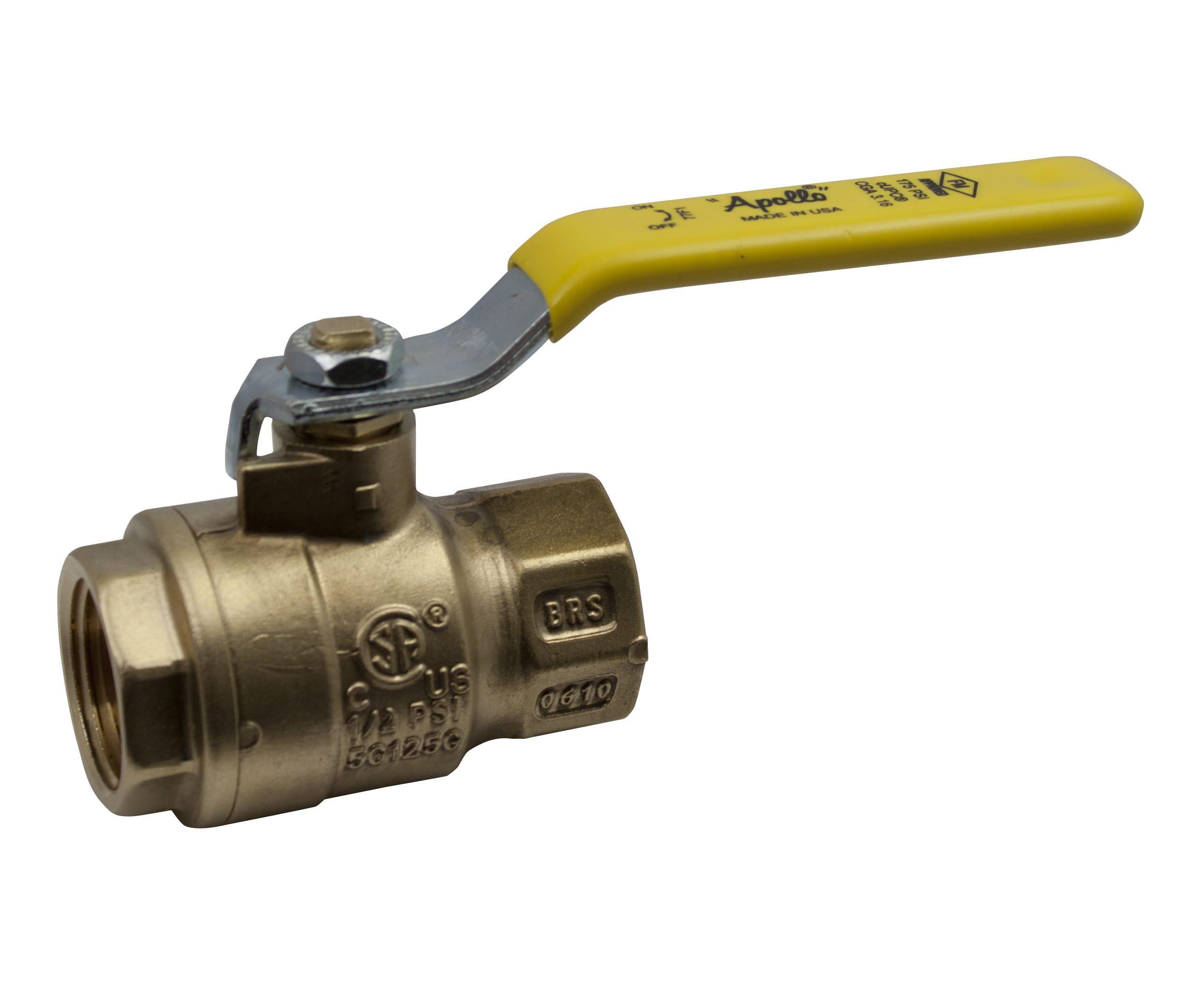

Apollo 77F-100 Series Ball Valve

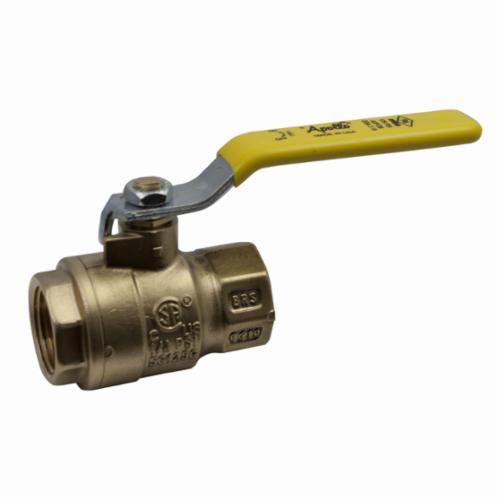

Apollo™ 77F10101 77F-100 2-Piece Ball Valve, 1/4 in Nominal, FNPT End Style, Full Port, RPTFE Softgoods, Domestic

CBPN:12006

UPC:670750207860

MPN:77F-101-01

Price:
$18.84 / EA
Prop 65:

DESCRIPTION

Apollo™ 77F10101, Ball Valve, 2-Piece, Series: 77F-100, 1/4 in Nominal, FNPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Standard Lever Actuator, Chrome Plated Brass Ball, 1.62 in Inlet to Outlet Length, 1.61 in Top to Inlet Center, RPTFE Softgoods, Domestic

The Apollo™ 77F-100 series is a full port forged brass ball valve suitable for a wide range of flow control applications including HVAC, fuel gas, fire protection, irrigation etc. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly Made in the USA.

Apollo™ 77F10101 77F-100 2-Piece Ball Valve, 1/4 in Nominal, FNPT End Style, Full Port, RPTFE Softgoods, Domestic

CBPN:12006

MPN:77F-101-01

UPC:670750207860

Price:
$18.84 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ 77F10101, Ball Valve, 2-Piece, Series: 77F-100, 1/4 in Nominal, FNPT End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Standard Lever Actuator, Chrome Plated Brass Ball, 1.62 in Inlet to Outlet Length, 1.61 in Top to Inlet Center, RPTFE Softgoods, Domestic

The Apollo™ 77F-100 series is a full port forged brass ball valve suitable for a wide range of flow control applications including HVAC, fuel gas, fire protection, irrigation etc. These NPT threaded, 2-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly Made in the USA.

Specifications

BrandApollo™
Weight0.33 lbs
Nominal Size1/4 in
End StyleFNPT
Pressure Rating600 psi CWP
Body MaterialBrass
Port TypeFull
Softgoods MaterialRPTFE
Actuator TypeStandard Lever
Ball MaterialChrome Plated Brass
Inlet to Outlet Length1.62 in
Manufacturer NameApollo Conbraco
Series77F-100
Temperature Rating0 to 400 deg F
Top to Inlet Center1.61 in
Trim MaterialBrass/RPTFE
Type2-Piece
ApplicationFlow Control Applications Including HVAC, Fuel Gas, Fire Protection and Irrigation
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM B283-C37700 Body | ASTM B16-C36000 Ball/Stem | ARRA Compliant | FM 1140 | IAPMO IGC-157 | UL YSDT/MHKZ/YQNZ/YRBX/YRPV/VQGU | PROP65: Cancer and Reproductive Harm

Item Features

  • Heavy pattern forged design
  • Corrosion resistant materials
  • Adjustable stem packing
  • Blow-out proof stem
  • Silicone free assembly
  • 100% factory tested
  • 150 psi working steam pressure
  • Vacuum service to 29 in Hg
