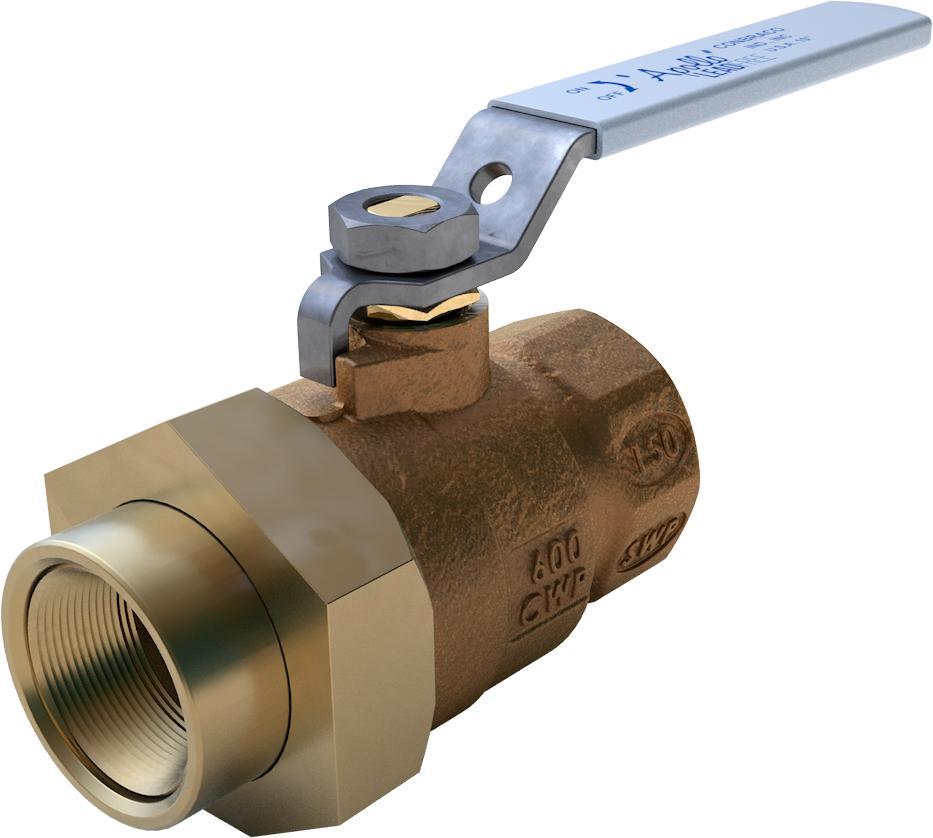

Apollo™ 77CLF30701A 77CLF-300-A Ball Valve, 1-1/2 in Nominal, FNPT x Union End End Style, Lead Free Bronze Body, Full Port, RPTFE/Fluorocarbon Softgoods, Domestic
CBPN: 247635
UPC:670750730733
MPN:77CLF30701A
Price:
$503.14 / EA
Prop 65:
DESCRIPTION
Apollo™ Ball Valve, Series: 77CLF-300-A, 1-1/2 in Nominal, FNPT x Union End, 600 psi CWP, 180 deg F, Full Port, Handle Actuator, Chrome Plated Brass Ball, 4.11 in Inlet to Outlet Length, 3.29 in Top to Inlet Center, Bronze Body, Brass/RPTFE Trim, RPTFE/Fluorocarbon, Domestic
The Apollo™ 77CLF300 Series Union End Ball Valve features dezincification resistant Lead Free bronze body, generously sized RPTFE seats and stem packing, and a lead free Solid Ball design that delivers true full-port flow performance. Cast and machined in Apollo™ South Carolina manufacturing plants using lead free materials.
Apollo™ 77CLF30701A 77CLF-300-A Ball Valve, 1-1/2 in Nominal, FNPT x Union End End Style, Lead Free Bronze Body, Full Port, RPTFE/Fluorocarbon Softgoods, Domestic
CBPN: 247635
MPN:77CLF30701A
UPC:670750730733
Price:
$503.14 / EA
Prop 65:
DESCRIPTION
Apollo™ Ball Valve, Series: 77CLF-300-A, 1-1/2 in Nominal, FNPT x Union End, 600 psi CWP, 180 deg F, Full Port, Handle Actuator, Chrome Plated Brass Ball, 4.11 in Inlet to Outlet Length, 3.29 in Top to Inlet Center, Bronze Body, Brass/RPTFE Trim, RPTFE/Fluorocarbon, Domestic
The Apollo™ 77CLF300 Series Union End Ball Valve features dezincification resistant Lead Free bronze body, generously sized RPTFE seats and stem packing, and a lead free Solid Ball design that delivers true full-port flow performance. Cast and machined in Apollo™ South Carolina manufacturing plants using lead free materials.
Specifications
Brand: Apollo™
Weight: 4.961 lbs
Nominal Size: 1-1/2 in
End Style: FNPT x Union End
Pressure Rating: 600 psi CWP
Body Material: Lead Free Bronze
Port Type: Full
Softgoods Material: RPTFE/Fluorocarbon
Actuator Type: Lever Handle
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 4.11 in
Manufacturer Name: Apollo Conbraco
Series: 77CLF-300-A
Temperature Rating: 180 deg F
Top to Inlet Center: 3.29 in
Trim Material: Brass/RPTFE
Type: Union End
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: C27451 Stem/Ball | C89836 Body | CRN OC10908.5C | Federal Public Law 111-380 | MSS SP-110 | NSF/ANSI 61/372 | PROP65: Cancer and Reproductive Harm
Item Features
- Lead free brass and bronze materials easily identifiable blue lead free hang tag
- Vacuum service to 29 in Hg
- Zinc plated steel handle
- Graphite packing/spiral wound graphite gasket
- Brass stem/RPTFE seat
- RPTFE packing/Fluorocarbon O-ring
