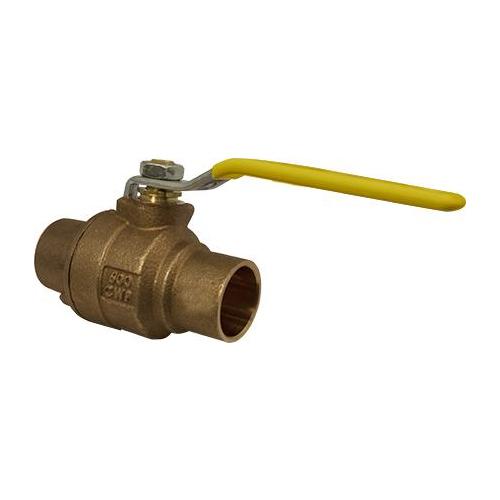

Apollo™ 77C20827A 77C-A 2-Piece Ball Valve, 2 in Nominal, Solder End Style, Bronze Body, Full Port, Domestic
CBPN: 209073
UPC:670750613418
MPN:77C-208-27-A
Price:
$333.12 / EA
Prop 65:
DESCRIPTION
Apollo™ 77C20827A, Ball Valve, 2-Piece, Series: 77C-A, 2 in Nominal, Solder End Style, 600 psi CWP Pressure, 450 deg F, Full Port, Media: Water, Lever Operated Actuator, 6.07 in Inlet to Outlet Length, 3.68 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, Domestic
The Apollo™ 77C-A Contractor Series ball valve features a dezincification resistant bronze body, premium RPTFE seats and stem packing and a Solid Ball design that delivers true full-port flow performance. Cast and machined in Apollo™'s South Carolina manufacturing plants using proven ASTM materials.
Apollo™ 77C20827A 77C-A 2-Piece Ball Valve, 2 in Nominal, Solder End Style, Bronze Body, Full Port, Domestic
CBPN: 209073
MPN:77C-208-27-A
UPC:670750613418
Price:
$333.12 / EA
Prop 65:
DESCRIPTION
Apollo™ 77C20827A, Ball Valve, 2-Piece, Series: 77C-A, 2 in Nominal, Solder End Style, 600 psi CWP Pressure, 450 deg F, Full Port, Media: Water, Lever Operated Actuator, 6.07 in Inlet to Outlet Length, 3.68 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, Domestic
The Apollo™ 77C-A Contractor Series ball valve features a dezincification resistant bronze body, premium RPTFE seats and stem packing and a Solid Ball design that delivers true full-port flow performance. Cast and machined in Apollo™'s South Carolina manufacturing plants using proven ASTM materials.
Specifications
Brand: Apollo™
Weight: 8.5 lbs
Nominal Size: 2 in
End Style: Solder
Pressure Rating: 600 psi CWP
Body Material: Bronze
Port Type: Full
Softgoods Material: RPTFE
Actuator Type: Lever Operated
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 6.07 in
Manufacturer Name: Apollo Conbraco
Media: Water
Series: 77C-A
Temperature Rating: 450 deg F
Top to Inlet Center: 3.68 in
Trim Material: Brass Stem and RPTFE Seat
Type: 2-Piece
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B16 Stem | ASTM B584 Retainer | CRN OC10908.5C | IAPMO R and T/UPC IGC Z1157 | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- Blow-out proof stem
- Adjustable stem packing
- Full port solid ball design
- 100% factory tested
- Zinc plated steel nut
- Steel, zinc plated with vinyl grip handle
- Vacuum service to 29 in Hg
- Locking handle
- 150 psi steam working pressure
Apollo 77C-208-27-A Spare Parts
CBPN:
297687
MPN:
77C00801A
Check Availability
Price:
$108.77 / EA
