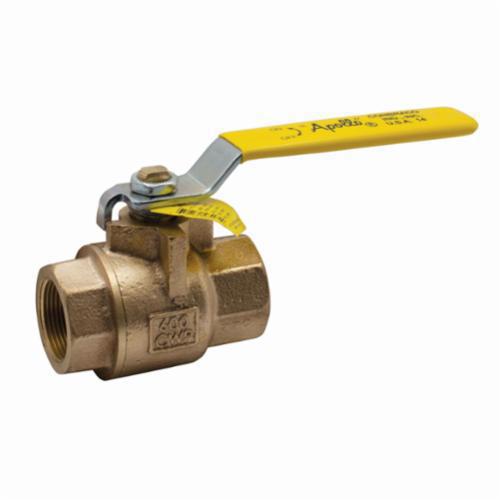

Apollo™ 77C14401A 77C-140 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Bronze Body, Full Port, RPTFE Softgoods, Domestic
CBPN: 111355
UPC:670750610684
MPN:77C14401A
Price:
$87.54 / EA
Prop 65:
DESCRIPTION
Apollo™, 77C14401A, Ball Valve, 2-Piece, Series: 77C-140, 3/4 in Nominal, FNPT End Style, 600 psi CWP Pressure, 450 deg F, Full Port, Media: Water, Lever Operated Actuator, 316 Stainless Steel Ball, 2.67 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem/RPTFE Seat Trim, RPTFE Softgoods, Domestic
The Apollo™ 77C-A Contractor Series ball valve features a dezincification resistant bronze body, premium RPTFE seats and stem packing and a Solid Ball design that delivers true full-port flow performance. Cast and machined in Apollo™'s South Carolina manufacturing plants using proven ASTM materials.
Apollo™ 77C14401A 77C-140 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Bronze Body, Full Port, RPTFE Softgoods, Domestic
CBPN: 111355
MPN:77C14401A
UPC:670750610684
Price:
$87.54 / EA
Prop 65:
DESCRIPTION
Apollo™, 77C14401A, Ball Valve, 2-Piece, Series: 77C-140, 3/4 in Nominal, FNPT End Style, 600 psi CWP Pressure, 450 deg F, Full Port, Media: Water, Lever Operated Actuator, 316 Stainless Steel Ball, 2.67 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem/RPTFE Seat Trim, RPTFE Softgoods, Domestic
The Apollo™ 77C-A Contractor Series ball valve features a dezincification resistant bronze body, premium RPTFE seats and stem packing and a Solid Ball design that delivers true full-port flow performance. Cast and machined in Apollo™'s South Carolina manufacturing plants using proven ASTM materials.
Specifications
Brand: Apollo™
Weight: 10.01 lbs
Nominal Size: 3/4 in
End Style: FNPT
Pressure Rating: 600 psi CWP
Body Material: Bronze
Port Type: Full
Softgoods Material: RPTFE
Actuator Type: Lever Operated
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 2.67 in
Manufacturer Name: Aalberts Integrated Piping Systems, Apollo Conbraco
Media: Water
Series: 77C-140
Temperature Rating: 450 deg F
Top to Inlet Center: 1.91 in
Trim Material: 316 Stainless Steel Stem and RPTFE Seat, 316 Stainless Steel Stem/RPTFE Seat
Type: 2-Piece
Application: heating | cooling | steam | vacuum
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B584 Valve Body | CRN OC10908.5C | IAPMO R and T/UPC IGC Z1157 | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- Blow-out proof stem
- Adjustable stem packing
- Full port solid ball design
- 100% factory tested
- Zinc plated steel nut
- Steel, zinc plated with vinyl grip handle
- Vacuum service to 29 in Hg
- Standard lever and trim
- 150 psi steam working pressure
