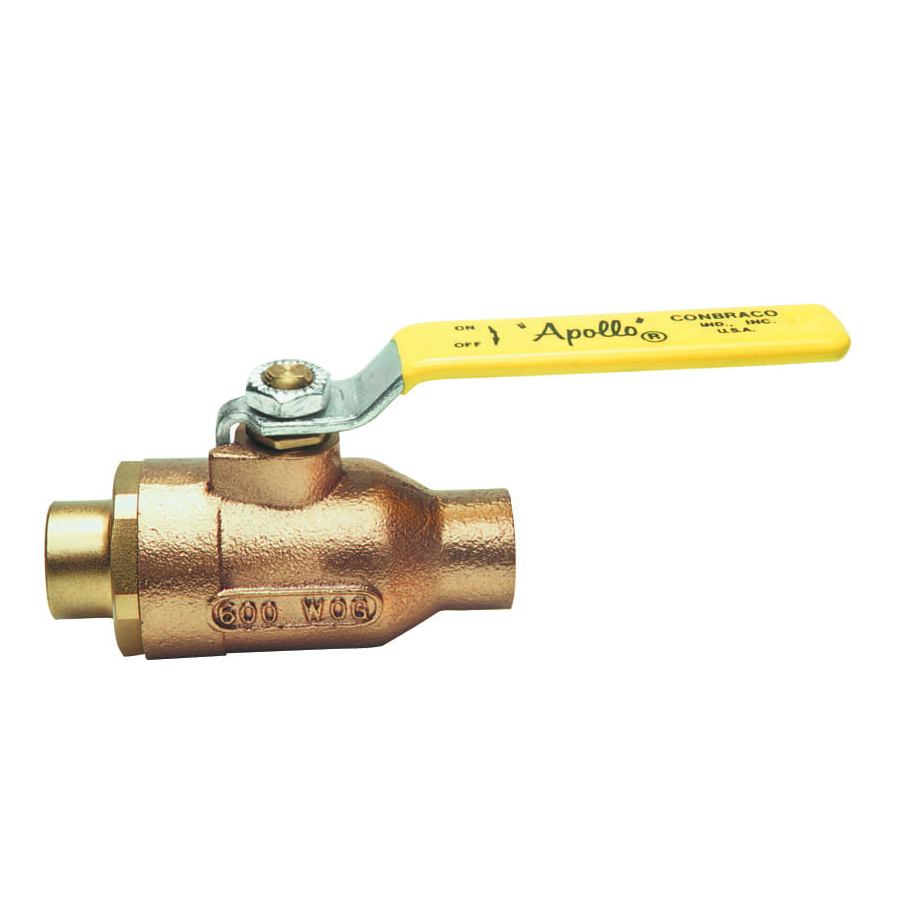

Apollo™ 77-204-01 77-200 2-Piece Ball Valve With 2 Point Mounting, 3/4 in Nominal, Solder End Style, Bronze Body, Full Port, MPTFE Softgoods, Domestic
CBPN: 1511
UPC:670750707148
MPN:7720401
Price:
$92.79 / EA
Clearance Item
Clearance Pricing applies only to in-stock items at the Plymouth Meeting, PA warehouse. Additional quantities will be quoted for approval. Inventory is subject to prior sale.
Prop 65:
DESCRIPTION
Apollo™ 7720401, Ball Valve, 2-Piece, Series: 77-200, 3/4 in Nominal, Solder End Style, 600 psi CWP Pressure, 500 deg F, Full Port, Lever Handle Actuator, 4.28 in Inlet to Outlet Length, 2.12 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, MPTFE Softgoods, Domestic
The Apollo™ 77-200 Series is designed to be soldered into lines without disassembly. This allows a factory tested valve to be installed without disturbing the seats and seals. Designed for soft solder with melt points less than 500 deg F.
Apollo™ 77-204-01 77-200 2-Piece Ball Valve With 2 Point Mounting, 3/4 in Nominal, Solder End Style, Bronze Body, Full Port, MPTFE Softgoods, Domestic
CBPN: 1511
MPN:7720401
UPC:670750707148
Price:
$92.79 / EA
Clearance Item
Clearance Pricing applies only to in-stock items at the Plymouth Meeting, PA warehouse. Additional quantities will be quoted for approval. Inventory is subject to prior sale.
Prop 65:
DESCRIPTION
Apollo™ 7720401, Ball Valve, 2-Piece, Series: 77-200, 3/4 in Nominal, Solder End Style, 600 psi CWP Pressure, 500 deg F, Full Port, Lever Handle Actuator, 4.28 in Inlet to Outlet Length, 2.12 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, MPTFE Softgoods, Domestic
The Apollo™ 77-200 Series is designed to be soldered into lines without disassembly. This allows a factory tested valve to be installed without disturbing the seats and seals. Designed for soft solder with melt points less than 500 deg F.
Specifications
Brand: Apollo™
Weight: 2.01 lbs
Nominal Size: 3/4 in
End Style: Solder
Pressure Rating: 600 psi CWP
Body Material: Bronze
Port Type: Full
Softgoods Material: MPTFE
Actuator Type: Lever Handle
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 4.28 in
Manufacturer Name: Apollo Conbraco
Series: 77-200
Temperature Rating: 500 deg F
Top to Inlet Center: 2.12 in
Trim Material: Brass Stem and RPTFE Seat
Type: 2-Piece
Application: Designed for soft solder with melt points less than 500 deg F
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ARRA Compliant | ASTM B584-C84400 Body | ASTM B16 Stem/Ball | ASTM B283-C37700 Ball | CRN OC10908.5C | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- Heavy duty cast bronze body
- Full flow, minimum pressure drop
- Adjustable packing
- Blow-out proof stem design
- RPTFE seats and stuffing box ring
- Cold non-shock
- Vacuum service to 29 in Hg
- Zinc plated steel lever handle with vinyl grip
Apollo 7720401 Spare Parts
CBPN:
297556
MPN:
9000601
Check Availability
Price:
$40.06 / EA
