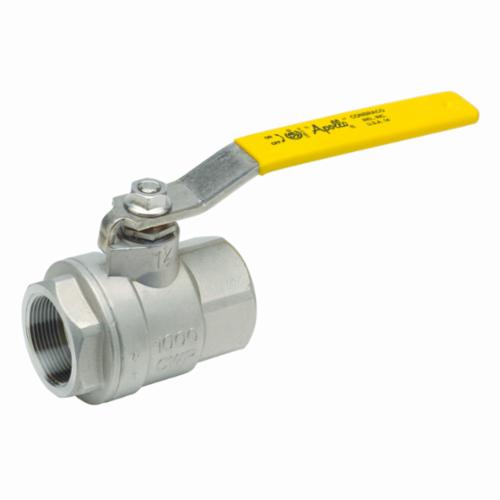

Apollo™ 76F10501A 76F-100-A 2-Piece Standard Configuration Ball Valve, 1 in Nominal, FNPT End Style, Stainless Steel Body, Full Port, MPTFE Softgoods, Domestic
CBPN:47784
UPC:670750614705
MPN:76F-105-01-A
Apollo™ 76F-105-01-A has been discontinued by the manufacturer.
REPLACEMENT
A replacement is available for this item, however, it is not for sale on our website. Please contact us for more information or a quote.
Prop 65:
DESCRIPTION
Apollo™ 76F10501A, Standard Configuration Ball Valve, 2-Piece, Series: 76F-100-A, 1 in Nominal, FNPT End Style, 1000 psi CWP Pressure, Full Port, Media: Water, Lever Operated Actuator, 316 Stainless Steel Ball, 3.34 in Inlet to Outlet Length, 2.27 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/PTFE Trim, MPTFE Softgoods, Domestic
Apollo™ 76F10501A 76F-100-A 2-Piece Standard Configuration Ball Valve, 1 in Nominal, FNPT End Style, Stainless Steel Body, Full Port, MPTFE Softgoods, Domestic
CBPN:47784
MPN:76F-105-01-A
UPC:670750614705
Apollo™ 76F-105-01-A has been discontinued by the manufacturer.
REPLACEMENT
A replacement is available for this item, however, it is not for sale on our website. Please contact us for more information or a quote.
Prop 65:
DESCRIPTION
Apollo™ 76F10501A, Standard Configuration Ball Valve, 2-Piece, Series: 76F-100-A, 1 in Nominal, FNPT End Style, 1000 psi CWP Pressure, Full Port, Media: Water, Lever Operated Actuator, 316 Stainless Steel Ball, 3.34 in Inlet to Outlet Length, 2.27 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/PTFE Trim, MPTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 1.38 lbs
Nominal Size: 1 in
End Style: FNPT
Pressure Rating: 1000 psi CWP
Body Material: Stainless Steel
Port Type: Full
Softgoods Material: MPTFE
Actuator Type: Lever Operated
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 3.34 in
Manufacturer Name: Apollo Conbraco
Media: Water
Series: 76F-100-A
Top to Inlet Center: 2.27 in
Trim Material: 316 Stainless Steel/PTFE
Type: 2-Piece
Includes: Adjustable Packing Gland
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A276 | Annex G | Drinking Water System Components Lead Content | MSS SP-110 | NACE MR0175 (2000)/MR0103 (2012) | NSF/ANSI 61-8 | NSF 372 | PROP65: Cancer and Reproductive Harm
Item Features
- Investment cast components
- Blow-out proof stem design
- Vacuum service to 29 in Hg
- 304 stainless steel lever nut
- RPTFE (1/2 to 3 in) body seal
- Stainless steel with vinyl lever and grip
- 150 psig saturated steam
