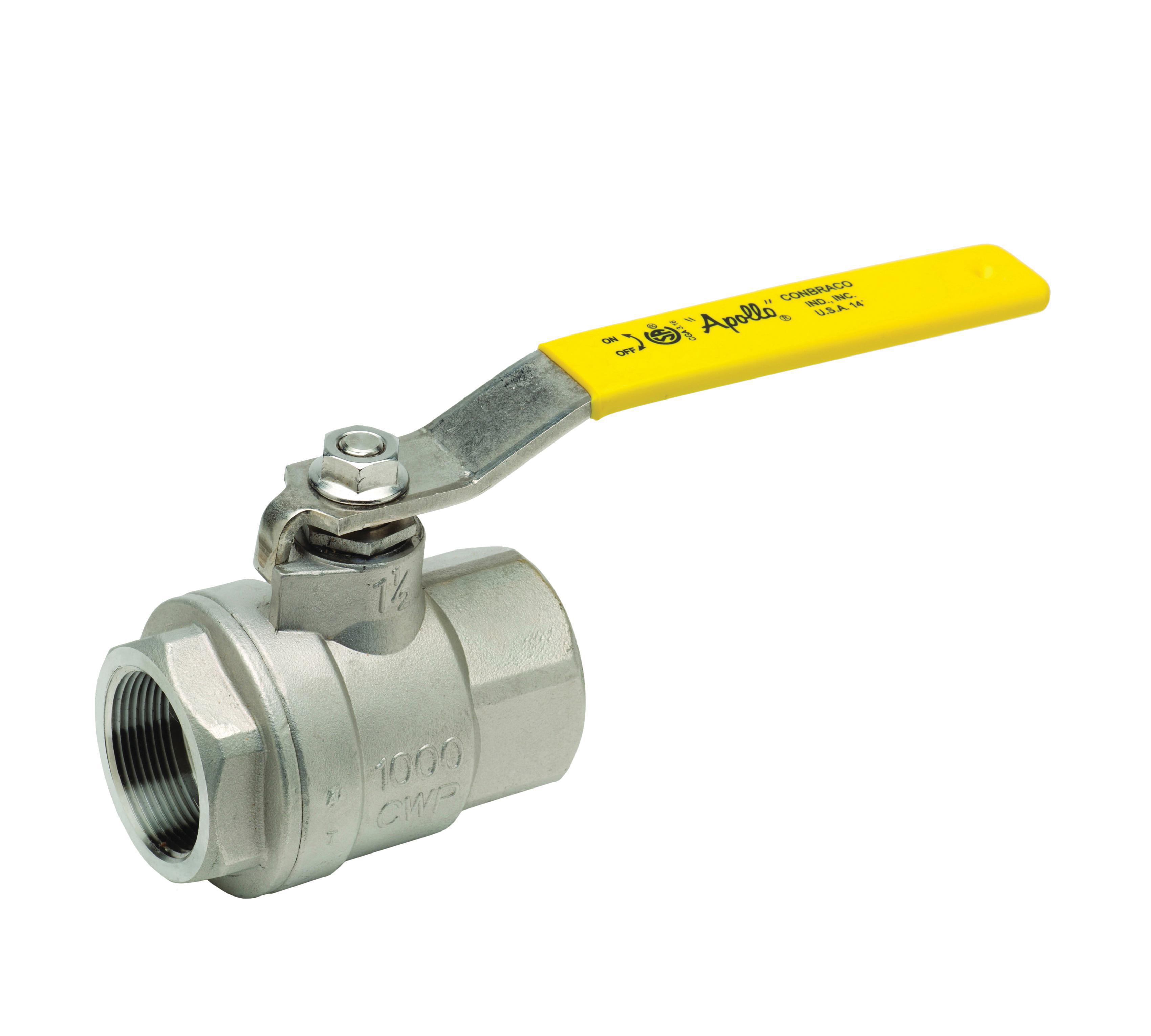

Apollo™ 76F10401A 76F-100-A 2-Piece Standard Configuration Ball Valve, 3/4 in Nominal, FNPT End Style, Stainless Steel Body, Full Port, MPTFE Softgoods, Domestic
CBPN:47783
UPC:670750614682
MPN:76F-104-01-A
Apollo™ 76F-104-01-A has been discontinued by the manufacturer.
REPLACEMENT
A replacement is available for this item, however, it is not for sale on our website. Please contact us for more information or a quote.
Prop 65:
DESCRIPTION
Apollo™ 76F10401A, Standard Configuration Ball Valve, 2-Piece, Series: 76F-100-A, 3/4 in Nominal, FNPT End Style, 1000 psi CWP Pressure, Full Port, Media: Water, Lever Operated Actuator, 316 Stainless Steel Ball, 2.77 in Inlet to Outlet Length, 1.96 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/PTFE Trim, MPTFE Softgoods, Domestic
Apollo™ 76F10401A 76F-100-A 2-Piece Standard Configuration Ball Valve, 3/4 in Nominal, FNPT End Style, Stainless Steel Body, Full Port, MPTFE Softgoods, Domestic
CBPN:47783
MPN:76F-104-01-A
UPC:670750614682
Apollo™ 76F-104-01-A has been discontinued by the manufacturer.
REPLACEMENT
A replacement is available for this item, however, it is not for sale on our website. Please contact us for more information or a quote.
Prop 65:
DESCRIPTION
Apollo™ 76F10401A, Standard Configuration Ball Valve, 2-Piece, Series: 76F-100-A, 3/4 in Nominal, FNPT End Style, 1000 psi CWP Pressure, Full Port, Media: Water, Lever Operated Actuator, 316 Stainless Steel Ball, 2.77 in Inlet to Outlet Length, 1.96 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/PTFE Trim, MPTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 0.91 lbs
Nominal Size: 3/4 in
End Style: FNPT
Pressure Rating: 1000 psi CWP
Body Material: Stainless Steel
Port Type: Full
Softgoods Material: MPTFE
Actuator Type: Lever Operated
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 2.77 in
Manufacturer Name: Apollo Conbraco
Media: Water
Series: 76F-100-A
Top to Inlet Center: 1.96 in
Trim Material: 316 Stainless Steel/PTFE
Type: 2-Piece
Includes: Adjustable Packing Gland
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A276 | Annex G | Drinking Water System Components Lead Content | MSS SP-110 | NACE MR0175 (2000)/MR0103 (2012) | NSF/ANSI 61-8 | NSF 372 | PROP65: Cancer and Reproductive Harm
Item Features
- Investment cast components
- Blow-out proof stem design
- Vacuum service to 29 in Hg
- 304 stainless steel lever nut
- RPTFE (1/2 to 3 in) body seal
- Stainless steel with vinyl lever and grip
- 150 psig saturated steam
- MPTFE stem packing/body seal
