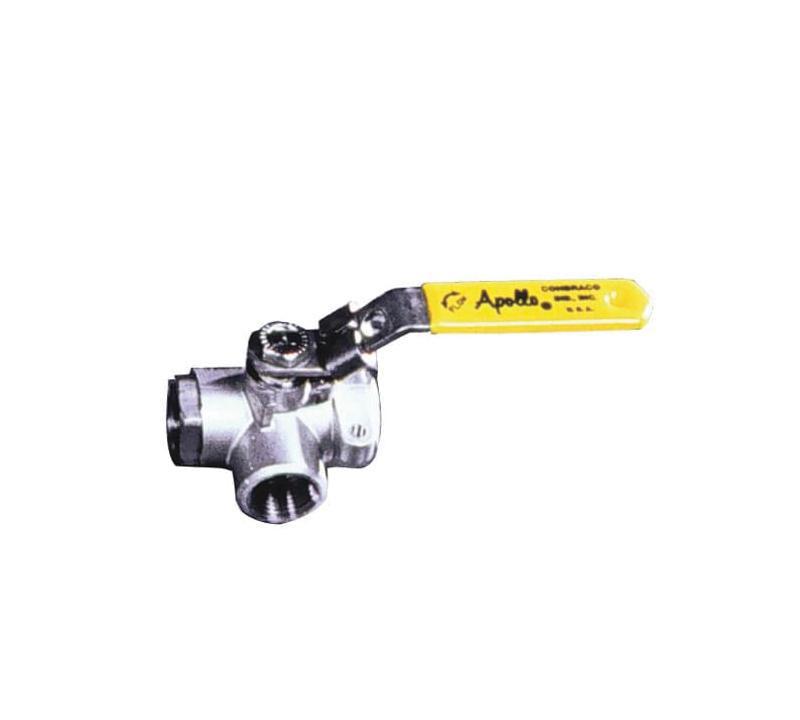

Apollo™ 76-605-27A 76-600 2-Piece 3-Way Diversion Ball Valve, 1 in Nominal, FNPT End Style, Stainless Steel Body
CBPN: 188236
UPC:670750475665
MPN:7660527A
Price:
$418.76 / EA
Prop 65:
DESCRIPTION
Apollo™ 7660527A, Diversion Ball Valve, 3-Way, Series: 76-600, 1 in Nominal, FNPT End Style, 800 psi CWP Pressure, Standard Port, Latch-Lock Lever Actuator, 316 Stainless Steel Ball, 3.32 in Inlet to Outlet Length, 2.15 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/RPTFE Trim, MPTFE/PTFE Softgoods, Domestic
Apollo™ 76-605-27A 76-600 2-Piece 3-Way Diversion Ball Valve, 1 in Nominal, FNPT End Style, Stainless Steel Body
CBPN: 188236
MPN:7660527A
UPC:670750475665
Price:
$418.76 / EA
Prop 65:
DESCRIPTION
Apollo™ 7660527A, Diversion Ball Valve, 3-Way, Series: 76-600, 1 in Nominal, FNPT End Style, 800 psi CWP Pressure, Standard Port, Latch-Lock Lever Actuator, 316 Stainless Steel Ball, 3.32 in Inlet to Outlet Length, 2.15 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/RPTFE Trim, MPTFE/PTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 1.86 lbs
Nominal Size: 1 in
End Style: FNPT
Pressure Rating: 800 psi CWP
Body Material: Stainless Steel
Port Type: Standard
Softgoods Material: MPTFE/PTFE
Actuator Type: Latch-Lock Lever
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 3.32 in
Manufacturer Name: Apollo Conbraco
Series: 76-600
Top to Inlet Center: 2.15 in
Trim Material: 316 Stainless Steel/RPTFE
Type: 3-Way
Includes: Stainless Steel Latch-Lock Lever, Nut
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A351 CF8M Body | ASTM A276 Stem/Ball | Federal Public Law 111-380 | Meets NACE MR0175 (2000)/MR0103 (2012) | NSF/ANSI 61, Annex G | PROP65: Cancer and Reproductive Harm
Item Features
- Reinforced seat
- Blow-out proof stem design
- Adjustable packing gland
- Investment cast body
- Cold non-shock body rating and RPTFE body seal
- The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
Apollo 7660527A Spare Parts
CBPN:
297556
MPN:
9000601
Check Availability
Price:
$40.06 / EA
