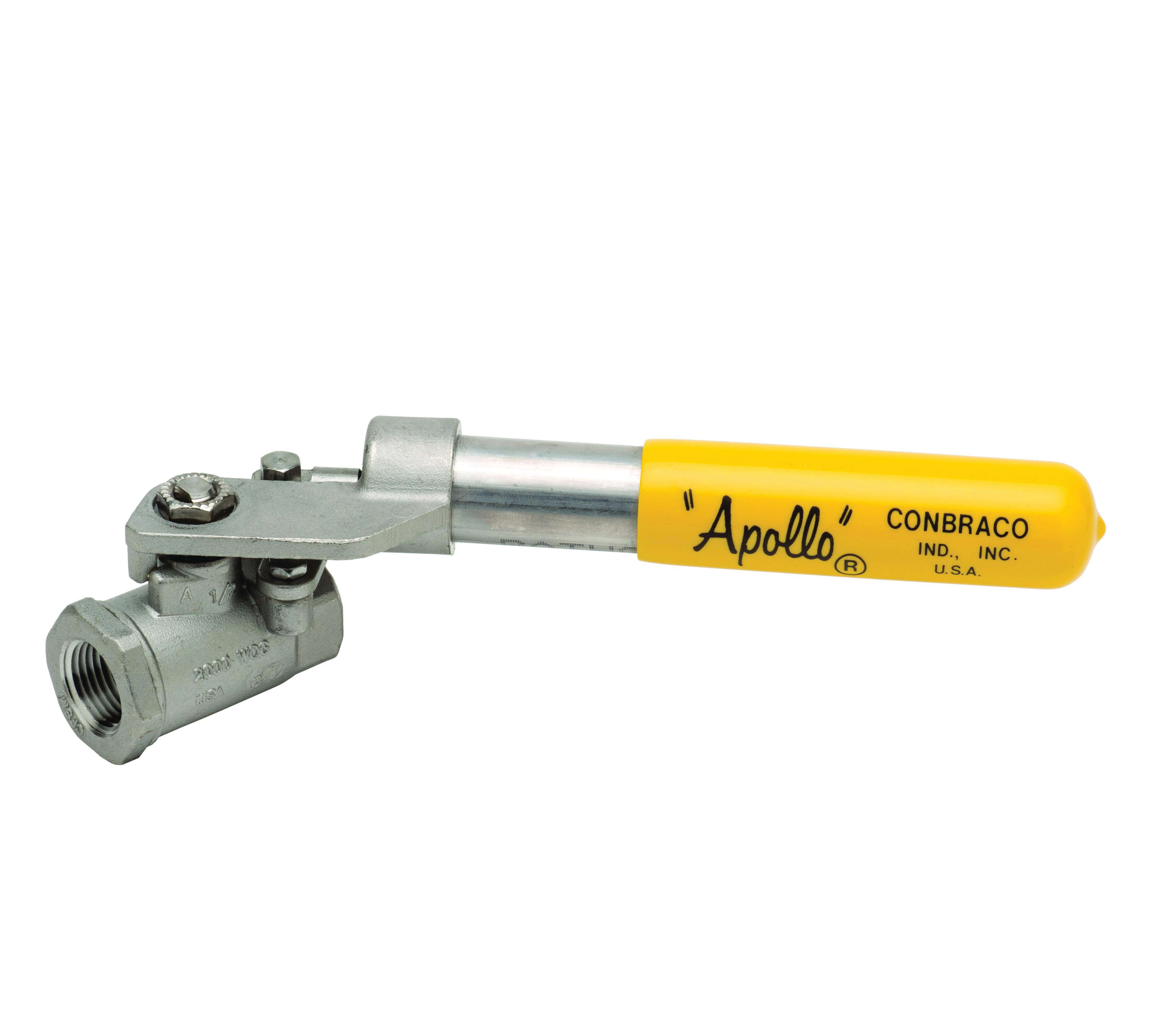

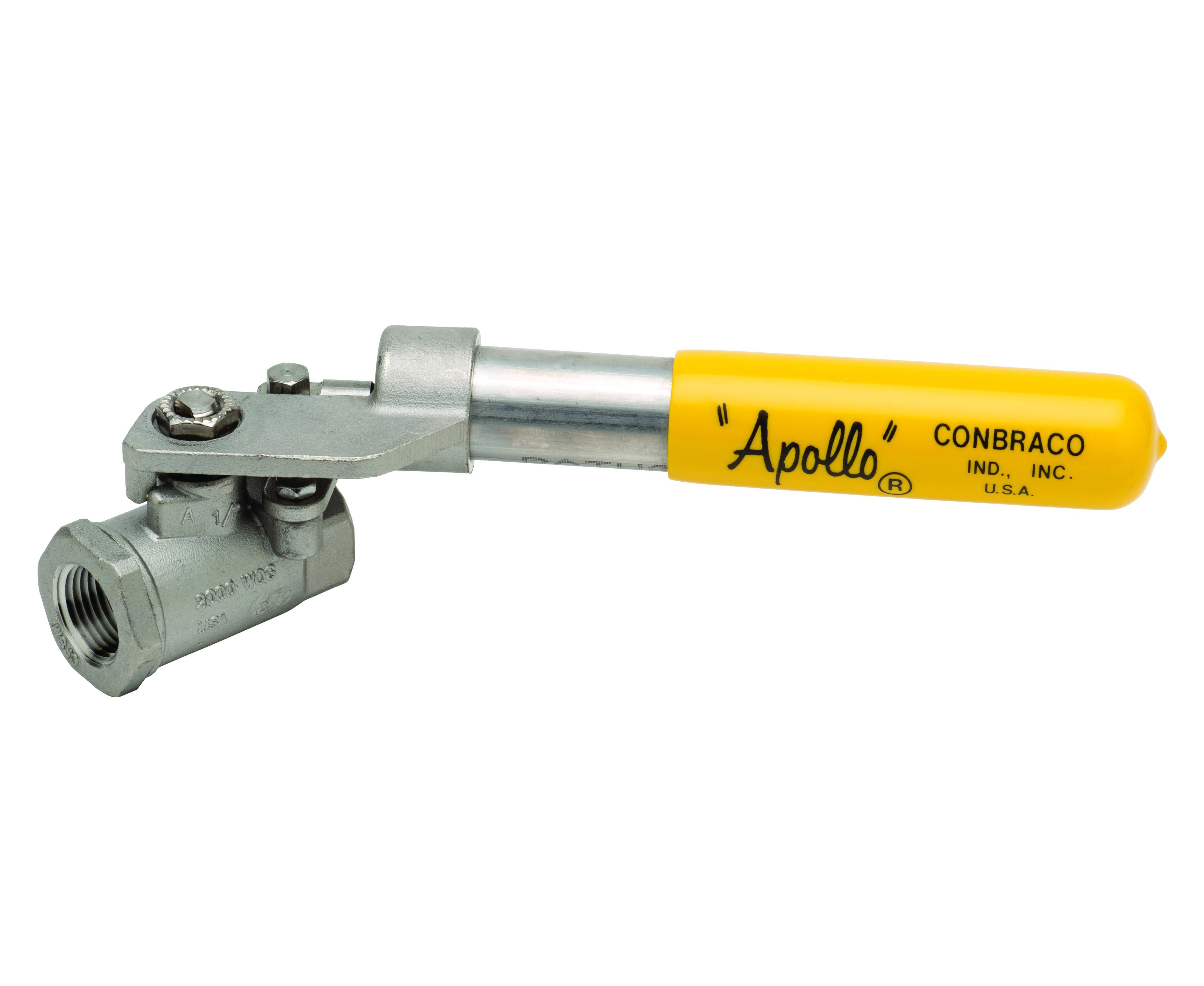

Apollo™ 7650401A 76-500 2-Piece Standard Configuration Ball Valve, 3/4 in Nominal, FNPT End Style, Standard Port, MPTFE/PTFE Softgoods, Domestic
CBPN: 28427
UPC:670750248207
MPN:76-504-01-A
Price:
$325.63 / EA
Prop 65:
DESCRIPTION
Apollo™ 7650401A, Standard Configuration Ball Valve, 2-Piece, Series: 76-500, 3/4 in Nominal, FNPT End Style, 2000 psi CWP Pressure, Standard Port, Spring Return Handle Actuator, Stainless Steel Ball, 3 in Inlet to Outlet Length, 316 Stainless Steel/PTFE Trim, MPTFE/PTFE Softgoods, Domestic, Also Known As Dead Man Valve
Apollo™ 7650401A 76-500 2-Piece Standard Configuration Ball Valve, 3/4 in Nominal, FNPT End Style, Standard Port, MPTFE/PTFE Softgoods, Domestic
CBPN: 28427
MPN:76-504-01-A
UPC:670750248207
Price:
$325.63 / EA
Prop 65:
DESCRIPTION
Apollo™ 7650401A, Standard Configuration Ball Valve, 2-Piece, Series: 76-500, 3/4 in Nominal, FNPT End Style, 2000 psi CWP Pressure, Standard Port, Spring Return Handle Actuator, Stainless Steel Ball, 3 in Inlet to Outlet Length, 316 Stainless Steel/PTFE Trim, MPTFE/PTFE Softgoods, Domestic, Also Known As Dead Man Valve
Specifications
Brand: Apollo™
Weight: 1.97 lbs
Nominal Size: 3/4 in
End Style: FNPT
Pressure Rating: 2000 psi CWP
Body Material: Stainless Steel
Port Type: Standard
Softgoods Material: MPTFE/PTFE
Actuator Type: Spring Return Handle
Ball Material: Stainless Steel
Inlet to Outlet Length: 3 in
Manufacturer Name: Apollo Conbraco
Series: 76-500
Trim Material: 316 Stainless Steel/PTFE
Type: 2-Piece
Includes: Adjustable Packing Gland
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A276 316 Ball/Stem/Retainer/Gland Nut | ASTM A351 CF8M Body | MSS SP-110 | NACE MR0175/MR0103 | PROP65: Cancer and Reproductive Harm
Item Features
- Carbon and graphite reinforced seats (MPTFE)
- All components of lever are stainless steel
- Operating torque is approximately three times standard valve torque
- Blow-out proof stem design
- Investment cast components
- Vacuum service to 29 in Hg
- 150 psig saturated steam
