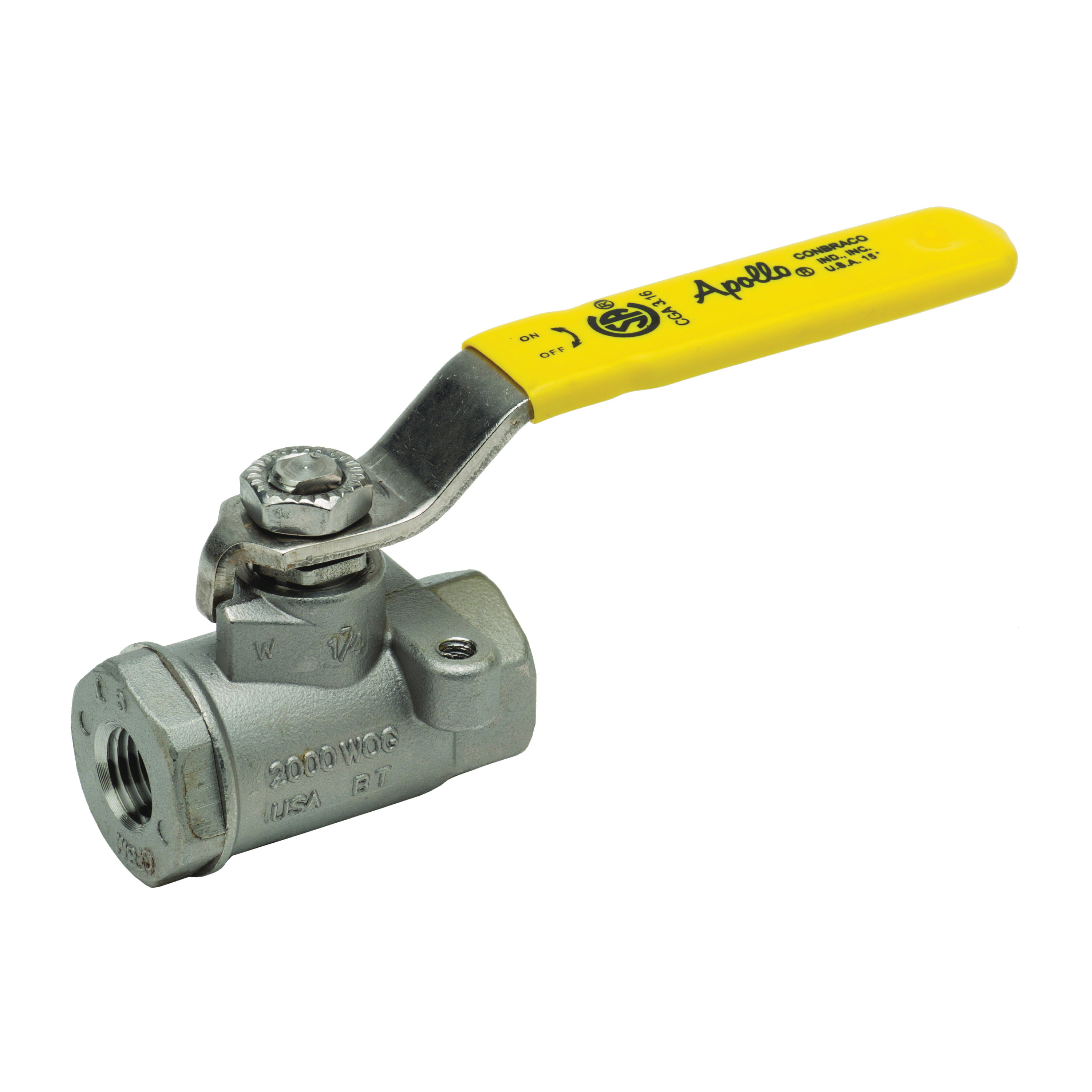

Apollo™ 76-108-27, 76-100 Series 2-Piece Ball Valve, 2 in Nominal, FNPT End Style, 150 lb, Stainless Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic
CBPN:150714
UPC:670750699351
MPN:76-108-27
Price:
$516.99 / EA
Prop 65:
DESCRIPTION
Apollo 76-108-27 Ball Valve, 2-Piece, Series: 76-100, 2 in Nominal, FNPT End Style, 1500 CWP (psig) / 150 psig Saturated Steam Pressure, Media: Gas/Water, 1-1/2 in Orifice, Lever-Lock Handle Actuator, 316 Stainless Steel Ball, 5.43 in Inlet to Outlet Length, 2.69 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/RPTFE Trim, Domestic
Apollo™ 76-108-27, 76-100 Series 2-Piece Ball Valve, 2 in Nominal, FNPT End Style, 150 lb, Stainless Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic
CBPN:150714
MPN:76-108-27
UPC:670750699351
Price:
$516.99 / EA
Prop 65:
DESCRIPTION
Apollo 76-108-27 Ball Valve, 2-Piece, Series: 76-100, 2 in Nominal, FNPT End Style, 1500 CWP (psig) / 150 psig Saturated Steam Pressure, Media: Gas/Water, 1-1/2 in Orifice, Lever-Lock Handle Actuator, 316 Stainless Steel Ball, 5.43 in Inlet to Outlet Length, 2.69 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/RPTFE Trim, Domestic
Specifications
Brand: Apollo™
Weight: 5.99 lbs
Nominal Size: 2 in
End Style: FNPT
Pressure Class: 250 lb
Pressure Rating: 150 psi
Body Material: Stainless Steel
Port Type: Standard
Softgoods Material: MPTFE/PTFE
Actuator Type: Lever-Lock Handle
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 5.43 in
Manufacturer Name: Apollo Conbraco
Media: Gas/Water
Orifice Size: 1-1/2 in
Series: 76-100
Top to Inlet Center: 2.69 in
Trim Material: 316 Stainless Steel/RPTFE
Type: 2-Piece
Includes: Adjustable Packing Gland, Mounting Pad, Stainless Steel Latch-Lock Lever, Nut
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A351 CF8M Body | ASTM A276 316 Ball/Stem | MSS SP-110 | MR0103 (2012) | NSF/ANSI 61-8 | Annex G | NACE MR0175 (2000) and NSF 372 | PROP65: Cancer and Reproductive Harm
Item Features
- Investment cast components
- Reinforced seat
- Mounting pad for easy actuator mounting
- Blow-out proof stem design
- Vacuum service to 29 in Hg
- 150 psig steam working pressure
- 304 stainless steel with vinyl grip handle
- 18-8 stainless steel lever nut
