Apollo™ 76-108-01

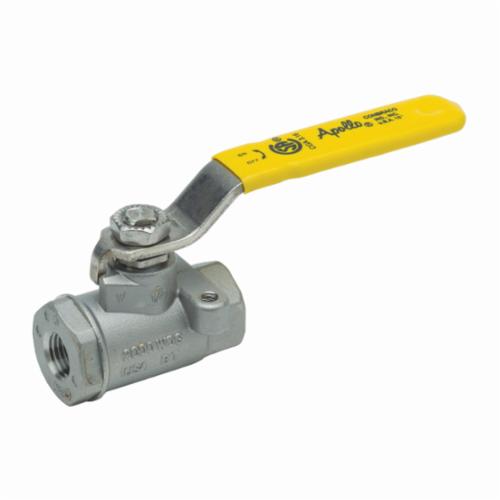

Apollo™ 7610801 76-100 2-Piece Standard Configuration Ball Valve, 2 in Nominal, FNPT End Style, 250 lb, Standard Port, MPTFE/RPTFE Softgoods, Domestic

CBPN:1502

UPC:670750699153

MPN:76-108-01

Price:
$497.10 / EA
Prop 65:

DESCRIPTION

Apollo™, 7610801, Standard Configuration Ball Valve, 2-Piece, Series: 76-100, 2 in Nominal, FNPT End Style, 1500 psi CWP Pressure, 250 lb Pressure Class, Standard Port, Media: Gas/Water, 1-1/2 in Orifice, Lever Handle Actuator, 316 Stainless Steel Ball, 3.24 in Inlet to Outlet Length, 2.69 in Top to Inlet Center, RPTFE/Stainless Steel Trim, MPTFE/RPTFE Softgoods, Domestic

Apollo™ 7610801 76-100 2-Piece Standard Configuration Ball Valve, 2 in Nominal, FNPT End Style, 250 lb, Standard Port, MPTFE/RPTFE Softgoods, Domestic

CBPN:1502

MPN:76-108-01

UPC:670750699153

Price:
$497.10 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™, 7610801, Standard Configuration Ball Valve, 2-Piece, Series: 76-100, 2 in Nominal, FNPT End Style, 1500 psi CWP Pressure, 250 lb Pressure Class, Standard Port, Media: Gas/Water, 1-1/2 in Orifice, Lever Handle Actuator, 316 Stainless Steel Ball, 3.24 in Inlet to Outlet Length, 2.69 in Top to Inlet Center, RPTFE/Stainless Steel Trim, MPTFE/RPTFE Softgoods, Domestic

Specifications

BrandApollo™
Weight6.05lbs
Actuator TypeLever Handle
Body MaterialStainless Steel
End StyleFNPT
Nominal Size2 in
Series76-100
Type2-Piece
Pressure Rating1500 psi CWP
MediaGas/Water
Orifice Size1-1/2 in
Port TypeStandard
Pressure Class250 lb
Softgoods MaterialMPTFE/RPTFE
Trim MaterialRPTFE/Stainless Steel
Ball Material316 Stainless Steel
Inlet to Outlet Length3.24 in
Manufacturer NameApollo Conbraco
Top to Inlet Center2.69 in
IncludesAdjustable Packing Gland
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM A351 CF8M Valve Body,ASTM A276 316 Ball/Stem,NSF/ANSI 61-8,Annex G,NSF 372,Drinking Water System Components Lead Content,NACE MR0175 (2000)/MR0103 (2012),MSS SP-110

Item Features

  • Investment cast components
  • Reinforced seat
  • Mounting pad for easy actuator mounting
  • Blow-out proof stem design
  • Stainless steel lever and nut
  • 304 stainless steel lever with vinyl grip
