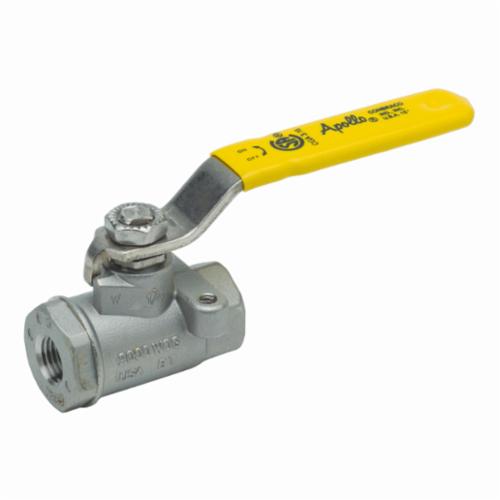

Apollo™ 76-105-01A, 76-100 Series 2-Piece Standard Configuration Ball Valve, 1 in Nominal, FNPT End Style, 150 lb, Stainless Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic
CBPN:1499
UPC:670750113840
MPN:76-105-01-A
Apollo™ 76-105-01-A has been discontinued by the manufacturer.
Prop 65:
DESCRIPTION
Apollo 76-105-01-A Standard Configuration Ball Valve, 2-Piece, Series: 76-100, 1 in Nominal, FNPT End Style, 2000 CWP (psig) / 150 psig Saturated Steam Pressure, Media: Gas/Water, 0.87 in Orifice, Lever Handle Actuator, 316 Stainless Steel Ball, 3.34 in Inlet to Outlet Length, 1.67 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/PTFE Trim, Domestic
Apollo™ 76-105-01A, 76-100 Series 2-Piece Standard Configuration Ball Valve, 1 in Nominal, FNPT End Style, 150 lb, Stainless Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic
CBPN:1499
MPN:76-105-01-A
UPC:670750113840
Apollo™ 76-105-01-A has been discontinued by the manufacturer.
Prop 65:
DESCRIPTION
Apollo 76-105-01-A Standard Configuration Ball Valve, 2-Piece, Series: 76-100, 1 in Nominal, FNPT End Style, 2000 CWP (psig) / 150 psig Saturated Steam Pressure, Media: Gas/Water, 0.87 in Orifice, Lever Handle Actuator, 316 Stainless Steel Ball, 3.34 in Inlet to Outlet Length, 1.67 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/PTFE Trim, Domestic
Specifications
Brand: Apollo™
Weight: 1.63 lbs
Nominal Size: 1 in
End Style: FNPT
Pressure Class: 250 lb
Pressure Rating: 2000 psi CWP
Body Material: Stainless Steel
Port Type: Standard
Softgoods Material: MPTFE/PTFE
Actuator Type: Lever Handle
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 3.34 in
Manufacturer Name: Apollo Conbraco
Media: Gas/Water
Orifice Size: 0.87 in
Series: 76-100
Top to Inlet Center: 1.67 in
Trim Material: 316 Stainless Steel/PTFE
Type: 2-Piece
Includes: Adjustable Packing Gland
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A351 CF8M Valve Body | MSS SP-110 | NACE MR0175 (2000)/MR0103 (2012) | NSF/ANSI 61-8 | Annex G | NSF 372 | Drinking Water System Components Lead Content | PROP65: Cancer and Reproductive Harm
Item Features
- Investment cast components
- Mounting pad for easy actuator mounting
- Blow-out proof stem design
- Stainless steel lever and nut
- Vacuum service to 29 in Hg
- 304 stainless steel with vinyl lever and grip
- 18-8 stainless steel lever nut
- PTFE body seal
- 150 psig saturated steam and PTFE body seal
