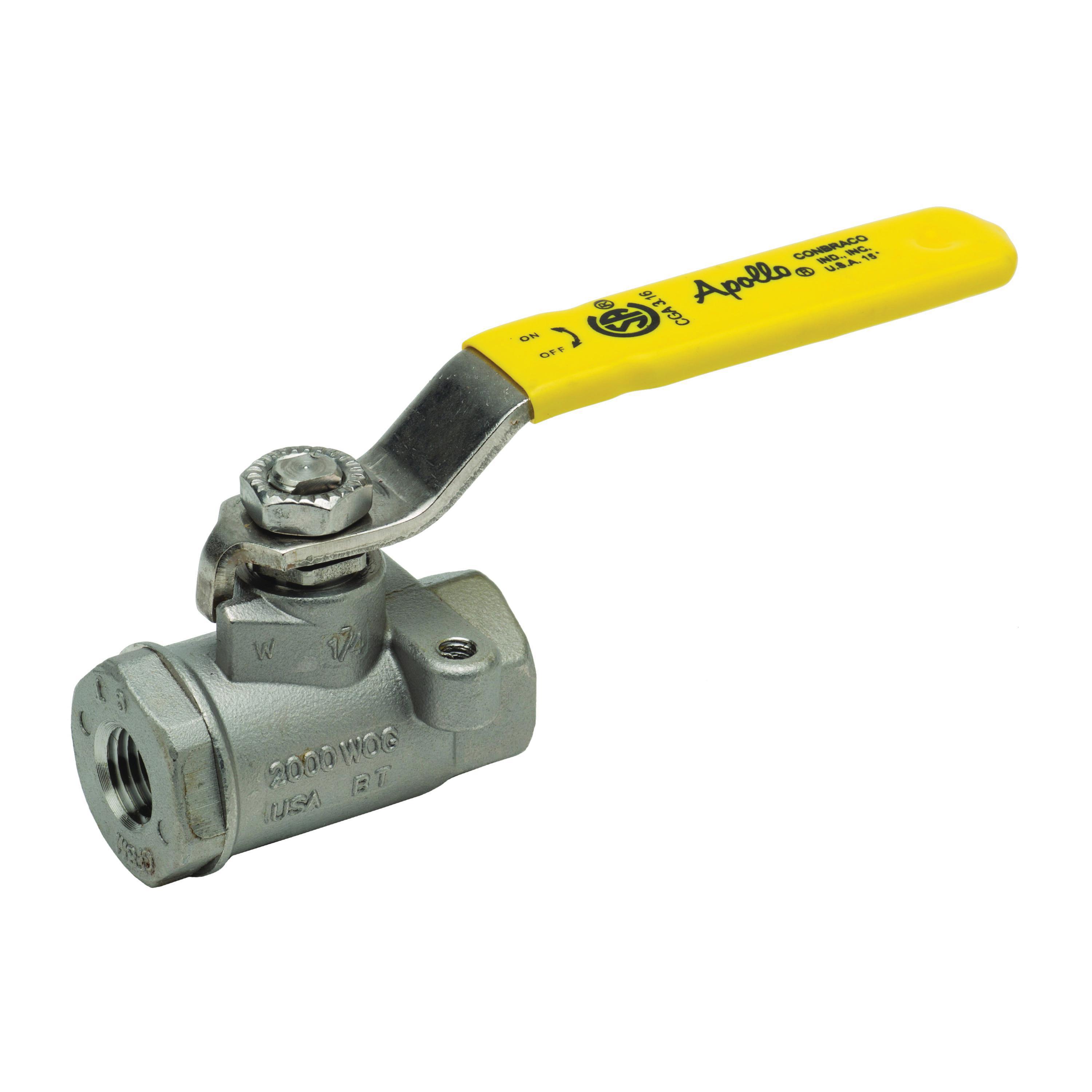

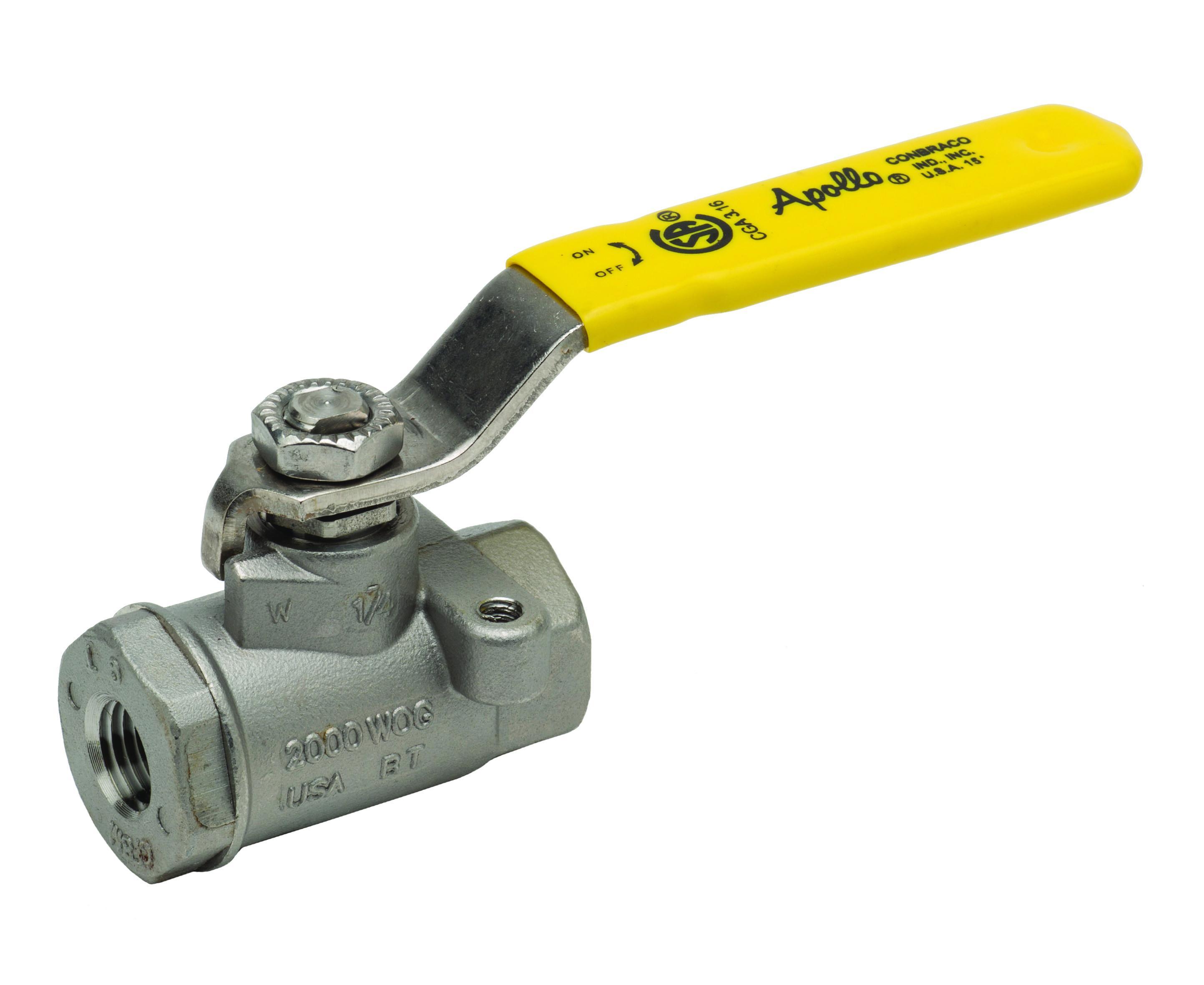

Apollo 76-100 Series Ball Valve

Apollo™ 76-104-27A, 76-100 Series 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, 150 lb, Stainless Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic

CBPN:186705

UPC:670750243813

MPN:76-104-27-A

Price:
$164.27 / EA
Prop 65:

DESCRIPTION

Apollo 76-104-27A Ball Valve, 2-Piece, Series: 76-100, 3/4 in Nominal, FNPT End Style, 2000 CWP (psig) / 150 psig Saturated Steam Pressure, Lever-Lock Handle Actuator, 316 Stainless Steel Ball, 2.96 in Inlet to Outlet Length, 2.03 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/RPTFE Trim, Domestic

Apollo™ 76-104-27A, 76-100 Series 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, 150 lb, Stainless Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic

CBPN:186705

MPN:76-104-27-A

UPC:670750243813

Price:
$164.27 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo 76-104-27A Ball Valve, 2-Piece, Series: 76-100, 3/4 in Nominal, FNPT End Style, 2000 CWP (psig) / 150 psig Saturated Steam Pressure, Lever-Lock Handle Actuator, 316 Stainless Steel Ball, 2.96 in Inlet to Outlet Length, 2.03 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/RPTFE Trim, Domestic

Specifications

BrandApollo™
Weight1.27 lbs
Nominal Size3/4 in
End StyleFNPT
Pressure Class250 lb
Pressure Rating150 psi
Body MaterialStainless Steel
Port TypeStandard
Softgoods MaterialMPTFE/PTFE
Actuator TypeLever-Lock Handle
Ball Material316 Stainless Steel
Inlet to Outlet Length2.96 in
Manufacturer NameApollo Conbraco
Series76-100
Top to Inlet Center2.03 in
Trim Material316 Stainless Steel/RPTFE
Type2-Piece
IncludesAdjustable Packing Gland, Mounting Pad, Stainless Steel Latch-Lock Lever, Nut
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM A351 CF8M Body | ASTM A276 316 Ball/Stem | MSS SP-110 | MR0103 (2012) | NSF/ANSI 61-8 | Annex G | NACE MR0175 (2000) and NSF 372 | PROP65: Cancer and Reproductive Harm

Item Features

  • Investment cast components
  • Reinforced seat
  • Mounting pad for easy actuator mounting
  • Blow-out proof stem design
  • Vacuum service to 29 in Hg
  • 2000 psig CWP
  • 304 stainless steel with vinyl grip handle
  • A276-316 stainless steel gland nut/stem
  • 18-8 stainless steel lever nut
