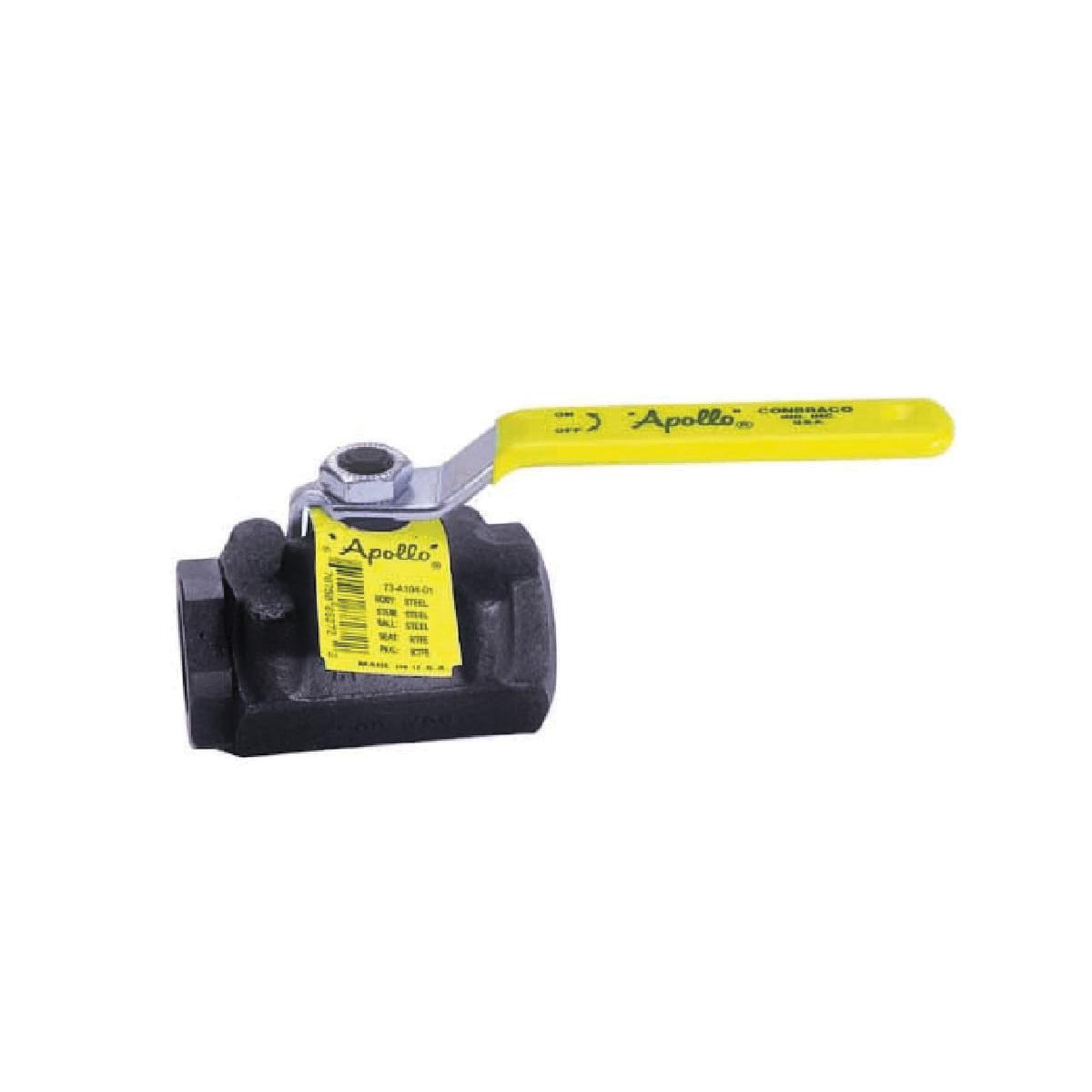

Apollo™ 73A-106-24 73A-100 2-Piece Ball Valve, 1-1/4 in Nominal, FNPT End Style, Carbon Steel Body, Standard Port
CBPN: 232148
UPC:670750332142
MPN:73A10624
Apollo™ 73A10624 has been discontinued by the manufacturer.
Prop 65:
DESCRIPTION
Apollo™ 73A10624, Ball Valve, 2-Piece, Series: 73A-100, 1-1/4 in Nominal, FNPT End Style, 1500 psi CWP Pressure, Standard Port, Lever Handle Actuator, Chrome Plated Carbon Steel Ball, 3.97 in Inlet to Outlet Length, 2.72 in Top to Inlet Center, Graphite/PTFE Softgoods, Domestic
Apollo™ 73A-106-24 73A-100 2-Piece Ball Valve, 1-1/4 in Nominal, FNPT End Style, Carbon Steel Body, Standard Port
CBPN: 232148
MPN:73A10624
UPC:670750332142
Apollo™ 73A10624 has been discontinued by the manufacturer.
Prop 65:
DESCRIPTION
Apollo™ 73A10624, Ball Valve, 2-Piece, Series: 73A-100, 1-1/4 in Nominal, FNPT End Style, 1500 psi CWP Pressure, Standard Port, Lever Handle Actuator, Chrome Plated Carbon Steel Ball, 3.97 in Inlet to Outlet Length, 2.72 in Top to Inlet Center, Graphite/PTFE Softgoods, Domestic
Specifications
Brand: Apollo™
Weight: 3.74 lbs
Nominal Size: 1-1/4 in
End Style: FNPT
Pressure Rating: 1500 psi CWP
Body Material: Carbon Steel
Port Type: Standard
Softgoods Material: Graphite/PTFE
Actuator Type: Lever Handle
Ball Material: Chrome Plated Carbon Steel
Inlet to Outlet Length: 3.97 in
Manufacturer Name: Apollo Conbraco
Series: 73A-100
Top to Inlet Center: 2.72 in
Trim Material: Carbon Steel/RPTFE
Type: 2-Piece
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: API 607 6th Edition | AAR Approved | ASTM A105 Body | ASTM A276 | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- Forged construction
- Raised handle stops
- Blow-out proof stem design
- Adjustable packing gland
- Zinc phosphate corrosion protection
- Cold non-shock body rating
- 150 psig saturated steam
- Vacuum service to 29 in Hg
- RPTFE bearing (fire safe)
- Not always fire safe
