Apollo 73A-140 Series Ball Valve

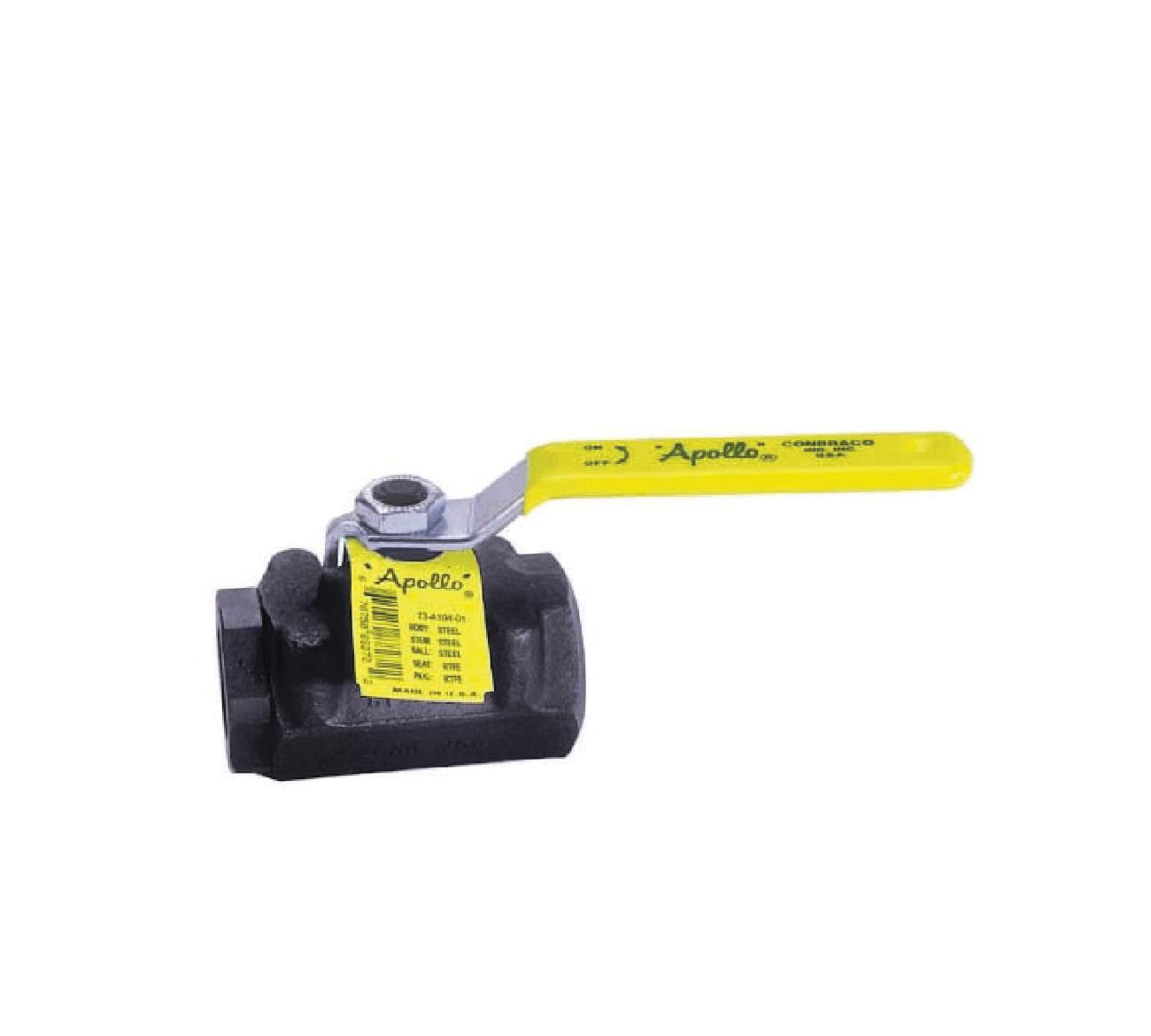

Apollo™ 73A14324A 73A-140 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Forged Carbon Steel Body, Standard Port, Graphite/MPTFE/PTFE Softgoods, Domestic

CBPN:175559

UPC:670750160264

MPN:73A-143-24-A

Price:
$69.56 / EA
Prop 65:

DESCRIPTION

Apollo™, 73A14324A, Ball Valve, 2-Piece, Series: 73A-140, 1/2 in Nominal, FNPT End Style, 2000 psi CWP Pressure, Standard Port, Lever Operated Actuator, 316 Stainless Steel Ball, 2.31 in Inlet to Outlet Length, 1.78 in Top to Inlet Center, Forged Carbon Steel Body, 316 Stainless Steel/RPTFE Trim, Graphite/MPTFE/PTFE Softgoods, Domestic

Apollo™ 73A14324A 73A-140 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Forged Carbon Steel Body, Standard Port, Graphite/MPTFE/PTFE Softgoods, Domestic

CBPN:175559

MPN:73A-143-24-A

UPC:670750160264

Price:
$69.56 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™, 73A14324A, Ball Valve, 2-Piece, Series: 73A-140, 1/2 in Nominal, FNPT End Style, 2000 psi CWP Pressure, Standard Port, Lever Operated Actuator, 316 Stainless Steel Ball, 2.31 in Inlet to Outlet Length, 1.78 in Top to Inlet Center, Forged Carbon Steel Body, 316 Stainless Steel/RPTFE Trim, Graphite/MPTFE/PTFE Softgoods, Domestic

Specifications

BrandApollo™
Weight0.75lbs
Nominal Size1/2 in
End StyleFNPT
Pressure Rating2000 psi CWP
Body MaterialCarbon Steel
Port TypeStandard
Softgoods MaterialGraphite/MPTFE/PTFE
Actuator TypeLever Operated
Ball Material316 Stainless Steel
Inlet to Outlet Length2.31 in
Manufacturer NameApollo Conbraco
Series73A-140
Top to Inlet Center1.78 in
Trim Material316 Stainless Steel/RPTFE
Type2-Piece
IncludesAdjustable Packing Gland
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsAAR File No. E999032 | API 607 | ASTM A105 Body | ASTM A276 Ball/Stem | MSS SP-110 | NACE Listed | PROP65: Cancer and Reproductive Harm

Item Features

  • Blow-out proof stem design
  • Zinc phosphate corrosion protection
  • Vacuum service to 29 in Hg
  • 150 psig saturated steam
  • PTFE seal, graphite packing and MPTFE stem packing
  • Not always fire safe
