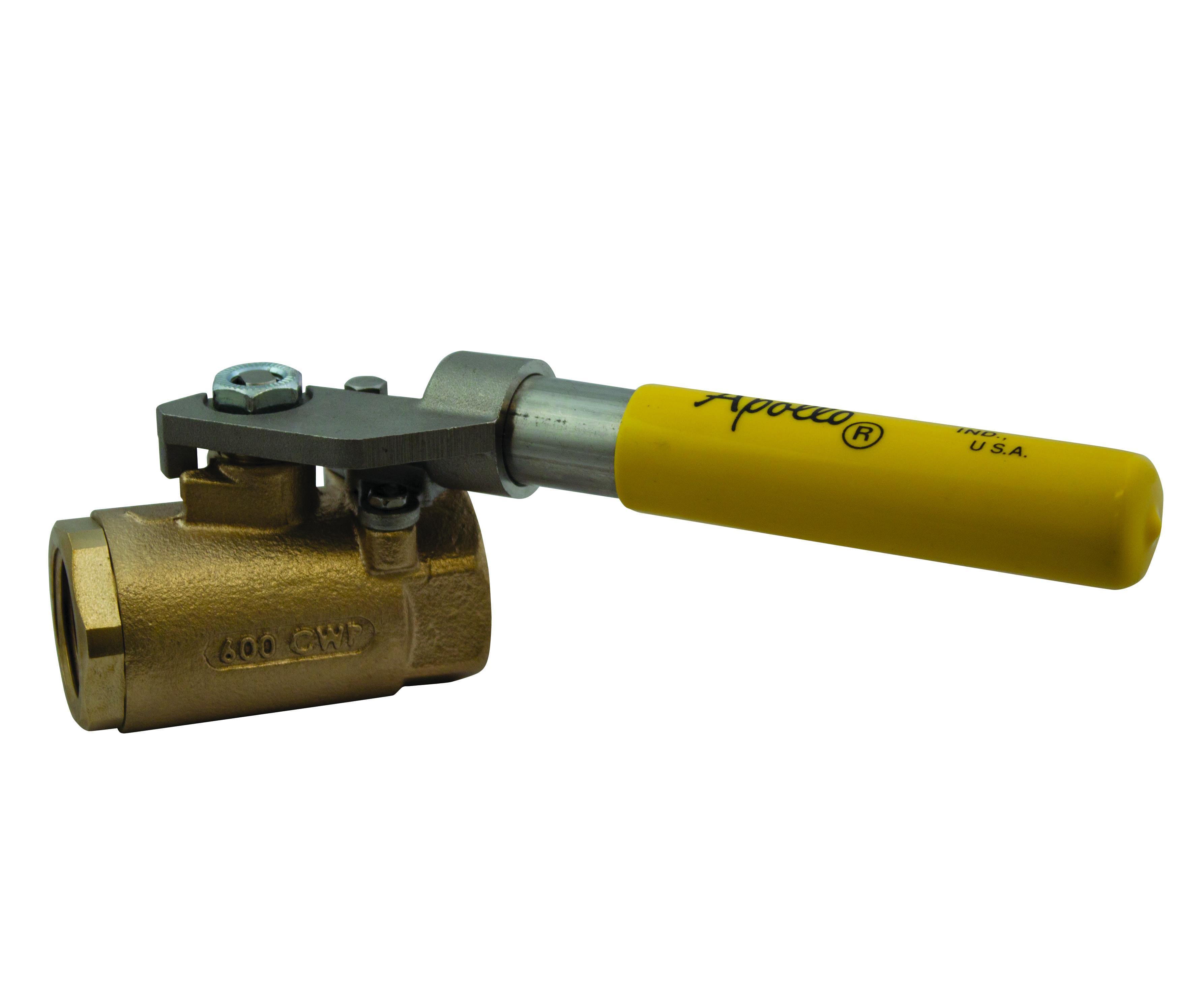

Apollo™ 7150801 71-500 2-Piece Ball Valve, 2 in Nominal, FNPT End Style, Bronze Body, Standard Port, PTFE Softgoods, Domestic
CBPN: 57214
UPC:670750680120
MPN:71-508-01
Price:
$559.24 / EA
Prop 65:
DESCRIPTION
Apollo™ 7150801, Ball Valve, 2-Piece, Series: 71-500, 2 in Nominal, FNPT End Style, 600 psi CWP Pressure, Standard Port, Spring Return Handle Actuator, Chrome Plated Brass Ball, 4.68 in Inlet to Outlet Length, 9 in Top to Inlet Center, Bronze Body, 316 Stainless Steel/PTFE Trim, PTFE Softgoods, Domestic, Also Known As Dead Man Valve
Apollo™ 7150801 71-500 2-Piece Ball Valve, 2 in Nominal, FNPT End Style, Bronze Body, Standard Port, PTFE Softgoods, Domestic
CBPN: 57214
MPN:71-508-01
UPC:670750680120
Price:
$559.24 / EA
Prop 65:
DESCRIPTION
Apollo™ 7150801, Ball Valve, 2-Piece, Series: 71-500, 2 in Nominal, FNPT End Style, 600 psi CWP Pressure, Standard Port, Spring Return Handle Actuator, Chrome Plated Brass Ball, 4.68 in Inlet to Outlet Length, 9 in Top to Inlet Center, Bronze Body, 316 Stainless Steel/PTFE Trim, PTFE Softgoods, Domestic, Also Known As Dead Man Valve
Specifications
Brand: Apollo™
Weight: 6.41 lbs
Nominal Size: 2 in
End Style: FNPT
Pressure Rating: 600 psi CWP
Body Material: Bronze
Port Type: Standard
Softgoods Material: PTFE
Actuator Type: Spring Return Handle
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 4.68 in
Manufacturer Name: Apollo Conbraco
Series: 71-500
Top to Inlet Center: 9 in
Trim Material: 316 Stainless Steel/PTFE
Type: 2-Piece
Includes: Adjustable Packing Gland
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B584-C84400 Body | ASTM A276 316 Stem | ASTM B16 Ball/Retainer | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- All components of lever are stainless steel
- Operating torque is approximately three times standard valve torque
- Reinforced seat
- Blow-out proof stem design
- 150 psig saturated steam
- Vacuum service to 29 in Hg
- Cold non-shock body rating
- Spring return to close
