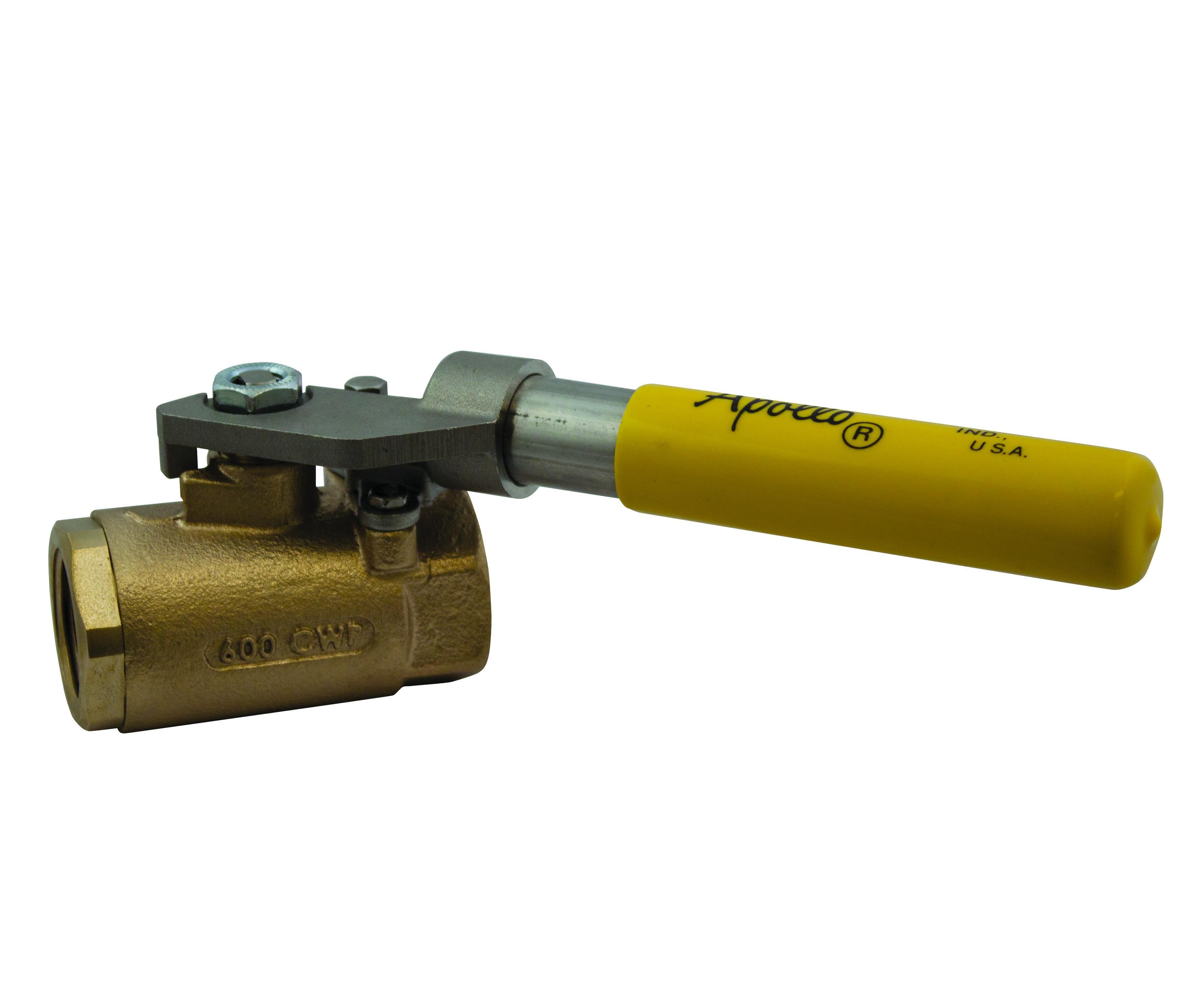

Apollo™ 7150201 71-500 2-Piece Ball Valve, 3/8 in Nominal, FNPT End Style, Bronze Body, Standard Port, PTFE Softgoods, Domestic
CBPN: 128072
UPC:670750679698
MPN:71-502-01
Price:
$258.40 / EA
Prop 65:
DESCRIPTION
Apollo™ 7150201, Ball Valve, 2-Piece, Series: 71-500, 3/8 in Nominal, FNPT End Style, 600 psi CWP Pressure, Standard Port, Media: Gas/Water, 1/2 in Orifice, Spring Return Handle Actuator, Chrome Plated Brass Ball, 2-1/4 in Inlet to Outlet Length, 7 in Top to Inlet Center, Bronze Body, PTFE Softgoods, Domestic, Also Known As Dead Man Valve
Apollo™ 7150201 71-500 2-Piece Ball Valve, 3/8 in Nominal, FNPT End Style, Bronze Body, Standard Port, PTFE Softgoods, Domestic
CBPN: 128072
MPN:71-502-01
UPC:670750679698
Price:
$258.40 / EA
Prop 65:
DESCRIPTION
Apollo™ 7150201, Ball Valve, 2-Piece, Series: 71-500, 3/8 in Nominal, FNPT End Style, 600 psi CWP Pressure, Standard Port, Media: Gas/Water, 1/2 in Orifice, Spring Return Handle Actuator, Chrome Plated Brass Ball, 2-1/4 in Inlet to Outlet Length, 7 in Top to Inlet Center, Bronze Body, PTFE Softgoods, Domestic, Also Known As Dead Man Valve
Specifications
Brand: Apollo™
Weight: 1.45 lbs
Nominal Size: 3/8 in
End Style: FNPT
Pressure Rating: 600 psi CWP
Body Material: Bronze
Port Type: Standard
Softgoods Material: PTFE
Actuator Type: Spring Return Handle
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 2-1/4 in
Manufacturer Name: Apollo Conbraco
Media: Gas/Water
Orifice Size: 1/2 in
Series: 71-500
Top to Inlet Center: 7 in
Trim Material: Brass
Type: 2-Piece
Includes: Adjustable Packing Gland
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B584-C84400 Valve Body | ASTM B16 Ball | ASTM A276 Stem | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- All components of lever are stainless steel
- Operating torque is approximately three times standard valve torque
- Reinforced seat
- Blow-out proof stem design
- Vacuum service to 29 in Hg
- Stainless steel with vinyl handle
- Steel, zinc plated lever nut
- 150 psig saturated steam
