Apollo 70LF-100 Series Ball Valve

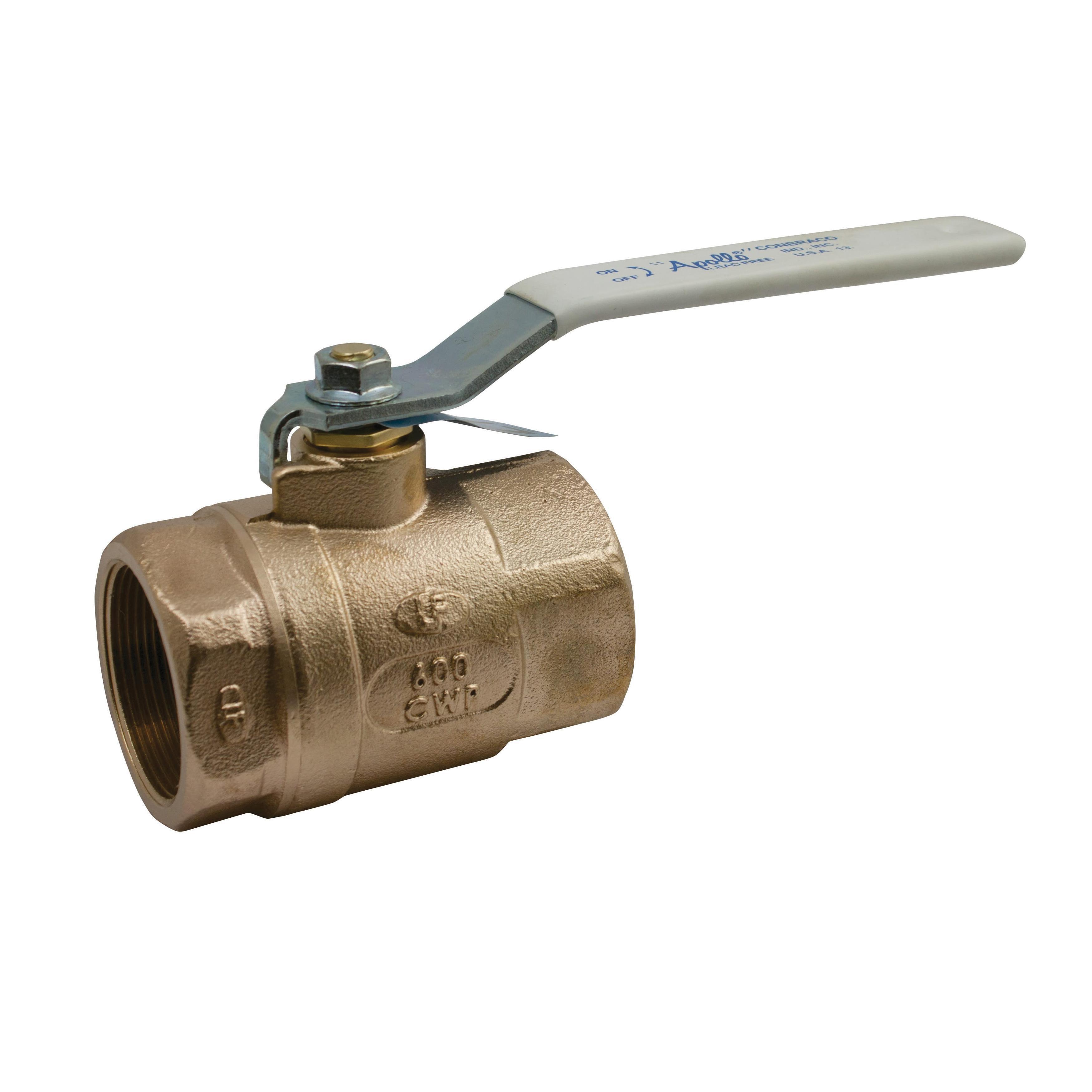

Apollo™ 70LF10401 70LF-100 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Lead Free Bronze Body, Standard Port, RPTFE Softgoods, Domestic

CBPN:170742

UPC:670750508899

MPN:70LF-104-01

Price:
$61.11 / EA
Prop 65:

DESCRIPTION

Apollo™ Ball Valve, 2-Piece, Series: 70LF-100, 3/4 in Nominal, FNPT, 600 psig CWP, 450 deg F, Standard Port, Media: Water, Lever Operated Actuator, Chrome Plated Brass Ball, 3 in Inlet to Outlet Length, 2.12 in Top to Inlet Center, Lead Free Bronze Body, Brass Stem and RPTFE Seat Trim, RPTFE, Domestic

The Apollo™ 70LF Series has the same rugged features as the industry standard 70 Series valves with the added advantage of Lead Free materials. The 70LF is ideal for plumbing and heating systems, including potable water. Trusted Apollo™ performance with a wide range of popular options.

Apollo™ 70LF10401 70LF-100 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Lead Free Bronze Body, Standard Port, RPTFE Softgoods, Domestic

CBPN:170742

MPN:70LF-104-01

UPC:670750508899

Price:
$61.11 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ Ball Valve, 2-Piece, Series: 70LF-100, 3/4 in Nominal, FNPT, 600 psig CWP, 450 deg F, Standard Port, Media: Water, Lever Operated Actuator, Chrome Plated Brass Ball, 3 in Inlet to Outlet Length, 2.12 in Top to Inlet Center, Lead Free Bronze Body, Brass Stem and RPTFE Seat Trim, RPTFE, Domestic

The Apollo™ 70LF Series has the same rugged features as the industry standard 70 Series valves with the added advantage of Lead Free materials. The 70LF is ideal for plumbing and heating systems, including potable water. Trusted Apollo™ performance with a wide range of popular options.

Specifications

BrandApollo™
Series70LF-100
Type2-Piece
Body MaterialLead Free Bronze
Domestic/ImportDomestic
End StyleFNPT
Nominal Size3/4 in
Pressure Rating600 psig CWP
Temperature Rating450 deg F
Actuator TypeLever Operated
MediaWater
Port TypeStandard
Softgoods MaterialRPTFE
Trim MaterialBrass Stem and RPTFE Seat
Ball MaterialChrome Plated Brass
Inlet to Outlet Length3 in
Top to Inlet Center2.12 in
Weight1.3 lbs
Standards ApprovalsMSS SP-110,NSF/ANSI 61-8,Annex G,NSF/ANSI 372,ANSI 3RD Party Certified,CRN OC10908.5C,NSF 372,Drinking Water System Components Lead Content,UNS C27451 Ball,UNS C89836 Retainer

Item Features

  • Easily identifiable blue Lead free hang tag
  • RPTFE seats and stuffing box ring
  • 100% factory tested
  • Vacuum service to 29 in Hg
  • Steel, zinc plated with vinyl lever and grip
  • UNS C27451 Lead free brass retainer
  • ASTM B16 brass gland nut
  • Steel, zinc plated lever nut
  • Complies with Federal Public law 111-380, ANSI 3Rd Party approved and listed
  • 150 psig steam working pressure
  • RPTFE stem packing
