Apollo 70LF-100 Series Ball Valve

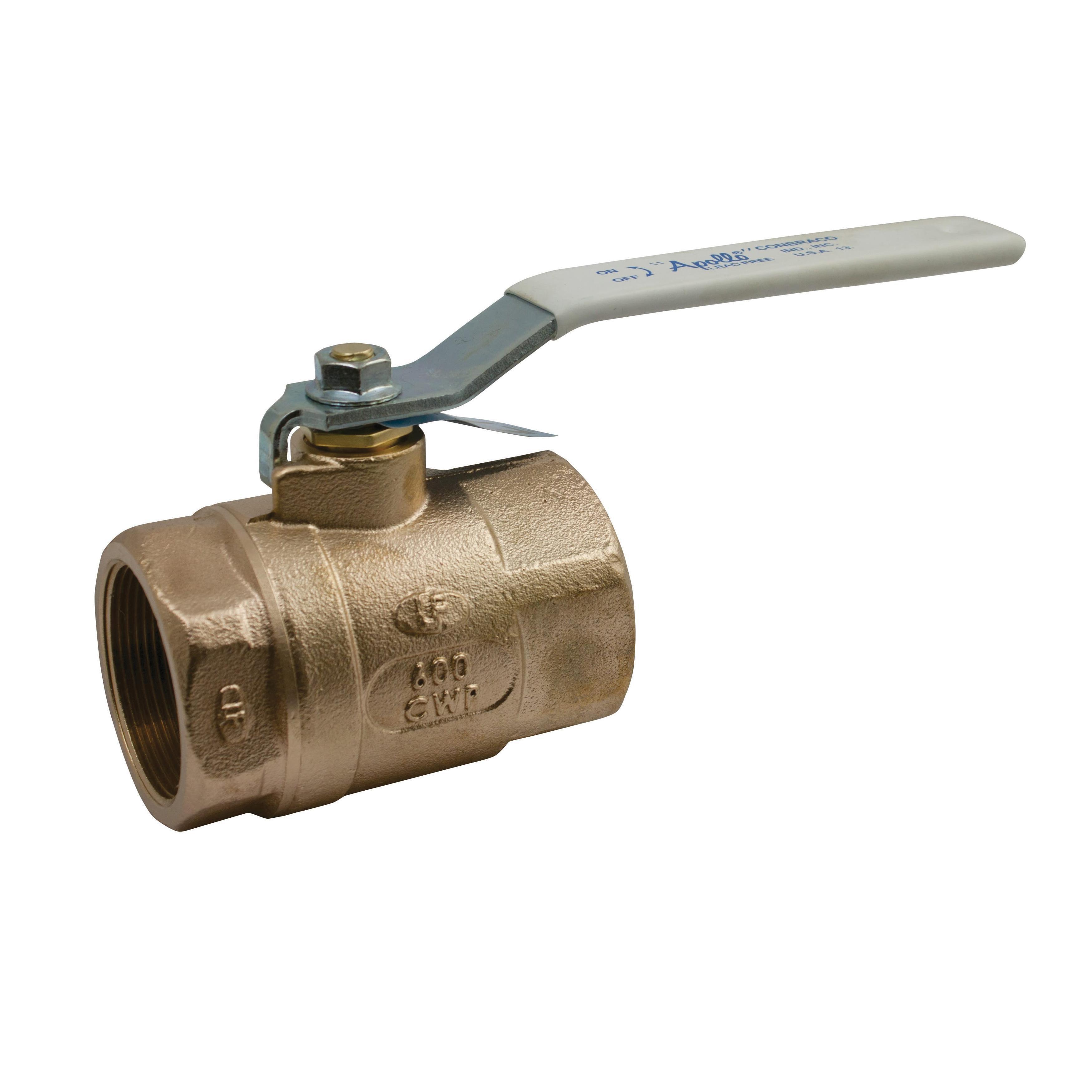

Apollo™ 70LF10301 70LF-100 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Lead Free Bronze Body, Regular Port, Domestic

CBPN:170469

UPC:670750509452

MPN:70LF-103-01

Price:
$38.55 / EA
Prop 65:

DESCRIPTION

Apollo™, 70LF10301, Ball Valve, 2-Piece, Series: 70LF-100, 1/2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 350 deg F, Regular Port, Media: Water, Lever Operated Actuator, 2-1/4 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Lead Free Bronze Body, Brass Stem and RPTFE Seat Trim, Domestic

The Apollo™ 70LF Series has the same rugged features as the industry standard 70 Series valves with the added advantage of Lead Free materials. The 70LF is ideal for plumbing and heating systems, including potable water. Trusted Apollo™ performance with a wide range of popular options.

Apollo™ 70LF10301 70LF-100 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Lead Free Bronze Body, Regular Port, Domestic

CBPN:170469

MPN:70LF-103-01

UPC:670750509452

Price:
$38.55 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™, 70LF10301, Ball Valve, 2-Piece, Series: 70LF-100, 1/2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 350 deg F, Regular Port, Media: Water, Lever Operated Actuator, 2-1/4 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Lead Free Bronze Body, Brass Stem and RPTFE Seat Trim, Domestic

The Apollo™ 70LF Series has the same rugged features as the industry standard 70 Series valves with the added advantage of Lead Free materials. The 70LF is ideal for plumbing and heating systems, including potable water. Trusted Apollo™ performance with a wide range of popular options.

Specifications

BrandApollo™
Weight0.63lbs
Nominal Size1/2 in
End StyleFNPT
Pressure Rating600 psi CWP
Body MaterialLead Free Bronze
Port TypeRegular
Softgoods MaterialRPTFE
Actuator TypeLever Operated
Ball MaterialChrome Plated Brass
Inlet to Outlet Length2-1/4 in
Manufacturer NameApollo Conbraco
MediaWater
Series70LF-100
Temperature Rating350 deg F
Top to Inlet Center1-3/4 in
Trim MaterialBrass Stem and RPTFE Seat
Type2-Piece
ApplicationPlumbing and heating systems, including potable water
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsMSS SP-110 | NSF/ANSI 61-8 | Annex G | NSF/ANSI 372 | ANSI 3RD Party Certified | CRN OC10908.5C | NSF 372 | Drinking Water System Components Lead Content | UNS C27451 Ball | UNS C89836 Retainer | PROP65: Cancer and Reproductive Harm

Item Features

  • Easily identifiable blue Lead free hang tag
  • RPTFE seats and stuffing box ring
  • 100% factory tested
  • Vacuum service to 29 in Hg
  • Steel, zinc plated with vinyl lever and grip
  • UNS C27451 Lead free brass retainer
  • ASTM B16 brass gland nut
  • Steel, zinc plated lever nut
  • 150 psig steam working pressure
