Apollo 70LF-100 Series Ball Valve

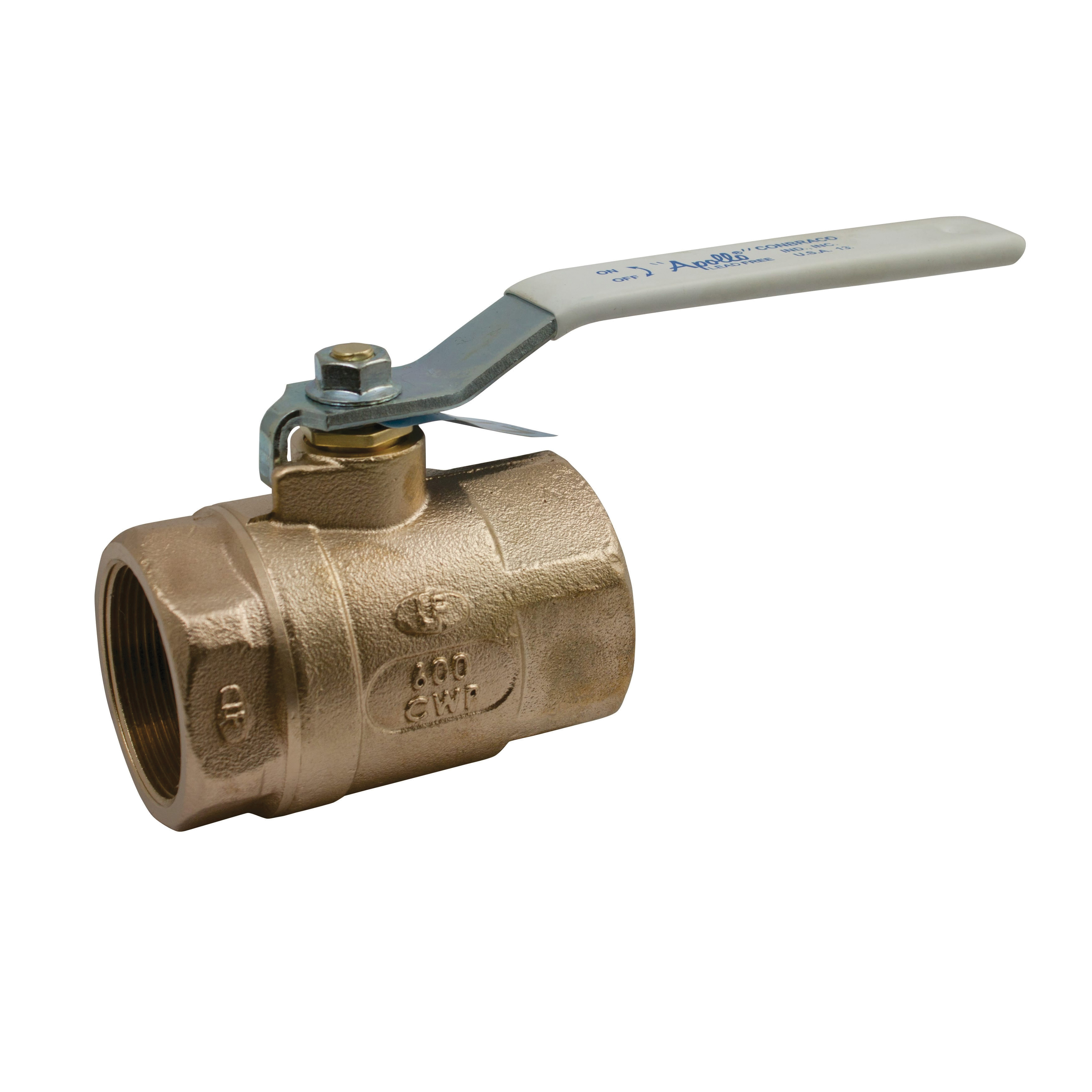

Apollo™ 70LF10201 70LF-100 2-Piece Ball Valve, 3/8 in Nominal, FNPT End Style, Lead Free Bronze Body, Standard Port, RRPTFE Softgoods, Domestic

CBPN:172669

UPC:670750427121

MPN:70LF-102-01

Price:
$37.06 / EA
Prop 65:

DESCRIPTION

Apollo™ Ball Valve, 2-Piece, Series: 70LF-100, 3/8 in Nominal, FNPT, 600 psig CWP, 450 deg F, Standard Port, Lever Operated Actuator, Chrome Plated Brass Ball, 2.06 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Lead Free Bronze Body, Brass Stem and RPTFE Seat Trim, RRPTFE, Domestic

The Apollo™ 70LF series has the same rugged features as the industry standard 70 Series valves with the added advantage of lead free materials. The 70LF is ideal for plumbing and heating systems, including potable water. Trusted Apollo™ performance with a wide range of popular options.

Apollo™ 70LF10201 70LF-100 2-Piece Ball Valve, 3/8 in Nominal, FNPT End Style, Lead Free Bronze Body, Standard Port, RRPTFE Softgoods, Domestic

CBPN:172669

MPN:70LF-102-01

UPC:670750427121

Price:
$37.06 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ Ball Valve, 2-Piece, Series: 70LF-100, 3/8 in Nominal, FNPT, 600 psig CWP, 450 deg F, Standard Port, Lever Operated Actuator, Chrome Plated Brass Ball, 2.06 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Lead Free Bronze Body, Brass Stem and RPTFE Seat Trim, RRPTFE, Domestic

The Apollo™ 70LF series has the same rugged features as the industry standard 70 Series valves with the added advantage of lead free materials. The 70LF is ideal for plumbing and heating systems, including potable water. Trusted Apollo™ performance with a wide range of popular options.

Specifications

BrandApollo™
Actuator TypeLever Operated
Body MaterialLead Free Bronze
End StyleFNPT
Nominal Size3/8 in
Series70LF-100
Temperature Rating450 deg F
Type2-Piece
Domestic/ImportDomestic
Pressure Rating600 psig CWP
Port TypeStandard
Softgoods MaterialRRPTFE
Trim MaterialBrass Stem and RPTFE Seat
Ball MaterialChrome Plated Brass
Inlet to Outlet Length2.06 in
Top to Inlet Center1-3/4 in
Weight0.56 lbs
Standards ApprovalsANSI 3rd Party Certified,CRN OC10908.5C,Lead-Free Compliant,MSS SP-110,NSF/ANSI 61-8 Annex G,NSF/ANSI 372,UNS C89836 Body,UNS C27451 Ball/Stem

Item Features

  • 01 - Standard Configuration
  • Lead free brass and bronze materials
  • ANSI/NSF 61 section 8 2008, 180 deg F
  • Easily identifiable blue Lead free hang tag
  • Chromium plated ball
  • Designed, manufactured and 100% factory tested in the USA
  • 150 psig saturated steam
  • Vacuum service to 29 in Hg
  • Lead free - the wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
  • Complies with CA AB1953, VT Act 193, MD HB372, LA HB471 and Federal Public Law 111-380, ANSI 3rd party approved and listed
  • RRPTFE stem packing
