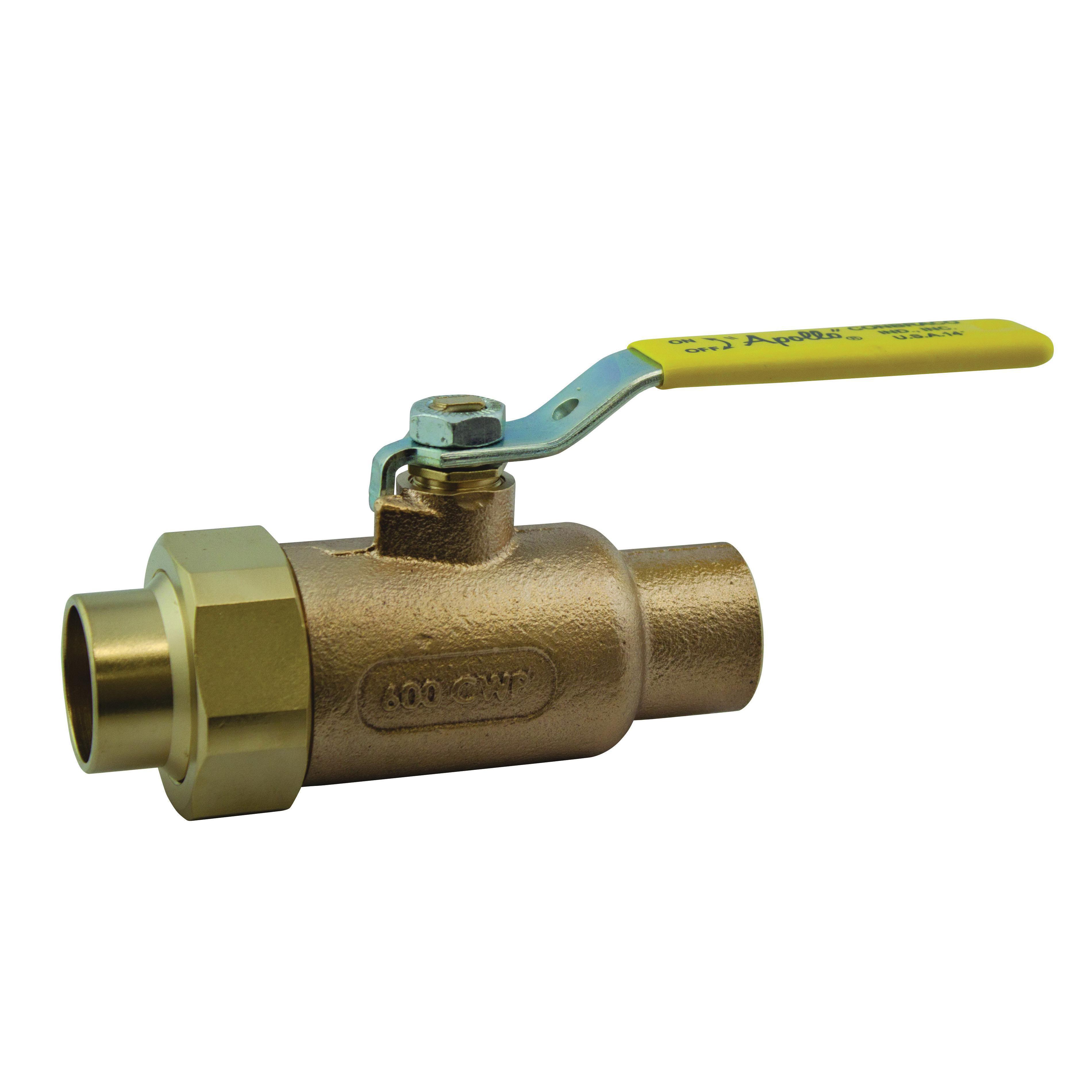

Apollo™ 7040701 70-400 Single Union Ball Valve, 1-1/2 in Nominal, Solder End Style, Bronze Body, Standard Port, Domestic
CBPN: 96130
UPC:670750672408
MPN:70-407-01
Price:
$288.19 / EA
Prop 65:
DESCRIPTION
Apollo™ 7040701, Single Union Ball Valve, Series: 70-400, 1-1/2 in Nominal, Solder End Style, 600 psi CWP Pressure, 500 deg F, Standard Port, Lever Operated Actuator, 5.53 in Inlet to Outlet Length, 3.1 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, Domestic
The Apollo™ 70-400 Series is a standard port ball valve that is designed to be soft soldered in to lines without disassembly. Manufactured with proven ASTM Materials in the USA.
Apollo™ 7040701 70-400 Single Union Ball Valve, 1-1/2 in Nominal, Solder End Style, Bronze Body, Standard Port, Domestic
CBPN: 96130
MPN:70-407-01
UPC:670750672408
Price:
$288.19 / EA
Prop 65:
DESCRIPTION
Apollo™ 7040701, Single Union Ball Valve, Series: 70-400, 1-1/2 in Nominal, Solder End Style, 600 psi CWP Pressure, 500 deg F, Standard Port, Lever Operated Actuator, 5.53 in Inlet to Outlet Length, 3.1 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, Domestic
The Apollo™ 70-400 Series is a standard port ball valve that is designed to be soft soldered in to lines without disassembly. Manufactured with proven ASTM Materials in the USA.
Specifications
Brand: Apollo™
Weight: 5.44 lbs
Nominal Size: 1-1/2 in
End Style: Solder
Pressure Rating: 600 psi CWP
Body Material: Bronze
Port Type: Standard
Softgoods Material: RPTFE/MPTFE
Actuator Type: Lever Operated
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 5.53 in
Manufacturer Name: Apollo Conbraco
Series: 70-400
Temperature Rating: 500 deg F
Top to Inlet Center: 3.1 in
Trim Material: Brass Stem and RPTFE Seat
Type: Union End
Includes: Adjustable Packing Gland
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM B584-C84400 Body | ASTM B16 Stem | ASTM B283-C37700 Ball | Federal Specifications WW-V-35C Type 2 | CRN OC10908.5C | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- Blow-out proof stem
- Fluorocarbon O-Ring sealed single union requires only light torque to seal
- Cold non-shock
- 150 psig saturated steam
- Vacuum service to 29 in Hg
