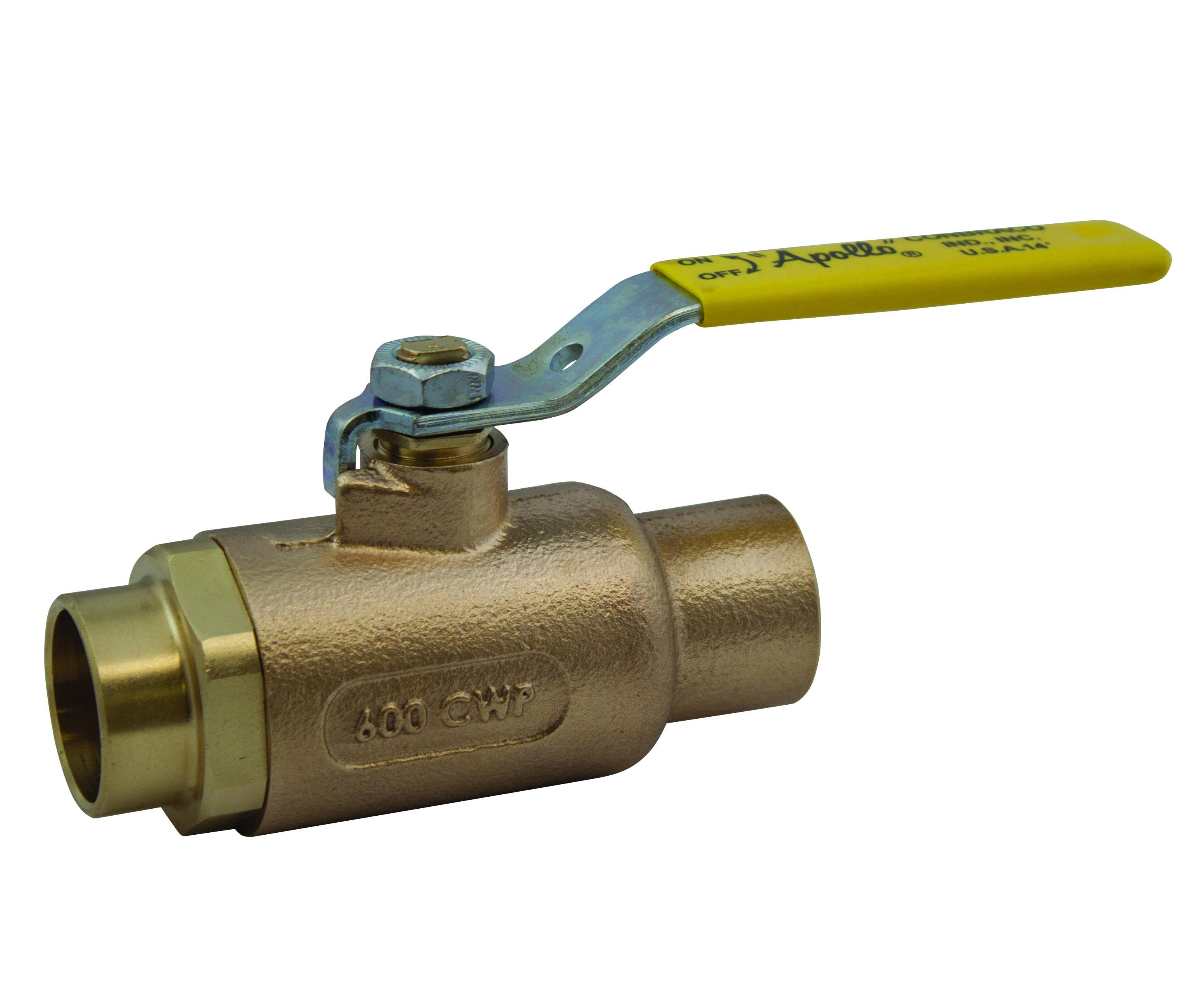

Apollo™ 7020627 70-200 2-Piece Ball Valve, 1-1/4 in Nominal, Solder End Style, Bronze Body, Standard Port, Domestic
CBPN:1474
UPC:670750666049
MPN:70-206-27
Price:
$109.36 / EA
Prop 65:
DESCRIPTION
Apollo™, 7020627, Ball Valve, 2-Piece, Series: 70-200, 1-1/4 in Nominal, Solder End Style, 600 psi CWP Pressure, 350 deg F, Standard Port, Latch-Lock Lever Actuator, 4.62 in Inlet to Outlet Length, 2.62 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, Domestic
The Apollo™ 70 series is the most widely used general purpose bronze ball valve on the market today. The 70-200 model is a 2-piece standard port ball valve designed to be soft soldered into lines without disassembly. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
Apollo™ 7020627 70-200 2-Piece Ball Valve, 1-1/4 in Nominal, Solder End Style, Bronze Body, Standard Port, Domestic
CBPN:1474
MPN:70-206-27
UPC:670750666049
Price:
$109.36 / EA
Prop 65:
DESCRIPTION
Apollo™, 7020627, Ball Valve, 2-Piece, Series: 70-200, 1-1/4 in Nominal, Solder End Style, 600 psi CWP Pressure, 350 deg F, Standard Port, Latch-Lock Lever Actuator, 4.62 in Inlet to Outlet Length, 2.62 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, Domestic
The Apollo™ 70 series is the most widely used general purpose bronze ball valve on the market today. The 70-200 model is a 2-piece standard port ball valve designed to be soft soldered into lines without disassembly. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
Specifications
Brand: Apollo™
Weight: 2.95lbs
Actuator Type: Latch-Lock Lever
Body Material: Bronze
End Style: Solder
Nominal Size: 1-1/4 in
Series: 70-200
Temperature Rating: 350 deg F
Type: 2-Piece
Pressure Rating: 600 psi CWP
Port Type: Standard
Softgoods Material: RPTFE/MPTFE
Trim Material: Brass Stem and RPTFE Seat
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 4.62 in
Manufacturer Name: Apollo Conbraco
Top to Inlet Center: 2.62 in
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ARRA Compliant | ASTM B584-C84400 Body | ASTM B16 Stem | ASTM B283-C37700 Ball | CSA B51 | CRN OC10908.5C | MSS SP-110 | PROP65: Cancer and Reproductive Harm
Item Features
- 27 - Stainless steel latch-lock lever and nut
- Premium materials and heavy duty construction
- EZ-Solder bronze
- Adjustable stem packing gland
- Blow-out proof stem
- 100% factory tested
- Wide range of options
- Vacuum service to 29 in Hg
- 150 psig saturated steam
