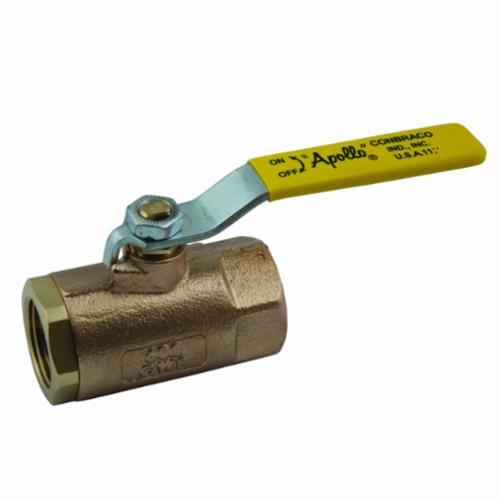

Apollo™ 7010501 70-100 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Bronze Body, Standard Port, MPTFE/RPTFE Softgoods, Domestic
CBPN:1438
UPC:670750653315
MPN:70-105-01
Price:
$57.11 / EA
Prop 65:
DESCRIPTION
Apollo™ Ball Valve, 2-Piece, Series: 70-100, 1 in Nominal, FNPT, 600 psig CWP, 500 deg F, Standard Port, Media: Water, Lever Operated Actuator, Chrome Plated Brass Ball, 3.37 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Bronze Body, Brass Stem and PTFE Seat Trim, MPTFE/RPTFE, Domestic
The Apollo™ 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
Apollo™ 7010501 70-100 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Bronze Body, Standard Port, MPTFE/RPTFE Softgoods, Domestic
CBPN:1438
MPN:70-105-01
UPC:670750653315
Price:
$57.11 / EA
Prop 65:
DESCRIPTION
Apollo™ Ball Valve, 2-Piece, Series: 70-100, 1 in Nominal, FNPT, 600 psig CWP, 500 deg F, Standard Port, Media: Water, Lever Operated Actuator, Chrome Plated Brass Ball, 3.37 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Bronze Body, Brass Stem and PTFE Seat Trim, MPTFE/RPTFE, Domestic
The Apollo™ 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
Specifications
Brand: Apollo™
Actuator Type: Lever Operated
Body Material: Bronze
End Style: FNPT
Nominal Size: 1 in
Series: 70-100
Temperature Rating: 500 deg F
Type: 2-Piece
Domestic/Import: Domestic
Pressure Rating: 600 psig CWP
Media: Water
Port Type: Standard
Softgoods Material: MPTFE/RPTFE
Trim Material: Brass Stem and PTFE Seat
Ball Material: Chrome Plated Brass
Inlet to Outlet Length: 3.37 in
Top to Inlet Center: 2-1/4 in
Weight: 1.72 lbs
Standards Approvals: ARRA Compliant,MSS-SP-110,CSA B51 CRN OC10908.5C
Item Features
- Premium materials and heavy duty construction
- Adjustable stem packing gland
- Blow-out proof stem
- 100% factory tested
- Vacuum service to 29 in Hg
- Zinc plated with vinyl steel lever and grip
- ASTM C37700 chrome plated B16/B283
- ASTM B584-C84400 retainer
- ASTM B16 gland nut/stem
- Zinc plated steel lever nut
- UNS C84400 B584 body
- 150 psi steam working pressure
- MPTFE stem packing and RPTFE body seal
