Apollo 70-HC Series Ball Valve

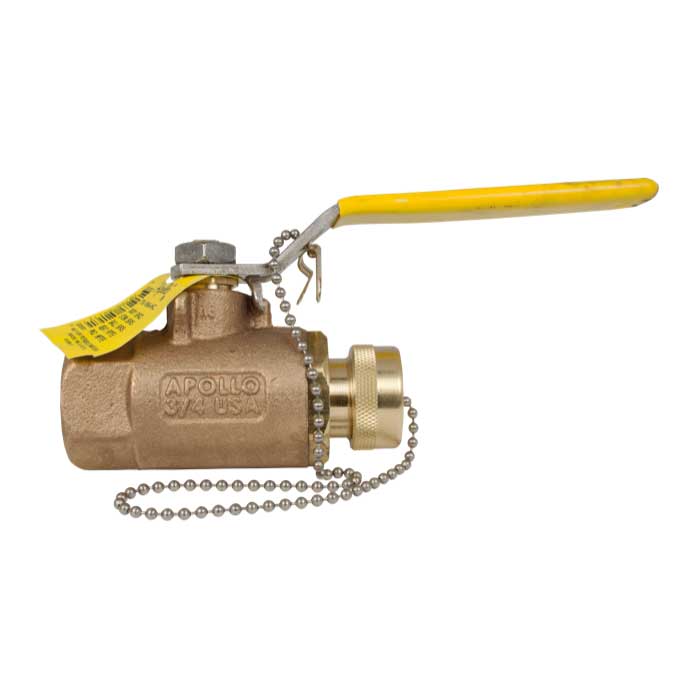

Apollo™ 70104HC 70-100-HC 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Bronze Body, Standard Port, MPTFE Softgoods, Domestic

CBPN:15646

UPC:670750521713

MPN:70-104-HC

Price:
$62.10 / EA
Prop 65:

DESCRIPTION

Apollo™ Ball Valve, 2-Piece, Series: 70-100-HC, 3/4 in Nominal, FNPT, 600 psig CWP, 500 deg F, Standard Port, Media: Water, Lever Operated Actuator, Chrome Plated Brass Ball, 3 in Inlet to Outlet Length, 2.12 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, MPTFE, Domestic

The Apollo™ 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.

Apollo™ 70104HC 70-100-HC 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Bronze Body, Standard Port, MPTFE Softgoods, Domestic

CBPN:15646

MPN:70-104-HC

UPC:670750521713

Price:
$62.10 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ Ball Valve, 2-Piece, Series: 70-100-HC, 3/4 in Nominal, FNPT, 600 psig CWP, 500 deg F, Standard Port, Media: Water, Lever Operated Actuator, Chrome Plated Brass Ball, 3 in Inlet to Outlet Length, 2.12 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, MPTFE, Domestic

The Apollo™ 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.

Specifications

BrandApollo™
Series70-100-HC
Type2-Piece
Body MaterialBronze
Domestic/ImportDomestic
End StyleFNPT
Nominal Size3/4 in
Pressure Rating600 psig CWP
Temperature Rating500 deg F
Actuator TypeLever Operated
MediaWater
Port TypeStandard
Softgoods MaterialMPTFE
Trim MaterialBrass Stem and RPTFE Seat
Ball MaterialChrome Plated Brass
Inlet to Outlet Length3 in
Top to Inlet Center2.12 in
Weight1.39 lbs
Standards ApprovalsASTM B16/B584-C84400,MSS SP-110,CSA B51 CRN OC10908.5C

Item Features

  • Premium materials and heavy duty construction
  • Adjustable stem packing gland
  • Blow-out proof stem
  • Vacuum service to 29 in Hg
  • Steel, zinc plated with vinyl lever and grip
  • ASTM B16 brass retainer
  • ASTM B16 brass gland nut
  • Steel, zinc plated lever nut
  • Hose cap and chain
  • 150 psig saturated steam
  • MPTFE stem packing
