Apollo™ 6PLF-20A-01

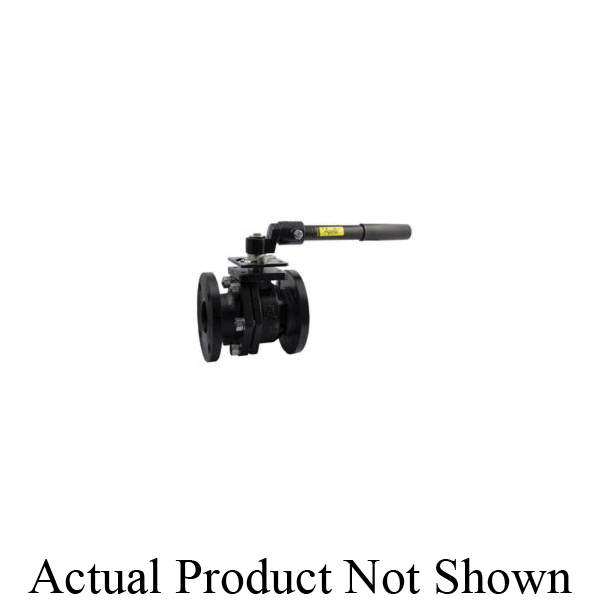

Apollo™ 6PLF20A01 6PLF Ball Valve, 4 in Nominal, Flanged End Style, Cast Iron Body, Full Port, PTFE Softgoods

CBPN:177455

UPC:670750026409

MPN:6PLF-20A-01

Price:
$644.20 / EA
Prop 65:

DESCRIPTION

Apollo™, 6PLF20A01, Ball Valve, Series: 6PLF, 4 in Nominal, Flanged End Style, 200 psi CWP Pressure, 180 deg F, 2500 gpm Flow Rate, Full Port, Lever Operated Actuator, 304 Stainless Steel Ball, 9 in Inlet to Outlet Length, 9 in Top to Inlet Center, Cast Iron Body, 304 Stainless Steel Stem and PTFE Seat Trim, PTFE Softgoods, Epoxy Powder Coated

The Apollo™ 6PLF series class 125 cast iron ball valve offers premium features including FDA epoxy coating, stainless steel ball and stem construction, NSF 61 approval and ANSI 3rd party certification to NSF 372 Lead Free. A compact and cost effective alternative to conventional cast iron gate valves, the 6PLF ball valve is ideal for both potable water and general HVAC applications.

Apollo™ 6PLF20A01 6PLF Ball Valve, 4 in Nominal, Flanged End Style, Cast Iron Body, Full Port, PTFE Softgoods

CBPN:177455

MPN:6PLF-20A-01

UPC:670750026409

Price:
$644.20 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™, 6PLF20A01, Ball Valve, Series: 6PLF, 4 in Nominal, Flanged End Style, 200 psi CWP Pressure, 180 deg F, 2500 gpm Flow Rate, Full Port, Lever Operated Actuator, 304 Stainless Steel Ball, 9 in Inlet to Outlet Length, 9 in Top to Inlet Center, Cast Iron Body, 304 Stainless Steel Stem and PTFE Seat Trim, PTFE Softgoods, Epoxy Powder Coated

The Apollo™ 6PLF series class 125 cast iron ball valve offers premium features including FDA epoxy coating, stainless steel ball and stem construction, NSF 61 approval and ANSI 3rd party certification to NSF 372 Lead Free. A compact and cost effective alternative to conventional cast iron gate valves, the 6PLF ball valve is ideal for both potable water and general HVAC applications.

Specifications

BrandApollo™
Weight74.74lbs
Nominal Size4 in
End StyleFlanged
Pressure Rating200 psi CWP
Body MaterialCast Iron
Port TypeFull
Softgoods MaterialPTFE
Actuator TypeLever Operated
Ball Material304 Stainless Steel
FinishEpoxy Powder Coated
Flow Rate2500 gpm
Inlet to Outlet Length9 in
Manufacturer NameApollo Conbraco
Series6PLF
Temperature Rating180 deg F
Top to Inlet Center9 in
Trim Material304 Stainless Steel Stem and PTFE Seat
ApplicationIdeal For Both Potable Water And General Hvac Applications
Standards and ApprovalsANSI B16.10 | MSS SP-72 | AWWA C507-99 | NSF/ANSI 372 | Federal Specifications WW-V-35 | API 598 | PROP65: Cancer and Reproductive Harm

Item Features

  • A126 class B cast iron body with FDA food grade epoxy powder coat
  • Stainless steel ball and stem
  • ISO 5211 mounting pad for easy actuation
  • Removable handles to fit into areas of limited space
  • Lockable in open or closed position
  • PTFE gasket/packing
