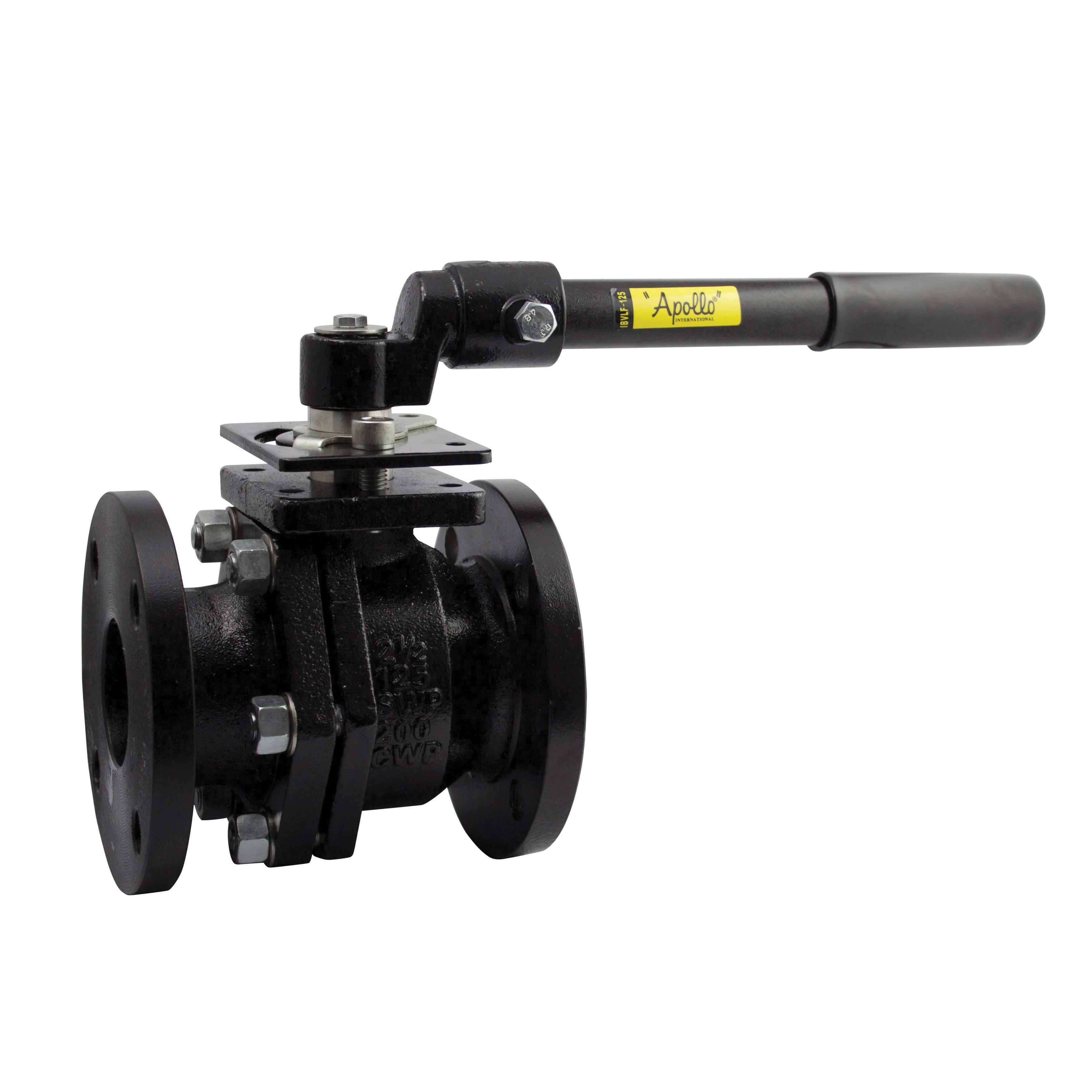

Apollo™ 6PLF20901 6PLF Ball Valve, 2-1/2 in Nominal, Flanged End Style, Cast Iron Body, Full Port, PTFE Softgoods
CBPN: 177452
UPC:670750026485
MPN:6PLF-209-01
DESCRIPTION
Apollo™ 6PLF20901, Ball Valve, Series: 6PLF, 2-1/2 in Nominal, Flanged End Style, 200 psi CWP Pressure, 180 deg F, Full Port, Lever Operated Actuator, 304 Stainless Steel Ball, 7-1/2 in Inlet to Outlet Length, 7.42 in Top to Inlet Center, Cast Iron Body, 304 Stainless Steel Stem and PTFE Seat Trim, PTFE Softgoods
New from Apollo™ International®, the 6PLF Series Class 125 cast iron ball valve offers premium features including FDA epoxy coating, stainless steel ball and stem construction, NSF 61 approval and ANSI 3rd party certification to NSF -372 Lead Free. A compact and cost effective alternative to conventional cast iron gate valves, the 6PLF ball valve is ideal for both potable water and general HVAC applications.
Apollo™ 6PLF20901 6PLF Ball Valve, 2-1/2 in Nominal, Flanged End Style, Cast Iron Body, Full Port, PTFE Softgoods
CBPN: 177452
MPN:6PLF-209-01
UPC:670750026485
DESCRIPTION
Apollo™ 6PLF20901, Ball Valve, Series: 6PLF, 2-1/2 in Nominal, Flanged End Style, 200 psi CWP Pressure, 180 deg F, Full Port, Lever Operated Actuator, 304 Stainless Steel Ball, 7-1/2 in Inlet to Outlet Length, 7.42 in Top to Inlet Center, Cast Iron Body, 304 Stainless Steel Stem and PTFE Seat Trim, PTFE Softgoods
New from Apollo™ International®, the 6PLF Series Class 125 cast iron ball valve offers premium features including FDA epoxy coating, stainless steel ball and stem construction, NSF 61 approval and ANSI 3rd party certification to NSF -372 Lead Free. A compact and cost effective alternative to conventional cast iron gate valves, the 6PLF ball valve is ideal for both potable water and general HVAC applications.
Specifications
Item Features
- A126 class B cast iron body with FDA food grade epoxy powder coat
- ISO 5211 mounting pad for easy actuation
- Removable handles to fit into areas of limited space
- Full port through 6 in
- Lockable in open or closed position
- Lever handles are standard 2 in to 6 in
- Gear operators are standard 8 in and 10 in
- Vacuum service to 29 in Hg
- A194 2H body nut
- PTFE gasket body
- Stainless steel packing follower
- Carbon steel gland plate/stem indicator/gland stud/handle gasket/handle stop screw/handle
- Stainless steel indicator follower
- Ductile iron handle bracket
- Vinyl foam rubber handle grip
