Apollo™ 6PLF-200-01

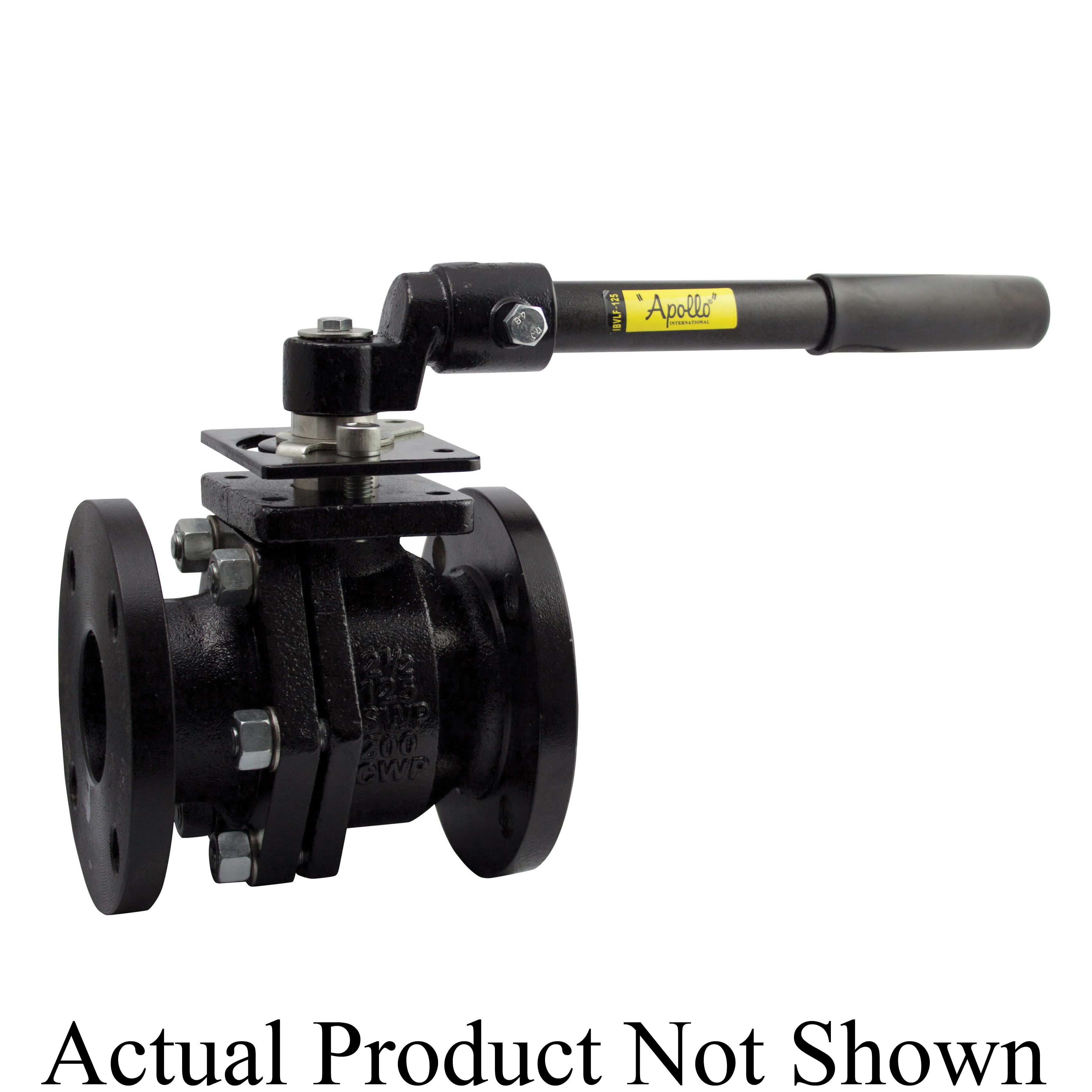

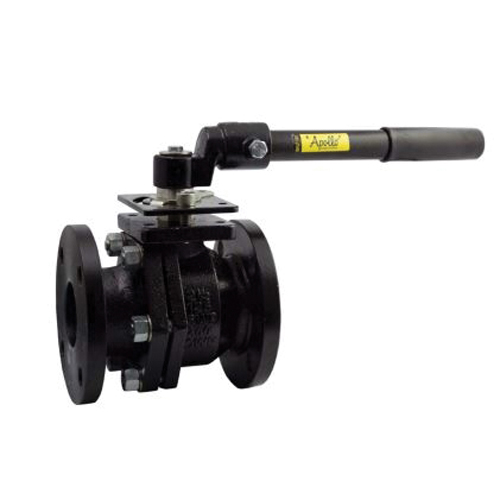

Apollo™ 6PLF20001 6PLF Ball Valve, 3 in Nominal, Flanged End Style, 125 lb, Cast Iron Body, Full Port, PTFE Gasket Body/Packing Softgoods

CBPN:177454

UPC:670750026454

MPN:6PLF-200-01

Price:
$454.26 / EA
Prop 65:

DESCRIPTION

Apollo™, 6PLF20001, Ball Valve, Series: 6PLF, 3 in Nominal, Flanged End Style, 200 psi CWP Pressure, 125 lb Pressure Class, 353 deg F, Full Port, Lever Handle Actuator, 304 Stainless Steel Ball, 8 in Inlet to Outlet Length, 8.17 in Top to Inlet Center, Cast Iron Body, PTFE Seat/304 Stainless Steel Stem Trim, PTFE Gasket Body/Packing Softgoods, Epoxy Powder Coated

The Apollo International™ 6PLF Series Class 125 Cast Iron Ball Valve offers premium features including FDA epoxy coating, stainless steel ball and stem construction, NSF 61 approval and ANSI 3rd party certification to NSF 372 Lead Free. A compact and cost effective alternative to conventional cast iron gate valves, the 6PLF ball valve is ideal for both potable water and general HVAC applications.

Apollo™ 6PLF20001 6PLF Ball Valve, 3 in Nominal, Flanged End Style, 125 lb, Cast Iron Body, Full Port, PTFE Gasket Body/Packing Softgoods

CBPN:177454

MPN:6PLF-200-01

UPC:670750026454

Price:
$454.26 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™, 6PLF20001, Ball Valve, Series: 6PLF, 3 in Nominal, Flanged End Style, 200 psi CWP Pressure, 125 lb Pressure Class, 353 deg F, Full Port, Lever Handle Actuator, 304 Stainless Steel Ball, 8 in Inlet to Outlet Length, 8.17 in Top to Inlet Center, Cast Iron Body, PTFE Seat/304 Stainless Steel Stem Trim, PTFE Gasket Body/Packing Softgoods, Epoxy Powder Coated

The Apollo International™ 6PLF Series Class 125 Cast Iron Ball Valve offers premium features including FDA epoxy coating, stainless steel ball and stem construction, NSF 61 approval and ANSI 3rd party certification to NSF 372 Lead Free. A compact and cost effective alternative to conventional cast iron gate valves, the 6PLF ball valve is ideal for both potable water and general HVAC applications.

Specifications

BrandApollo™
Weight48.5lbs
Nominal Size3 in
End StyleFlanged
Pressure Class125 lb
Pressure Rating200 psi CWP
Body MaterialCast Iron
Port TypeFull
Softgoods MaterialPTFE Gasket Body/Packing
Actuator TypeLever Handle
Ball Material304 Stainless Steel
FinishEpoxy Powder Coated
Inlet to Outlet Length8 in
Manufacturer NameApollo Conbraco
Series6PLF
Temperature Rating353 deg F
Top to Inlet Center8.17 in
Trim MaterialPTFE Seat/304 Stainless Steel Stem
ApplicationBoth Potable Water And General Hvac Applications
Standards and ApprovalsANSI B16.10 | AWWA C507-99 | API 598 | Federal Specifications WW-V-35 | MSS SP-72 | NSF/ANSI 61/372 | PROP65: Cancer and Reproductive Harm

Item Features

  • ISO 5211 mounting pad for easy actuation
  • Removable handles to fit into areas of limited space
  • Lockable in open or closed position
  • Lever handles are standard 2 to 6 in
