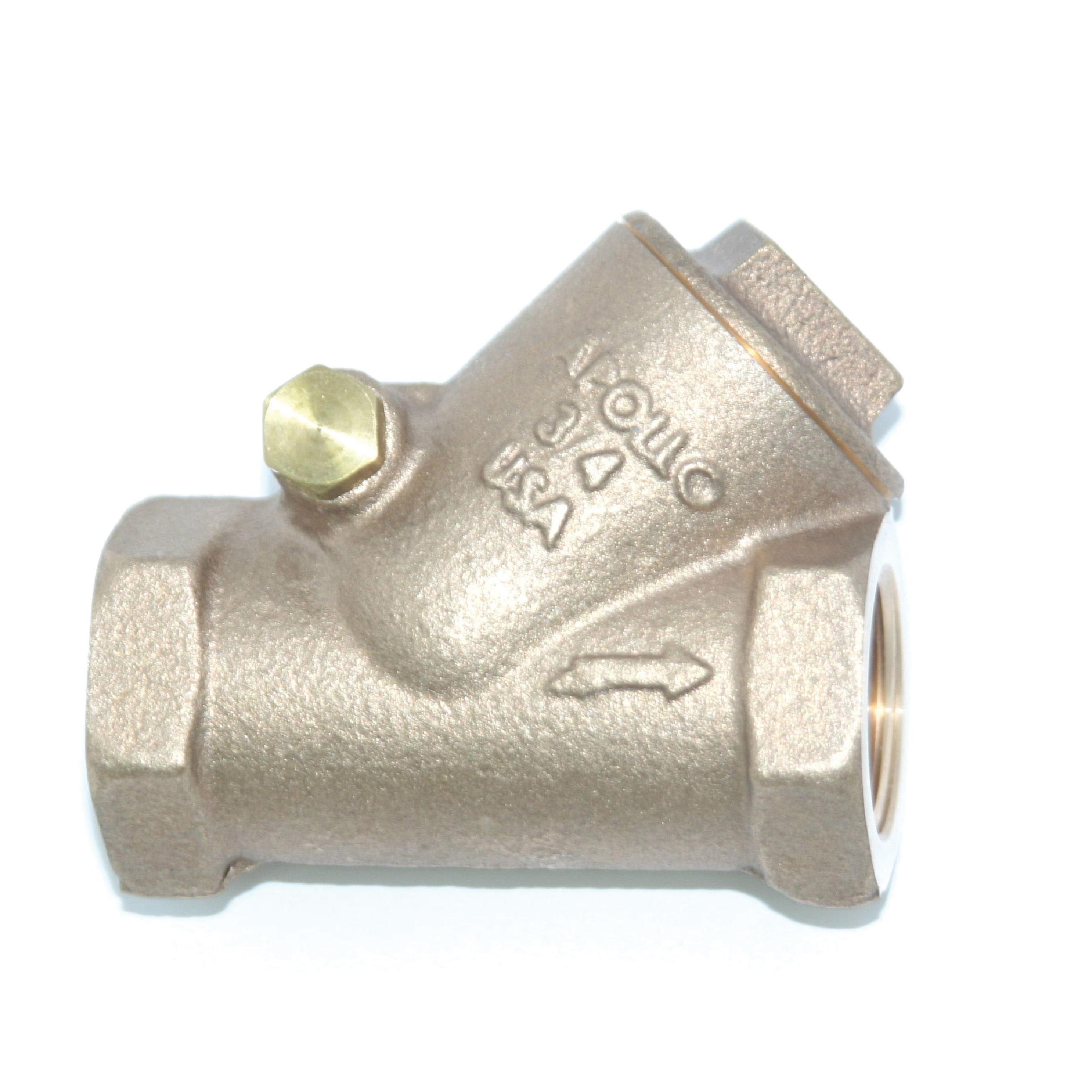

Apollo™ 61YLF19401 161T-LF Y-Pattern Swing Check Valve, 3/4 in Nominal, NPT End Style, 125 lb, Bronze Body, Domestic
CBPN:172842
UPC:670750685996
MPN:61YLF-194-01
Price:
$111.97 / EA
Prop 65:
DESCRIPTION
Apollo™, 61YLF19401, Swing Check Valve, Y-Pattern, Series: 161T-LF, 3/4 in Nominal, NPT End Style, 200 psi CWP Pressure, 125 lb Pressure Class, -20 to 406 deg F, Yes Low Lead Compliance, 12 gpm Flow Rate, Media: Water, 2.94 in Inlet to Outlet Length, Bronze Body, Brass Trim, 1.9 in H Dimensions, Domestic
The lead free Apollo™ Model 161T-LF (61YLF Series) Swing Check provides a reliable, long lasting, Made in the USA alternative to globally sourced check valves for potable water service. These valves are cast, machined, assembled, and tested in South Carolina using proven ASTM quality materials. The Apollo™ Swing Check may be installed in either horizontal or vertical orientation with upward flow.
Apollo™ 61YLF19401 161T-LF Y-Pattern Swing Check Valve, 3/4 in Nominal, NPT End Style, 125 lb, Bronze Body, Domestic
CBPN:172842
MPN:61YLF-194-01
UPC:670750685996
Price:
$111.97 / EA
Prop 65:
DESCRIPTION
Apollo™, 61YLF19401, Swing Check Valve, Y-Pattern, Series: 161T-LF, 3/4 in Nominal, NPT End Style, 200 psi CWP Pressure, 125 lb Pressure Class, -20 to 406 deg F, Yes Low Lead Compliance, 12 gpm Flow Rate, Media: Water, 2.94 in Inlet to Outlet Length, Bronze Body, Brass Trim, 1.9 in H Dimensions, Domestic
The lead free Apollo™ Model 161T-LF (61YLF Series) Swing Check provides a reliable, long lasting, Made in the USA alternative to globally sourced check valves for potable water service. These valves are cast, machined, assembled, and tested in South Carolina using proven ASTM quality materials. The Apollo™ Swing Check may be installed in either horizontal or vertical orientation with upward flow.
Specifications
Brand: Apollo™
Weight: 1.06lbs
Body Material: Bronze
End Style: NPT
Flow Rate: 12 gpm
Nominal Size: 3/4 in
Series: 161T-LF
Temperature Rating: -20 to 406 deg F
Type: Y-Pattern
Pressure Rating: 200 psi CWP
Dimensions: 1.9 in H
Media: Water
Pressure Class: 125 lb
Low Lead Compliance: Yes
Trim Material: Brass
Inlet to Outlet Length: 2.94 in
Manufacturer Name: Apollo Conbraco
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ARRA Compliant | ASTM B584-C89836 Body | ASME B1.20.1 | CSA B51 CRN 0C14667 | NSF/ANSI 372 | MSS SP-80 | MSS SP-139 | PROP65: Cancer and Reproductive Harm
Item Features
- Renewable bronze seat disc
- Cast, machined and assembled in the USA
