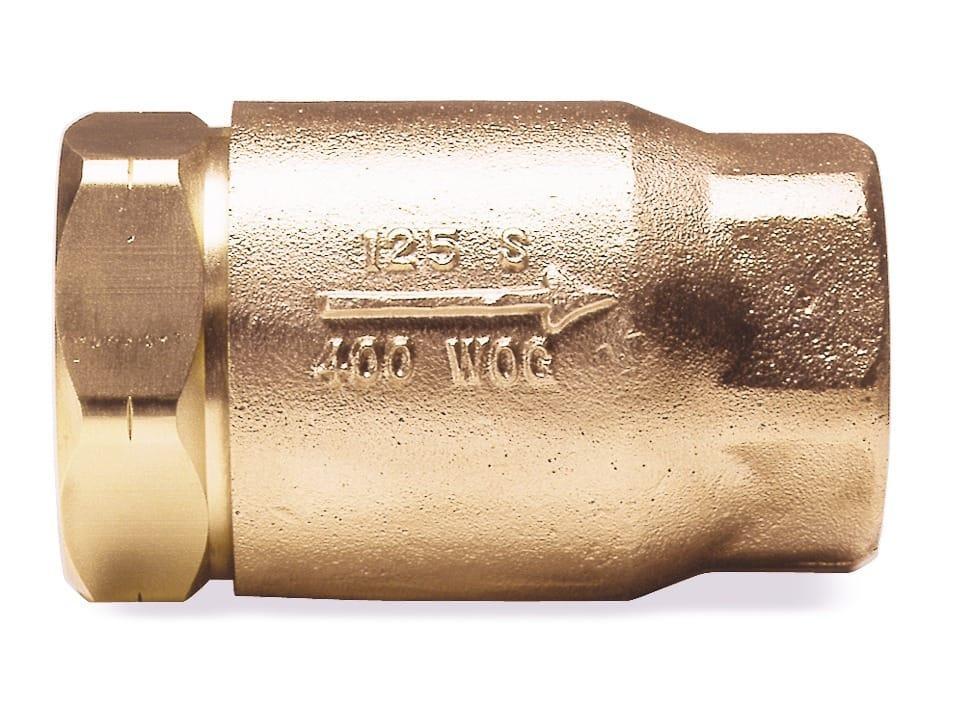

Apollo™ 61LF50101

Apollo™ Ball Cone® 61LF-501-01 61LF-500, CVBE14LF Soft Seated In-Line Check Valve, 1/4 in Nominal, Female x FNPT End Style, Low Lead Compliance: Yes, 0.85 gpm Flow Rate, Lead Free Bronze Body, Domestic

CBPN: 247505

UPC:670750346361

MPN:61LF50101

Price:
$104.16 / EA
Prop 65:

DESCRIPTION

Apollo™ 61LF50101, In-Line Check Valve, Soft Seated, Series: 61LF-500, 1/4 in Nominal, FNPT x FNPT End Style, 400 psi CWP Pressure, 350 deg F, Yes Low Lead Compliance, 0.85 gpm Flow Rate, Media: Gas/Steam/Water, Spring Actuator, 2.06 in Inlet to Outlet Length, Bronze Body, EPDM/Stainless Steel Trim, Domestic

Apollo™ CVB-LF (61LF Series) Ball Cone® Check Valves offer reliable protection against reverse flow and exceptional resistance to chemicals and corrosion using proven ASTM grade lead free materials. They are well-suited for a broad range of applications, including saturated steam and chemical service. They may be installed in both horizontal and vertical orientation with upward flow. Proudly made in the USA.

Apollo™ Ball Cone® 61LF-501-01 61LF-500, CVBE14LF Soft Seated In-Line Check Valve, 1/4 in Nominal, Female x FNPT End Style, Low Lead Compliance: Yes, 0.85 gpm Flow Rate, Lead Free Bronze Body, Domestic

CBPN: 247505

MPN:61LF50101

UPC:670750346361

Price:
$104.16 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ 61LF50101, In-Line Check Valve, Soft Seated, Series: 61LF-500, 1/4 in Nominal, FNPT x FNPT End Style, 400 psi CWP Pressure, 350 deg F, Yes Low Lead Compliance, 0.85 gpm Flow Rate, Media: Gas/Steam/Water, Spring Actuator, 2.06 in Inlet to Outlet Length, Bronze Body, EPDM/Stainless Steel Trim, Domestic

Apollo™ CVB-LF (61LF Series) Ball Cone® Check Valves offer reliable protection against reverse flow and exceptional resistance to chemicals and corrosion using proven ASTM grade lead free materials. They are well-suited for a broad range of applications, including saturated steam and chemical service. They may be installed in both horizontal and vertical orientation with upward flow. Proudly made in the USA.

Specifications

BrandApollo™
Weight0.38 lbs
Nominal Size1/4 in
End StyleFNPT
Low Lead ComplianceYes
Flow Rate0.85 gpm
Body MaterialLead Free Bronze
Actuator TypeSpring
Inlet to Outlet Length2.06 in
Manufacturer NameApollo Conbraco
MediaGas/Steam/Water
Pressure Rating400 psi CWP
Series61LF-500
Temperature Rating350 deg F
Trim MaterialEPDM/Stainless Steel
TypeSoft Seated
ApplicationBroad Range of Applications, Including Saturated Steam and Chemical Service
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsAISI Spring | ASTM B584-UNS C84400 Body | ARRA Compliant | Canadian Registration# 0C11218.5C | Complies with CA AB 1953 and VT S.152 | Complies with Federal Public Law 111-380 | ANSI 3rd Party Approved | NSF/ANSI 61 Water Quality | NSF/ANSI 372 Lead-Free | RoHS Compliant | PROP65: Cancer and Reproductive Harm

Item Features

  • Bubble-tight shut-off, ideally suited for gaseous service
  • Straight-through flow minimizes pressure loss
  • EPDM seat/stainless steel spring
  • 0.5 psig cracking pressure
  • Lead free - The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
