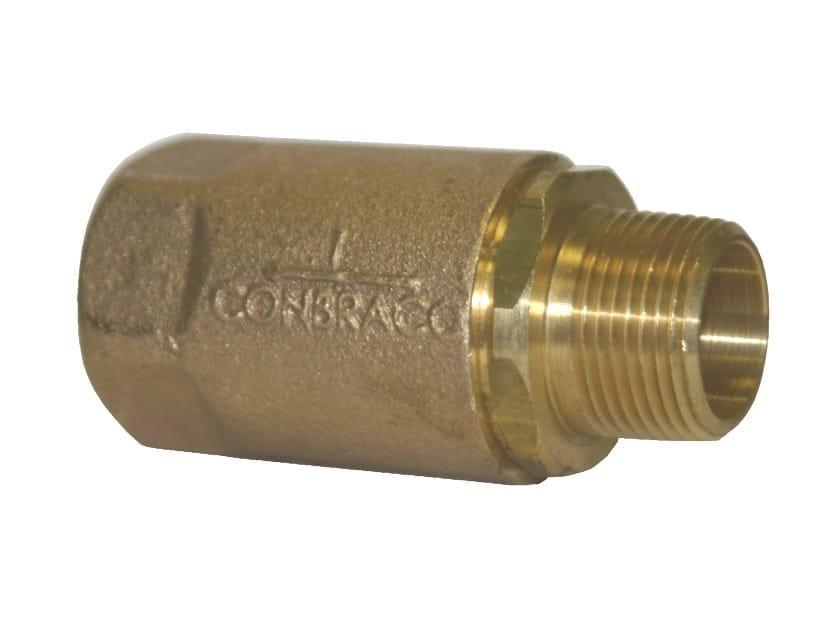

Apollo™ 6120701 61-200 Standard In-Line Ball Cone Check Valve, 1-1/2 in Nominal, MNPT x FNPT End Style, 65 gpm Flow Rate, Bronze Body, Domestic
CBPN: 191204
UPC:670750632440
MPN:61-207-01
Price:
$384.99 / EA
Prop 65:
DESCRIPTION
Apollo™ 6120701, In-Line Ball Cone Check Valve, Standard, Series: 61-200, 1-1/2 in Nominal, MNPT x FNPT End Style, 400 psi CWP Pressure, 406 deg F, 65 gpm Flow Rate, Media: Liquid, Spring-Loaded Latch-Lock Handle Actuator, Bronze Body, Brass Trim, 2.81 in H Dimensions, Domestic
The Apollo™ CVB Ball Cone® check valves offer reliable protection against reverse flow and exceptional resistance to chemicals and corrosion using proven ASTM quality materials made in the USA.
Apollo™ 6120701 61-200 Standard In-Line Ball Cone Check Valve, 1-1/2 in Nominal, MNPT x FNPT End Style, 65 gpm Flow Rate, Bronze Body, Domestic
CBPN: 191204
MPN:61-207-01
UPC:670750632440
Price:
$384.99 / EA
Prop 65:
DESCRIPTION
Apollo™ 6120701, In-Line Ball Cone Check Valve, Standard, Series: 61-200, 1-1/2 in Nominal, MNPT x FNPT End Style, 400 psi CWP Pressure, 406 deg F, 65 gpm Flow Rate, Media: Liquid, Spring-Loaded Latch-Lock Handle Actuator, Bronze Body, Brass Trim, 2.81 in H Dimensions, Domestic
The Apollo™ CVB Ball Cone® check valves offer reliable protection against reverse flow and exceptional resistance to chemicals and corrosion using proven ASTM quality materials made in the USA.
Specifications
Brand: Apollo™
Weight: 3.94 lbs
Nominal Size: 1-1/2 in
End Style: MNPT x FNPT
Flow Rate: 65 gpm
Body Material: Bronze
Actuator Type: Spring-Loaded Latch-Lock Handle
Dimensions: 2.81 in H
Manufacturer Name: Apollo Conbraco
Media: Liquid
Pressure Rating: 400 psi CWP
Series: 61-200
Temperature Rating: 406 deg F
Trim Material: Brass
Type: Standard
Application: Broad Range of Applications, Including Saturated Steam and Chemical Service
Warranty: 5 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ARRA Compliant | ASTM B16 Stem | CRN 0C11218.5C | UNS C84400 Body | PROP65: Cancer and Reproductive Harm
Item Features
- Tight shut-off with liquid media
- Flow straight-through design efficiency
- RPTFE ball cone for chemical resistance
- 100% factory tested
- 0.5 psig cracking pressure
