Apollo™ 36LF20501

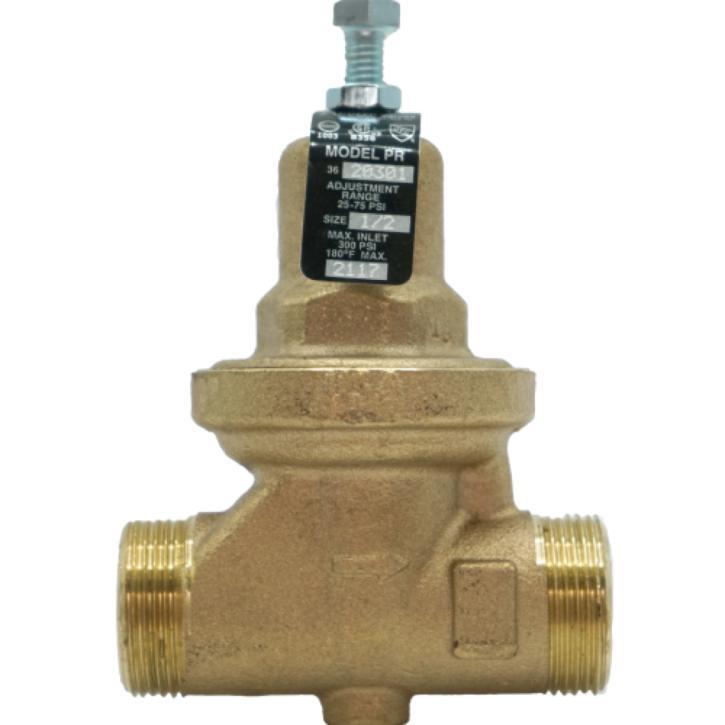

Apollo™ 36LF-205-01 Direct Acting Pressure Reducing Valve, 1 in, FNPT End Style, 25 to 75 psig, Bronze Body, Domestic

CBPN: 247067

UPC:670750971587

MPN:36LF20501

Price:
$480.65 / EA
Prop 65:

DESCRIPTION

Apollo™ 36LF20501, Pressure Reducing Valve, Direct Acting, Series: 36LF, 1 in Nominal, No Union NPT End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 6-3/8 in Inlet to Outlet Length, Bronze Body, EPDM Seat Disc/Polypropylene Seal/Nitrile O-Ring Softgoods, 3-3/8 in D x 6-7/8 in H Dimensions, Domestic

Apollo™ Model PR (36 Series) Pressure Reducing Valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a bronze body and stainless steel strainer.

Apollo™ 36LF-205-01 Direct Acting Pressure Reducing Valve, 1 in, FNPT End Style, 25 to 75 psig, Bronze Body, Domestic

CBPN: 247067

MPN:36LF20501

UPC:670750971587

Price:
$480.65 / EA

Prop 65:
Apollo Valve Logo

DESCRIPTION

Apollo™ 36LF20501, Pressure Reducing Valve, Direct Acting, Series: 36LF, 1 in Nominal, No Union NPT End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 6-3/8 in Inlet to Outlet Length, Bronze Body, EPDM Seat Disc/Polypropylene Seal/Nitrile O-Ring Softgoods, 3-3/8 in D x 6-7/8 in H Dimensions, Domestic

Apollo™ Model PR (36 Series) Pressure Reducing Valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a bronze body and stainless steel strainer.

Specifications

BrandApollo™
Weight4.5 lbs
Nominal Size1 in
End StyleFNPT
Pressure Range25 to 75 psi
Body MaterialBronze
Dimensions3-3/8 in D x 6-7/8 in H
Inlet to Outlet Length6-3/8 in
Manufacturer NameApollo Conbraco
MediaWater
Series36LF
Softgoods MaterialEPDM Seat Disc/Polypropylene Seal/Nitrile O-Ring
Temperature Rating33 to 180 deg F
Trim MaterialEPDM/Brass
TypeDirect Acting
ApplicationResidential and Commercial Applications
Warranty5 Years
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASSE 1003 | ASTM B584 Bronze Body/Cover | ASTM B16 Stem | CSA B356 | FDA Approved | UPC Listed | PROP65: Cancer and Reproductive Harm

Item Features

  • Corrosion resistant bronze body and bonnet
  • 100% factory tested, preset to 50 psi
  • Integral stainless steel strainer
  • Balanced piston design
  • Internal thermal expansion by-pass
  • Nitrile O-ring
  • EPDM seat disc/brass stem
  • No guage
  • No option
